Feature

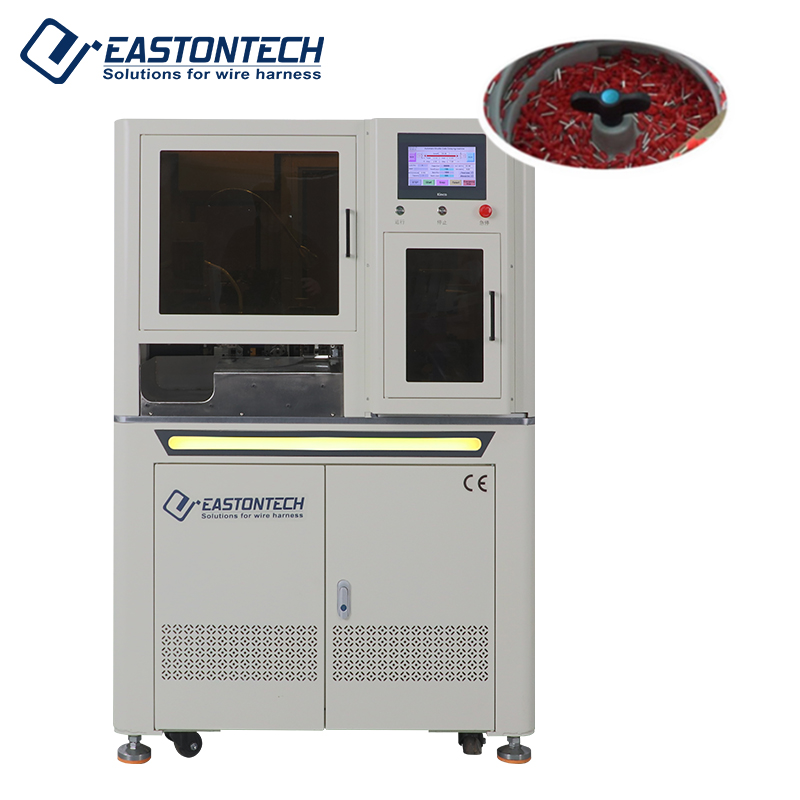

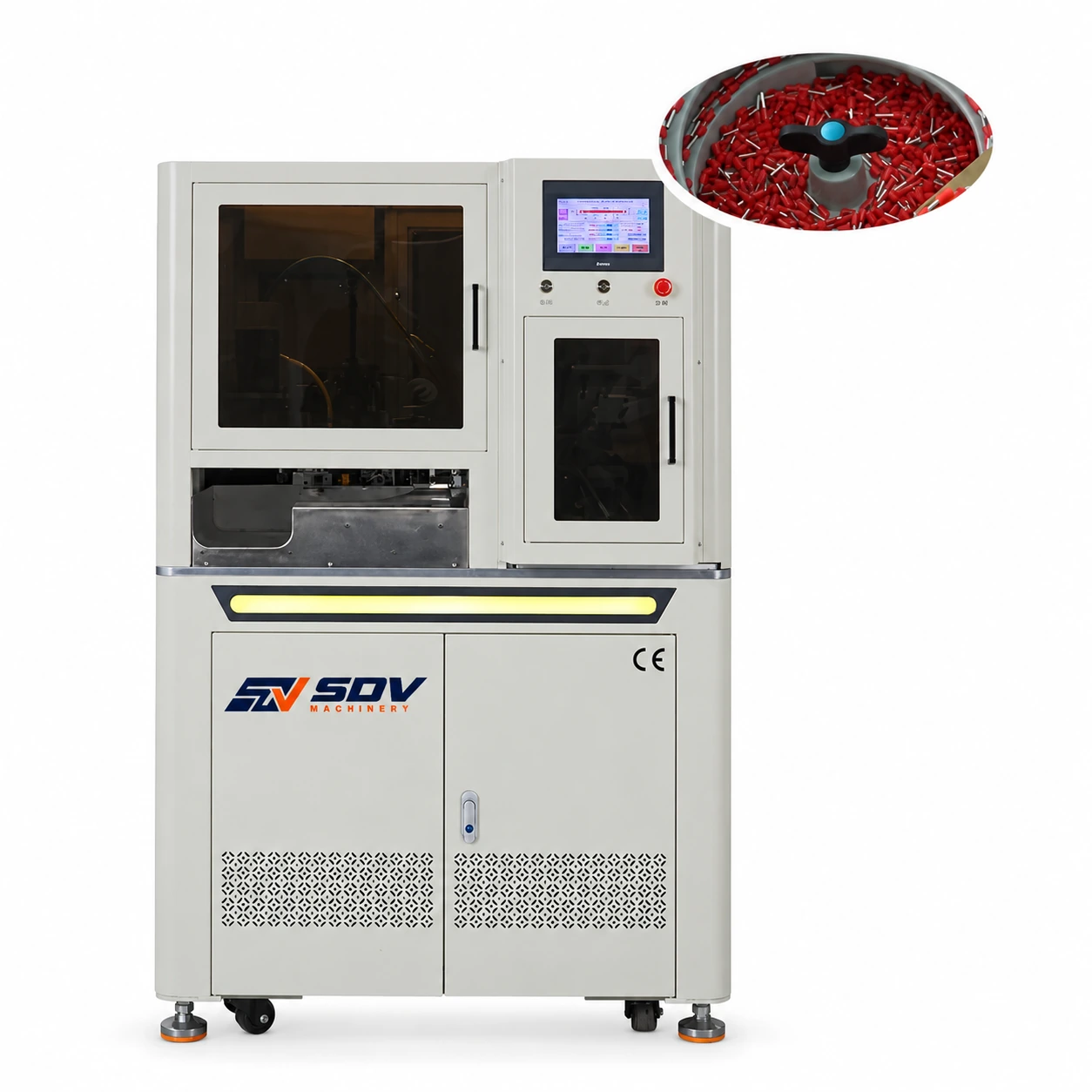

● This series is double-side automatic crimping machine for loose round ferrules terminals.
● The terminals are automatically fed through the vibrating plate.
● This machine can cut the wire to a fixed length, strip and twist the wire at both ends, and crimp the terminal.
● For the closed terminal, the function of rotating and twisting the wire can also be added.
● Twist the copper wire and then insert it into the inner hole of the terminal for crimpinq, which can effectively prevent the reverse wire phenomenon.
● The wire inlet is equipped with 3 sets of straighteners, which can automatically straighten the wire and improve the stability of the machine operation.
● Multiple sets of wire feeding wheels can jointly feed the wire to prevent the wire from slipping and improve the wire feeding accuracy.
● The terminal machine is integrally formed with nodular cast iron, the whole machine has strong rigidity and the crimping size is stable.
● Wire size 0.5-4 mm² no need to change viberation plate.
