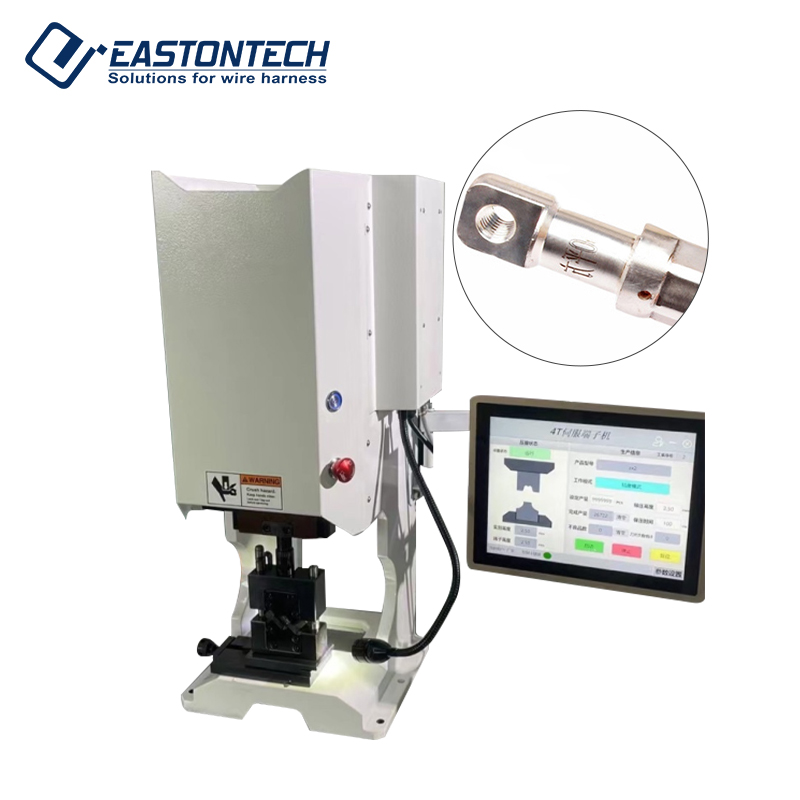

2T-10T Servo Motor Terminal Crimping Machine EW-5140+S

Price of the selected optionon request
Delivery options

Description

Feature

● This machine is mainly aimed at the pressing of the large square pipe terminal.

● The industrial control chip is combined with high precision servo drive, so that the machine can run steadily.

● PLC control system, store the program for different size wire,directly use by choosing the program number, no need manual adjustment.

Specifications

Model
Motor Power | Stroke | Crimping Force | Gross Weight | Packing Size | Power Supply
EW-5140+2TS
750W | 30/40mm | 2T / 20KN | 38KGS | 280*240*600mm | 220V,50HZ/60HZ
EW-5140+3TS
1500W | 30/40mm | 3T / 30KN | 62KGS | 350*320*640mm | 220V,50HZ/60HZ
EW-5140+4TS
1500W | 30/40mm | 4T / 40KN | 65KGS | 350*320*640mm | 220V,50HZ/60HZ
EW-5140+6TS
1500W | 30/40mm | 6T / 60KN | 132KGS | 400*380*740mm | 220V,50HZ/60HZ
EW-5140+8TS
2300W | 30/40mm | 8T / 80KN | 135KGS | 400*380*740mm | 380V,50HZ
EW-5140+10TS
2300W | 30/40mm | 10T/100KN | 138KGS | 400*380*740mm | 380V,50HZ
Application for 2T-10T Servo Motor Terminal Crimping Machine EW-5140+S
