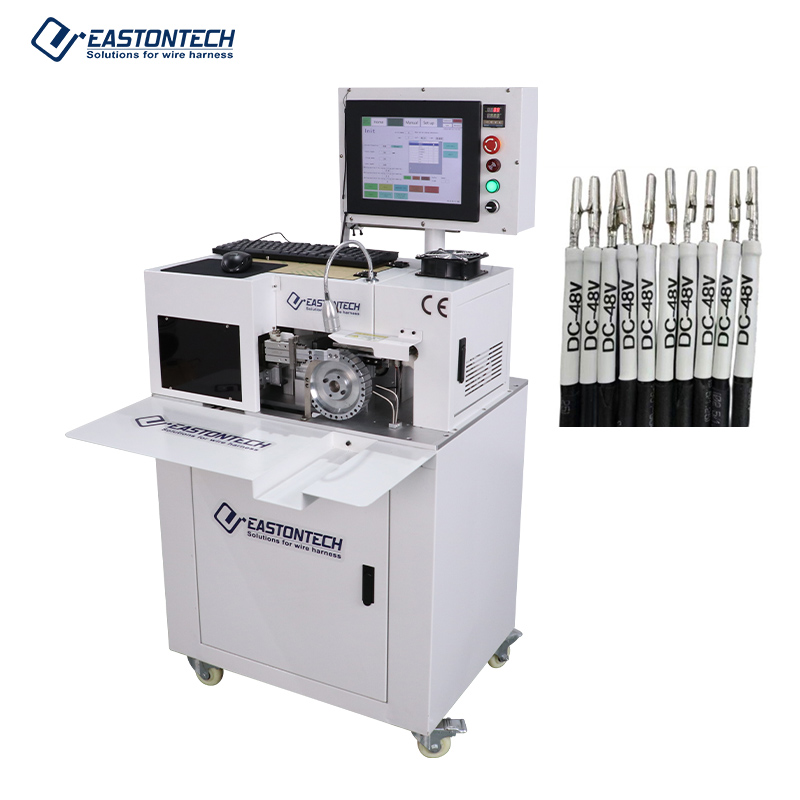

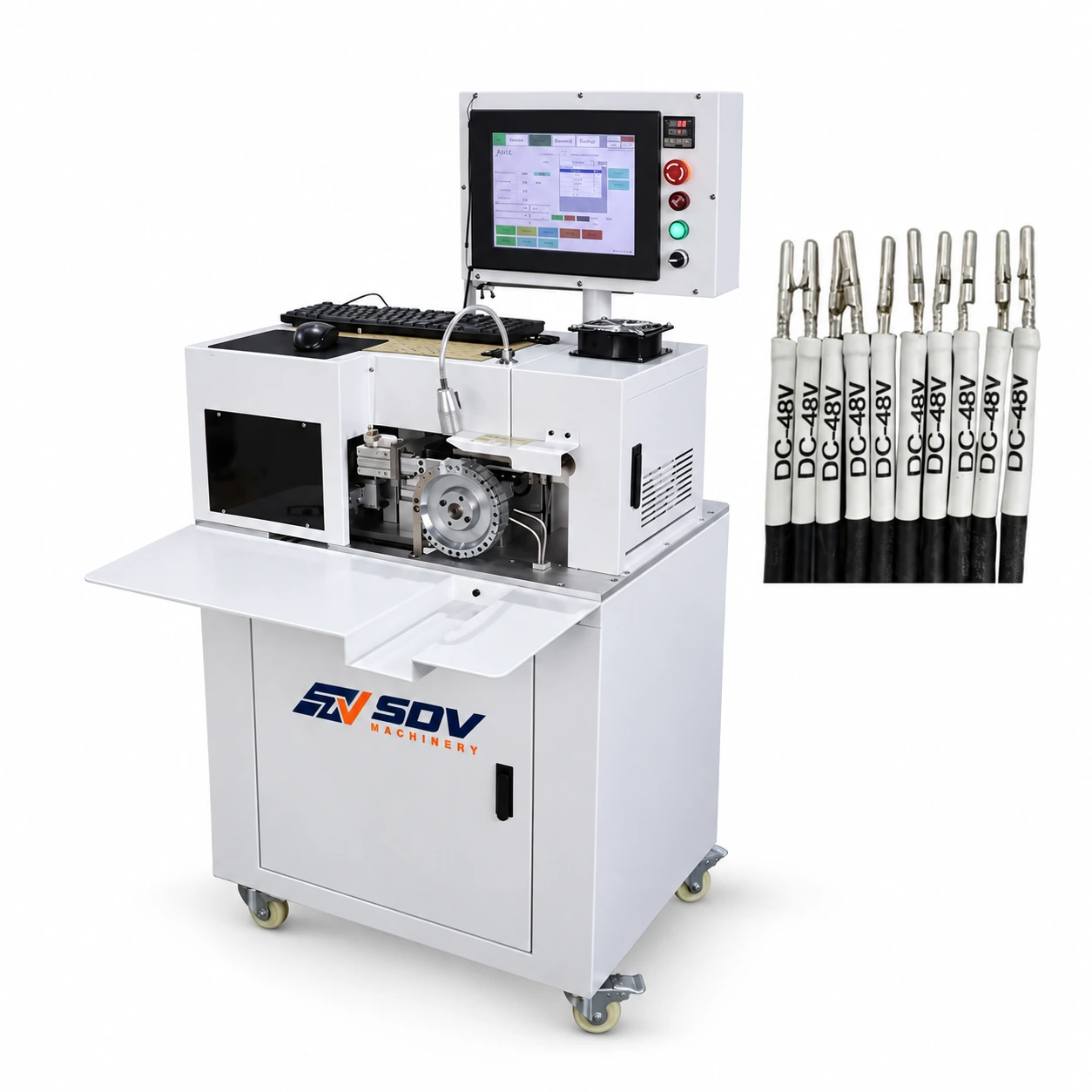

Online tube marking and heat shrinking machine EW-1920+P

Price of the selected optionon request
Delivery options

Description

Feature

● The automated PLC industrial control panel touches the industrial computer control circuit, which is simple and convenient to operate and has good working stability.

● The entire roll of heat-shrinkable tube is automatically fed, printed, cut and heat-shrunk, eliminating the tedious process of manual threading and baking.

● The efficiency is about 1,200 heat shrinkable tubes per hour (capacity depends on the product), saving time and effort and improving work efficiency.

● Customized according to casing and product.

Specifications

Model
EW-1920+P
Tube outer diameter
Customized
Tube length
Customized
Power
800W
Voltage
110/220 V (50 - 60 Hz)
Positioning accuracy
±0.2mm
Cutting accuracy
±0.3mm
Weight
120 KGS
Dimension
700 * 800 *1450 mm
Heating temperature
0℃-380℃ (adjusted by thermostat)
Productivity
700-1200pcs/hour(according to tube)
Voltage
220V/110V
Frequency
50/60HZ
Operating temperature
0℃-50℃
Display
12-inch multi-point capacitive screen
Operating cycle
2.5 seconds
System control method
PLC and IPC
Heat shrinkage tube size
5.0/2.5, 6.5/3.25(can be customized)
Application for Online tube marking and heat shrinking machine EW-1920+P
