Wire Processing and Electrical Installation Equipment

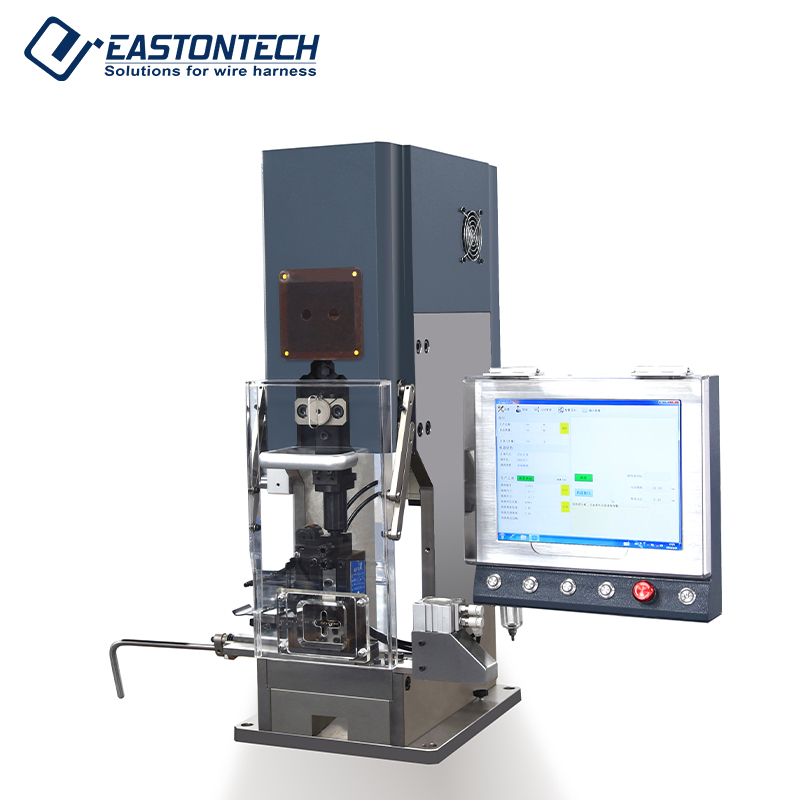

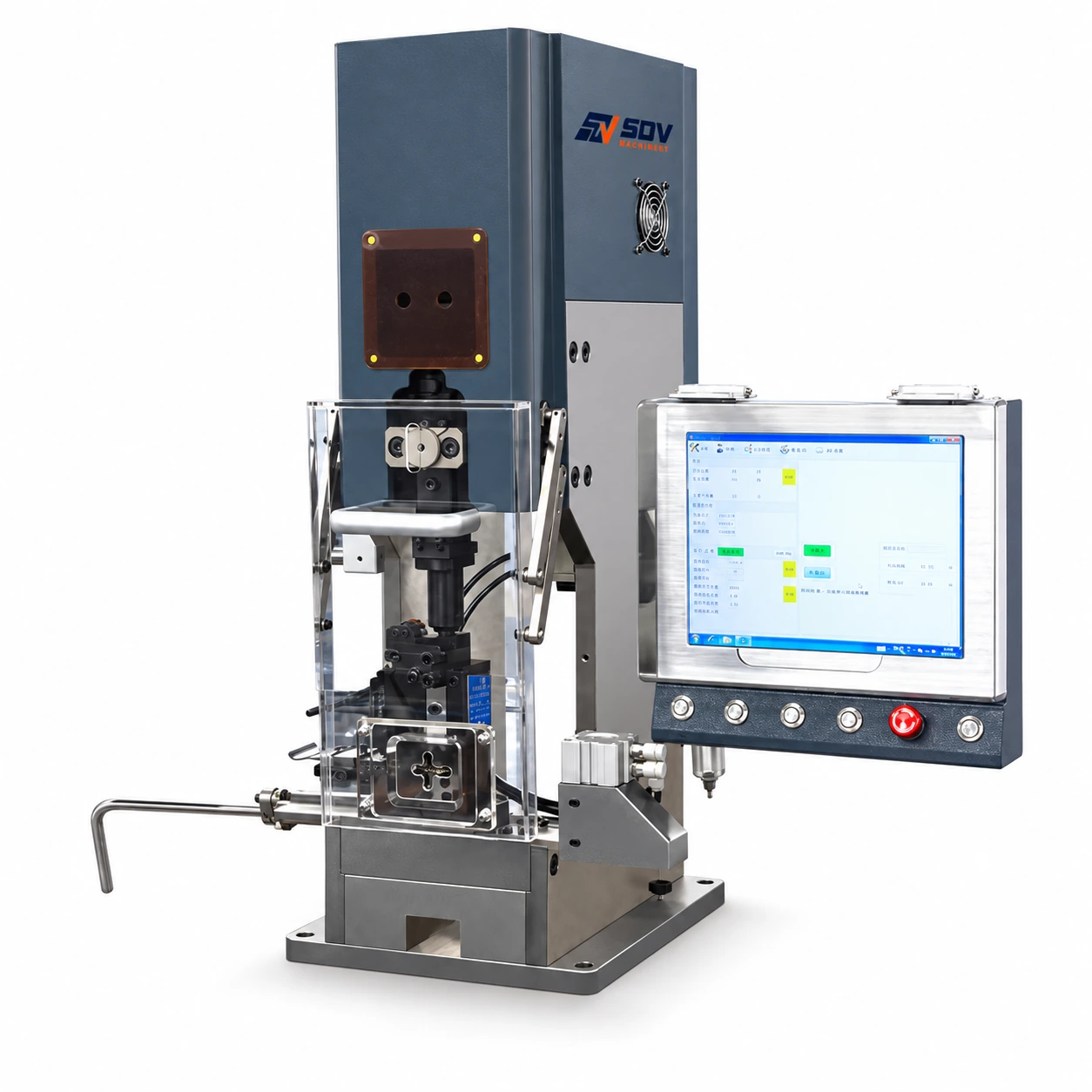

Servo Motor Terminal Crimping Machine 4T EW-5290

Price of the selected optionon request
Delivery options

Description

Feature

● This machine is mainly aimed at the pressing of the large square pipe terminal.

● The industrial control chip is combined with high precision servo drive, so that the machine can run steadily.

● PLC control system, store the program for different size wire,directly use by choosing the program number, no need manual adjustment.

Specifications

Model
EW-5290
Power
220V 50HZ 40Kw
Stroke
30mm(Japan)/40mm(EU)
Wire pressure
4T
Max enclosed height
119.7mm(Japan)/135.78mm(EU)
Automatic lifting range
2mm
Protective cover
Carbon steel plate and white transparent acrylic
Application for Servo Motor Terminal Crimping Machine 4T EW-5290
