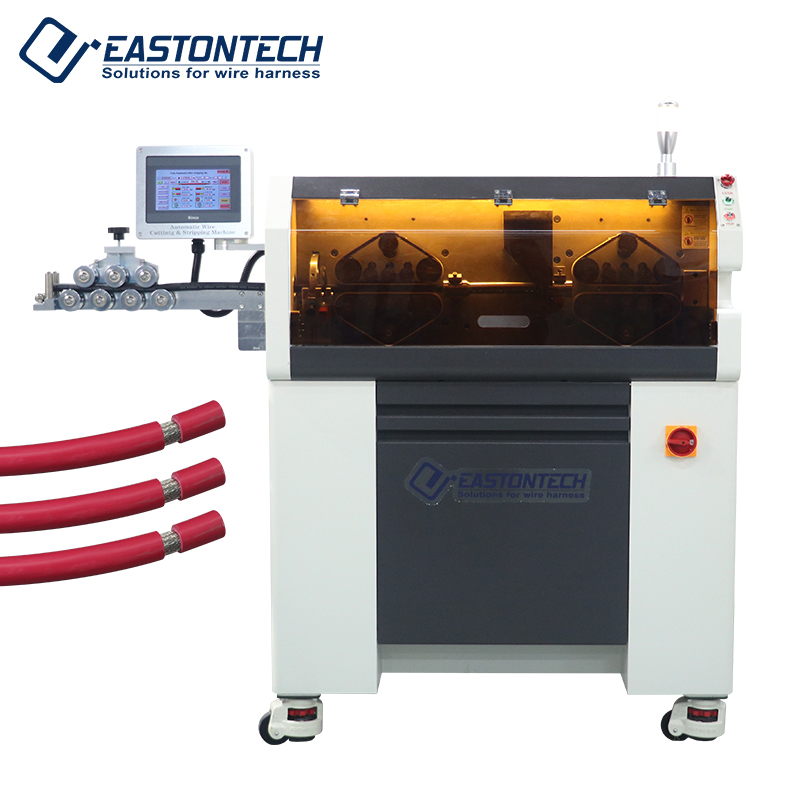

Wire cutting stripping machine(25-120 mm²) EW-3085

Price of the selected optionon request
Delivery options

Description

Feature

● Built-in take-off robot device.

● The round sheath wire is cut off at one time, and the double ends are stripped inside and outside.

● Full touch 7-inch LCD screen.

● Low noise hybrid subdivision driver.

● One-key correction of wire length error.

● Belt-type wire feeding, no indentation on the surface.

Specifications

Model
EW-3085
Wire diameter
12-24mm
Wire range
25-120mm²
Cutting length
0.1mm-99999.9mm
Tube diameter
12-14-16-18-20-22-24
Stripping length
Stripping head:0.1-200mm Stripping tail: 0.1-70mm
Stripping accuracy
Silent hybrid stepper motor 0.01mm
Intermediate strip
16 (can be customized)
Capacity
900-1300 pcs / h
Blade material
Imported tungsten steel / high speed steel
Power
AC110V/220V 50/60HZ
Dimension
1005mm * 580mm * 1225mm
Weight
280kgs
Remark function
Automatic entry / exit, timing start, jog adjustment
Power
3.8KW
Air supply
0.5-0.8 Mpa.
Program Save
0-99
Application for Wire cutting stripping machine(25-120 mm²) EW-3085
