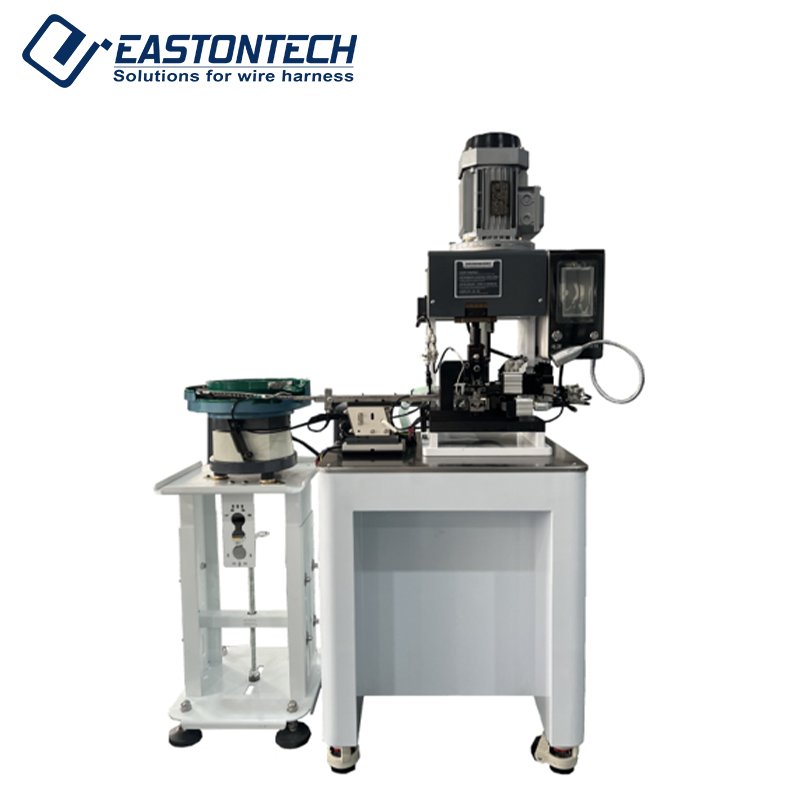

Loose terminal wire stripping and crimping machine EW-5370

Price of the selected optionon request
Delivery options

Description

Feature

● The wire stripping action of the machine is driven by a cylinder, with fast action speed and accurate positioning.

● It adopts centrifugal vibration plate, automatic loading of granular terminals, and variable frequency adjustment, saving time and effort.

● The feeding track is controlled by infrared rays. When the track is full of materials, the vibrating plate stops loading.

Specifications

Model
EW-5370
Power Supply
110/220V/50/60Hz
Crimping force
3T/4T
Crimping terminal
Loose type terminal
Crimping stroke
35mm
Air Source
0.5~0.6mpa
Applicable wire Diameter
AWG14#-AWG32#
Stripping length
1.0~8.0mm
Stripping error
0.05~0.1mm
Position error
0.05~0.1mm
External dimensions
L1150*W600*H1500mm
Weight
160KGS
Production rate
2500-3500PCS/H
Application for Loose terminal wire stripping and crimping machine EW-5370
