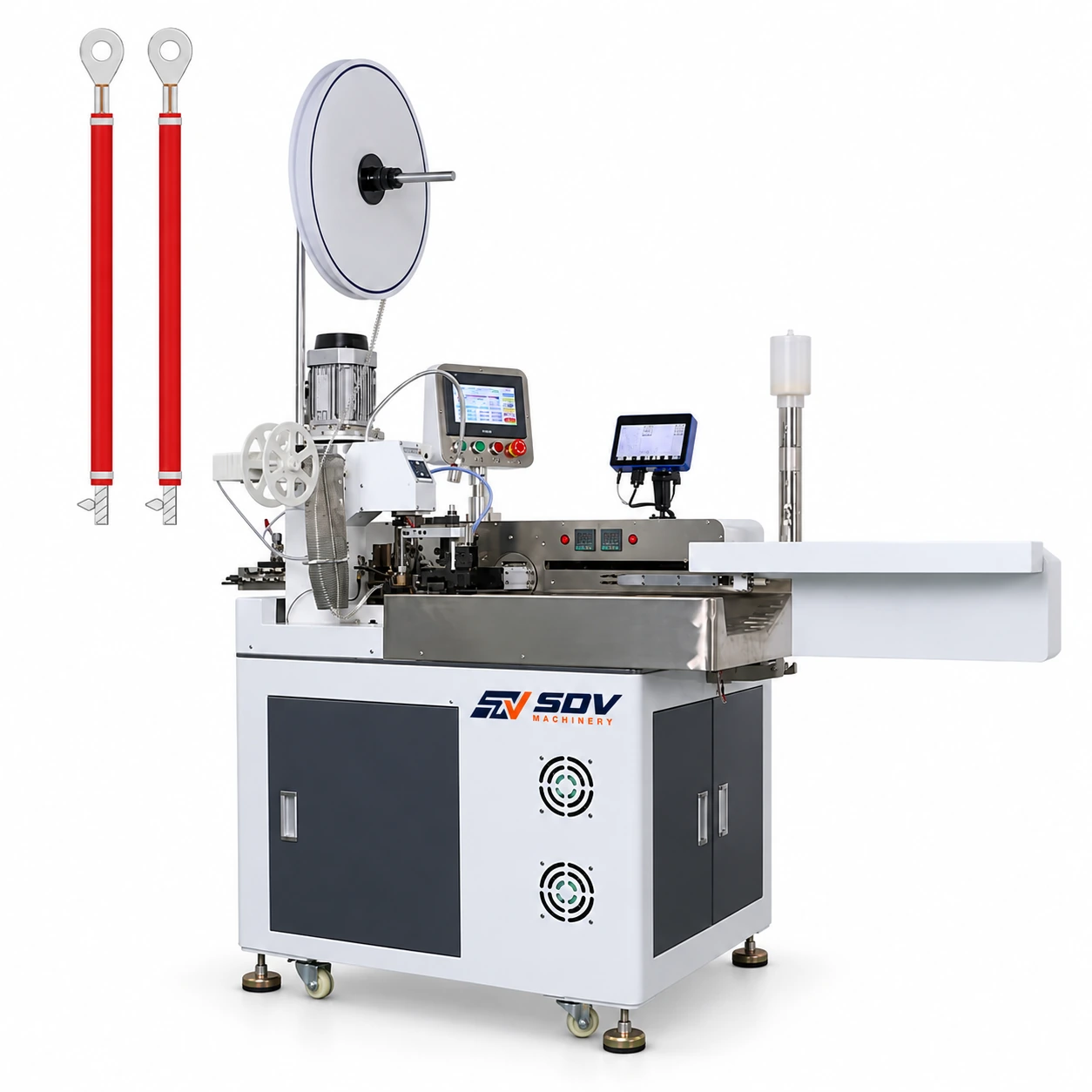

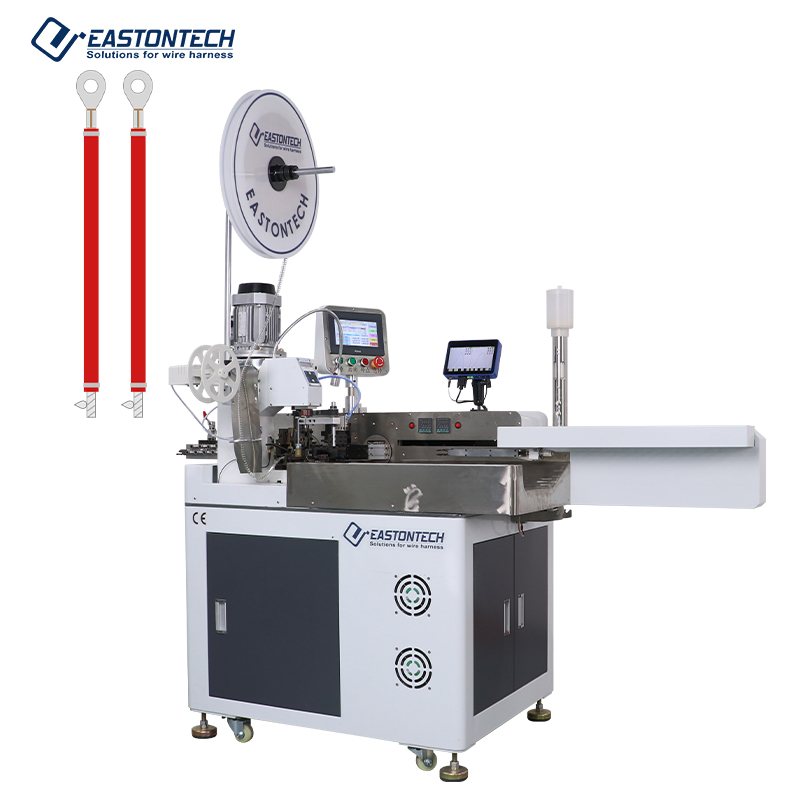

Automatic one side Crimping with double side Tin Soldering Machine EW-8230

Price of the selected optionon request
Delivery options

Description

Feature

● With its features of gentle wire processing, fast working speed, economical approach to wearing parts and fully automatic operation, it has quickly become one of our most popular wire processing machines both domestic and abroad.

● The product data is saved in a database and can be retrieved at any time, with this function you can change different wires in seconds.

● All the setting such as cutting length, stripping length, flux soaking place and time, tinning place and time, tinning depth will be done easily through LCD touch screen.

● The solder wire can be set automatically feeding after a certain round of cutting and stripping, no need of manual work.

Specifications

Model
EW-8230
Applicable wire range
AWG32-AWG16 2P-20P
Stripping length
1-10mm
Cut precision
±(1+0.002*L) mm, L=cut length
Cutting length
Flat cable:60-1000mm Electronic wire 35-1000mm
Capacity
5000-6000pcs/hour Flat cable 900pcs/hour
Crimping force
2.0T
Tinning length
15-1000mm
Air pressure
0.6-0.8Mpa
Detection
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Dimension
1900*900*1500mm
Weight
450Kg
Power supply
220V/110V/50HZ/60HZ
Application for Automatic one side Crimping with double side Tin Soldering Machine EW-8230
