Wire Processing and Electrical Installation Equipment

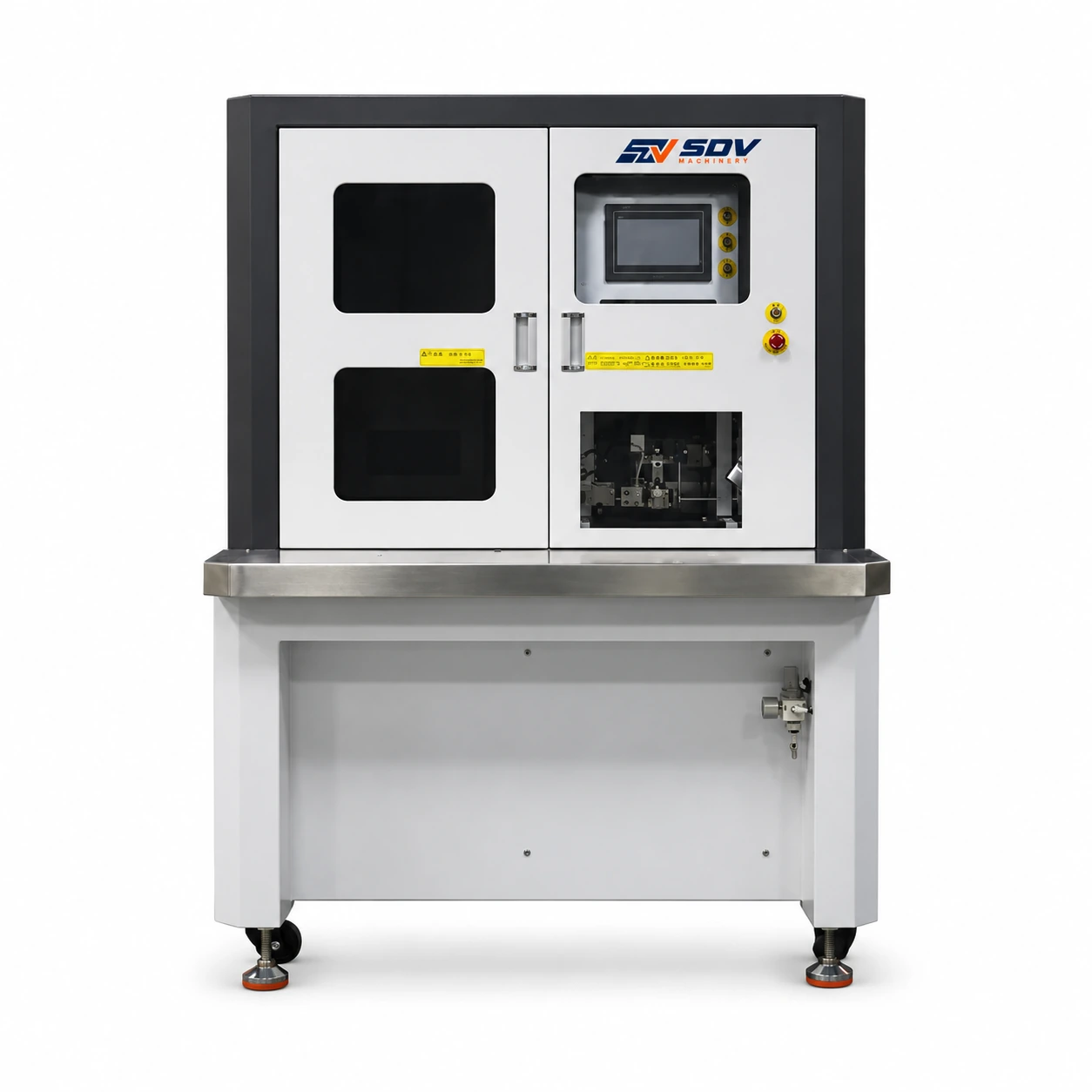

Servo Motor Vibrating Plate Terminal Crimping Machine (AWG36# -AWG5#) EW-5405

Price of the selected optionon request
Delivery options

Description

Feature

● Adopt centrifugal vibrating plate, automatic loading of granular terminals, and frequency conversion to adjust the number, saving time and effort.

● The feeding track is controlled by infrared rays. When the track is full of material, the vibrating plate stops loading.

● Suitable for all types of new energy, electric power, industrial and other large square wire harnesses.

Specifications

Model
EW-5405 -8T | EW-5405-10T
Air Source
0.4~0.6mpa | 0.4~0.6mpa
Crimping capacity
8T | 10T
Working capacity
AWG36# -AWG5# | AWG36# -AWG5#
Stroke
30MM | 30MM
Crimping speed
1800-2000Pcs/H | 1800-2000Pcs/H
Power
3000W | 3000W
Terminal type
Loose terminal | Loose terminal
Voltage
200V~240V 50/60Hz | 200V~240V 50/60Hz
Dimension
L1400*W900*H1700mm | L1400*W900*H1700mm
Weight
250KGS | 250KGS
Application for Servo Motor Vibrating Plate Terminal Crimping Machine (AWG36# -AWG5#) EW-5405
