Feature

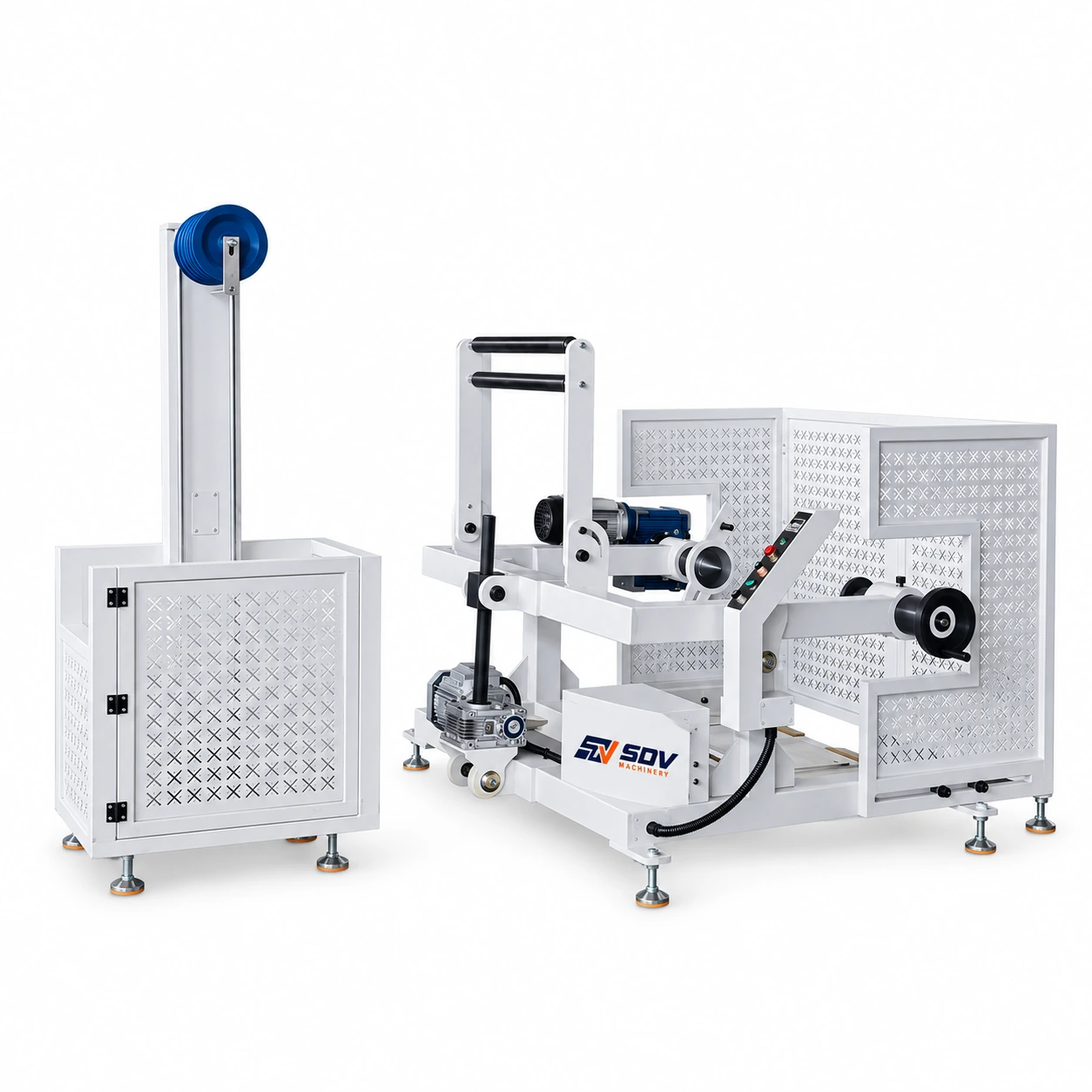

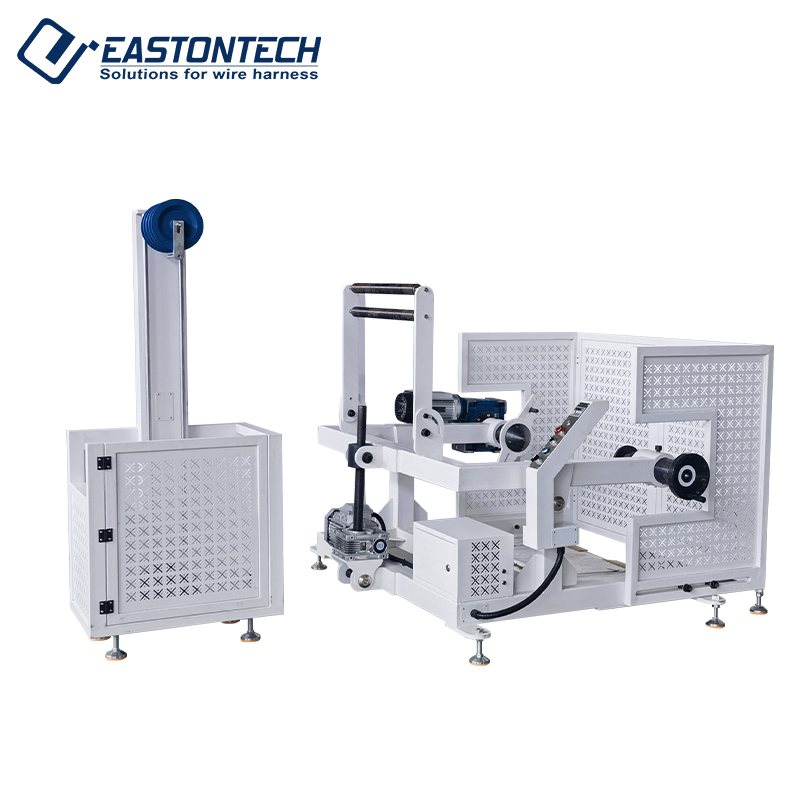

● 1500 kg High-Capacity Payload Frame: Engineered from thick-walled, high-quality structural carbon steel. Provides rock-solid stability when loading heavy wooden, plastic, or iron cable reels up to 1500 kg.
● Inverter-Driven Dynamic Speed Matching: Equipped with a multi-speed inverter that automatically regulates drum rotation speed based on real-time displacement of the wire storage dancer arm—preventing cable jerking or loose reel overrun.
● Precision Counterweight Tension Adjustment: Features an adjustable counterweight mechanism on the accumulator arm, allowing operators to fine-tune cable tension according to wire rigidity and diameter (up to 40 mm OD).
● Universal Reel & Drum Compatibility: Accommodates a wide range of industrial drum sizes—outer diameters from 600 to 1500 mm, inner arbor holes from 0 to 140 mm, and drum widths up to 900 mm.
● High-Torque 3 kW Industrial Motor: Powered by a 3 kW drive motor delivering rated speeds of 1450 rpm and maximum speeds up to 2200 rpm, ensuring smooth startup and rapid acceleration for high-throughput automated lines.
Application Range
● Heavy Power Cable & Energy Harness Production: Motorized dereeling of thick multi-core power lines, high-voltage EV battery distribution cables, and industrial feeder lines.
● Automotive & Commercial Vehicle Assembly: Tension-free feeding of heavy-gauge battery cables and starter leads into automated cutting and stripping machines.
● Renewable Energy & Solar Installations: Unspooling heavy copper and aluminum photovoltaic power cables without jacket stretching or pitch deformation.
● Cable Assembly Contract Manufacturing: Payout for high-volume processing lines utilizing standard wooden, plastic, or steel reels up to 1.5 tons.
