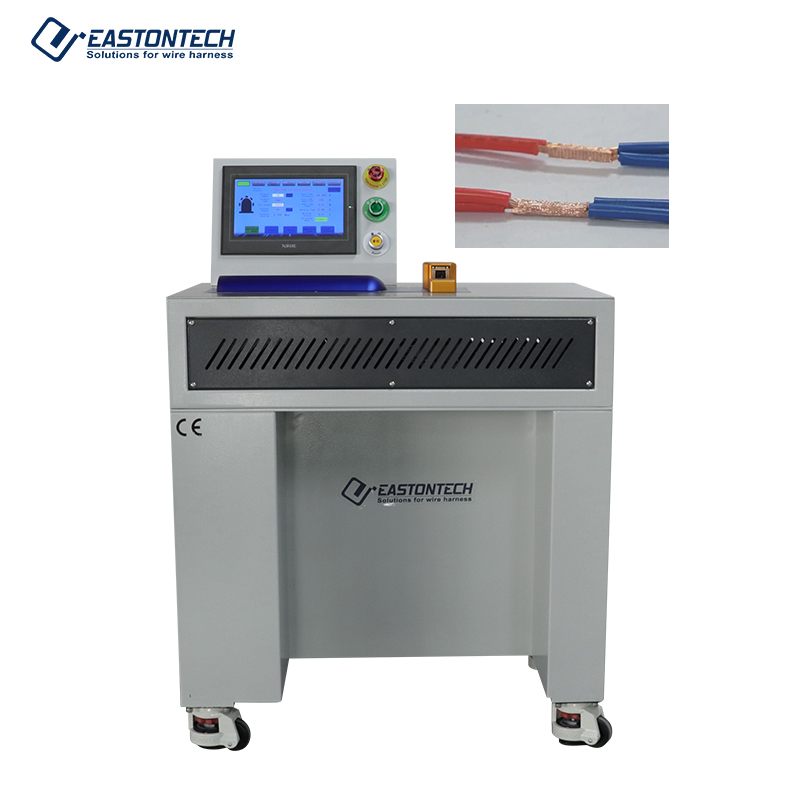

Ultrasonic welding machine(0.5-25 mm²/50 mm²) EW-6090

Price of the selected optionon request
Delivery options

Description

Feature

● This machine is a special equipment mainly for copper wire and copper wire docking or parallel pressure,is the use of acoustics, mechanics, polymer integrated research and development of high-tech equipment.

● Ultrasonic selection of original imported acoustic components, reliable and stable performance.

● It can replace the traditional cord end terminal crimping or dipping tin, direct welding of raw material stripping, no waste and harmful gas precipitation, welding wire resistance close to zero Ω, greatly reducing the safety risks caused by heating

● Man-machine interface with optional touch screen or industrial computer, to meet different customer needs,simple and intelligent operation, formula parameters can be stored, you can arbitrarily switch welding formula,complete the production of different products.

Specifications

Model
EW-6090 | EW-6090-1
Use function
Wiring harness welding (Copper wire) | Wiring harness welding (Copper wire)
Weldability
0.5-25 mm² | 0.5-50 mm²
Maximum power
2600w | 5000w
Frequency
20KHz | 20KHz
Dimension
1100*700*750mm | 1100*700*1200mm
Power
AC 220V 60Hz | AC 220V 60Hz
Air source
Clean dry compressed air | Clean dry compressed air
Working pressure
0.1-0.6Mpa | 0.1-0.6Mpa
Weight
100KGS | 100KGS
Application for Ultrasonic welding machine(0.5-25 mm²/50 mm²) EW-6090
