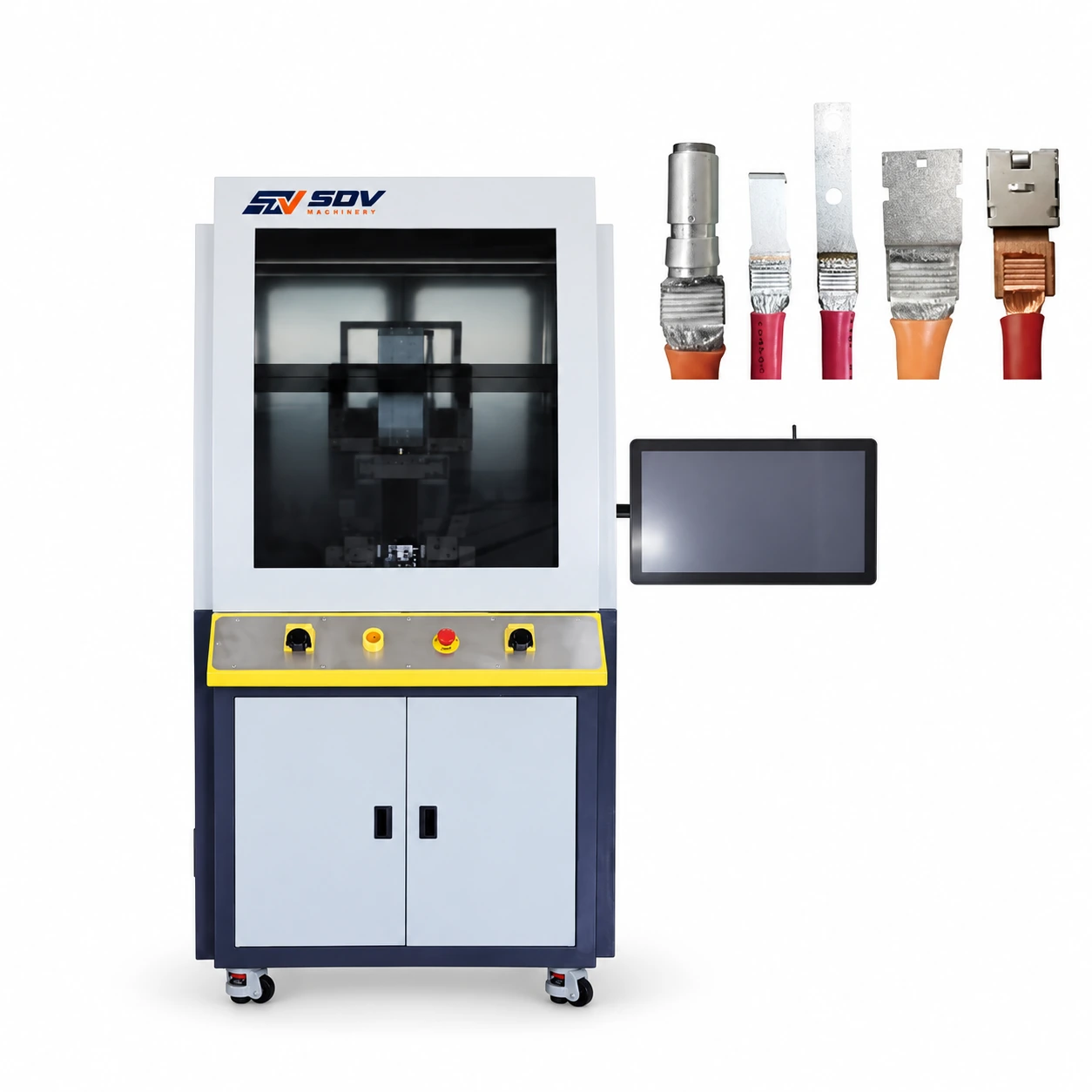

Ultrasonic welding machine(6-50 mm²) EW-6095

Price of the selected optionon request
Delivery options

Description

Feature

● This machine is a special equipment for cable and terminal connection, is the use of acoustics, mechanics,polymers and other integrated research and development of high-tech equipment.

● Ultrasonic selection of original imported acoustic components, reliable and stable performance.

● lt can meet the different thickness of terminals and copper wire, aluminum wire welding, welding effect is stable, no gap hole, reduce the probability of heating improve the safety of products.

● The man-machine interface is equipped with industrial computer, which can meet the docking needs of the factory production system, the operation is simple and intelligent, the formula parameters can be stored, and the welding formula can be switched arbitrarily to complete the production of different products.

Specifications

Model
EW-6095
Use function
Wire harness and terminal welding(Copper or aluminum wire)
Weldability
6-50 mm²
Maximum power
5000w
Terminal thickness
1-5mm
Frequency
20KHz
Dimension
1000*850*1950mm
Power
AC 220V 60Hz
Air source
Clean dry compressed air
Working pressure
0.1-0.75Mpa
Weight
400KGS
Application for Ultrasonic welding machine(6-50 mm²) EW-6095
