Feature
● Servo Motor Drive with Torque and Distance Dual-Mode Control
The tightening spindle is driven by a servo motor whose output torque and rotation angle are both programmable on the touchscreen. Two tightening quality control modes are available: torque mode terminates the cycle when a preset torque value is reached — ensuring consistent mechanical clamping force on the connector body regardless of dimensional variation between connector batches; distance mode terminates the cycle at a preset nut travel distance — used when a specific physical engagement depth is specified by the connector manufacturer. Operators can select the mode that matches their quality control standard without mechanical tooling changes.
● 600–1,000 pcs/h with Stable Performance and Simple Operation
The machine achieves 600–1,000 connector assemblies per hour under continuous production, with pneumatic actuation (0.5–0.7MPa) handling the part clamping and spindle positioning cycle. The operating interface is a touchscreen with parameter storage per connector type, reducing changeover time when switching between male and female connector bodies or between different MC4-compatible connector brands.
● Compact Bench-Top Footprint for Solar Cable Line Integration

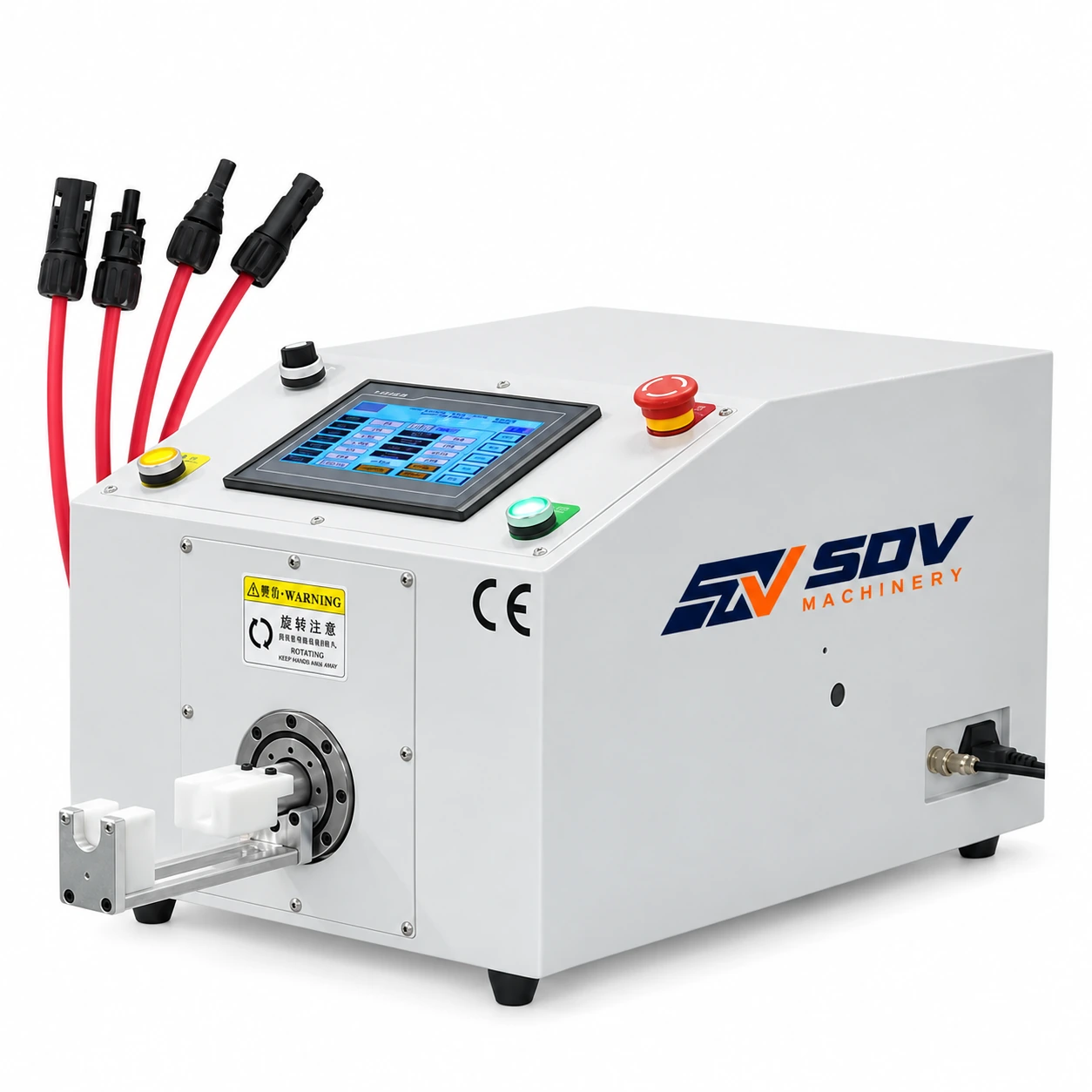

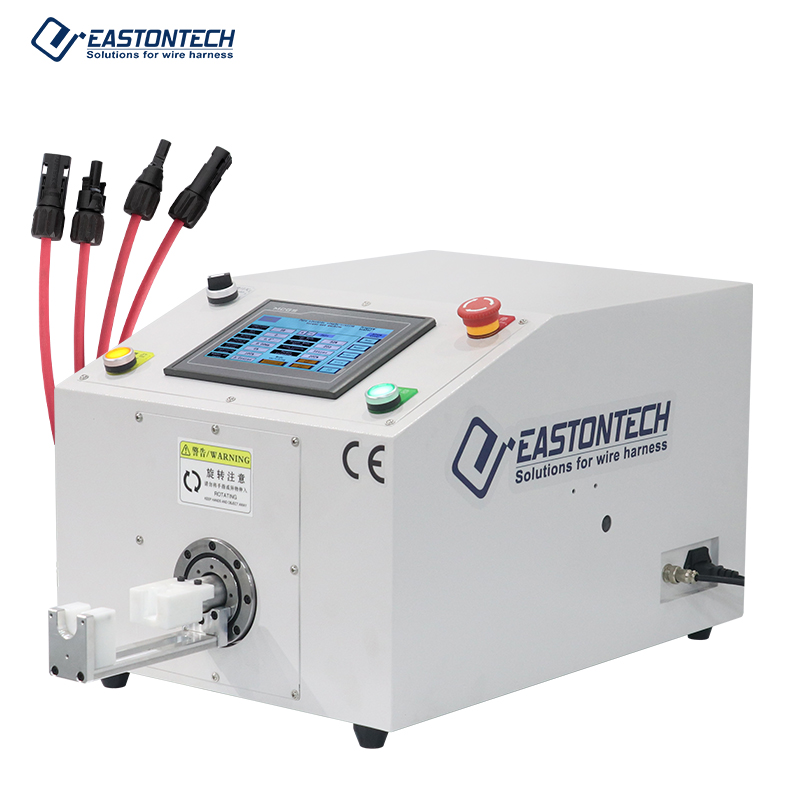

At 600×410×500mm and 25kg, the EW-1080-2 is sized for direct bench-top integration on solar cable assembly lines alongside crimping and stripping stations. The dual voltage support (220V/110V, 50/60Hz) allows deployment in manufacturing facilities across Asia, Europe, and the Americas without transformer modification.
Application Range
● Solar photovoltaic (PV) cable assembly lines
MC4 connector nut tightening is the final mechanical assembly step in solar cable production — after conductor crimping and pin insertion, the locking nut must be tightened to a specified torque to achieve the IP67/IP68 weatherproof seal. The EW-1080-2's torque-controlled servo drive ensures every connector meets the tightening specification required for IEC 62852 and UL 6703 MC4 connector certification compliance.
● Solar panel junction box & string cable manufacturing
String cables connecting solar panels in rooftop and utility-scale PV installations use MC4 connectors at both ends. The EW-1080-2's 600–1,000 pcs/h throughput matches the production rates of dedicated solar cable manufacturing lines producing string cables for residential and commercial solar installations.
● Energy storage system (ESS) cable assembly
Battery energy storage systems (BESS) increasingly use MC4-compatible connectors on DC interconnect cables between battery modules and inverters. The torque-control mode ensures consistent connector engagement on these safety-critical connections where under-tightened connectors can cause resistance heating and fire risk.
● EV charging & new energy equipment cable production
DC charging cables and new energy vehicle power supply cables use MC4-compatible or similar locking nut connectors. The Related Products range (EW-1095 New Energy Connector Nut Tightening Machine) confirms Eastontech's capability across both solar and EV charging connector assembly applications.
