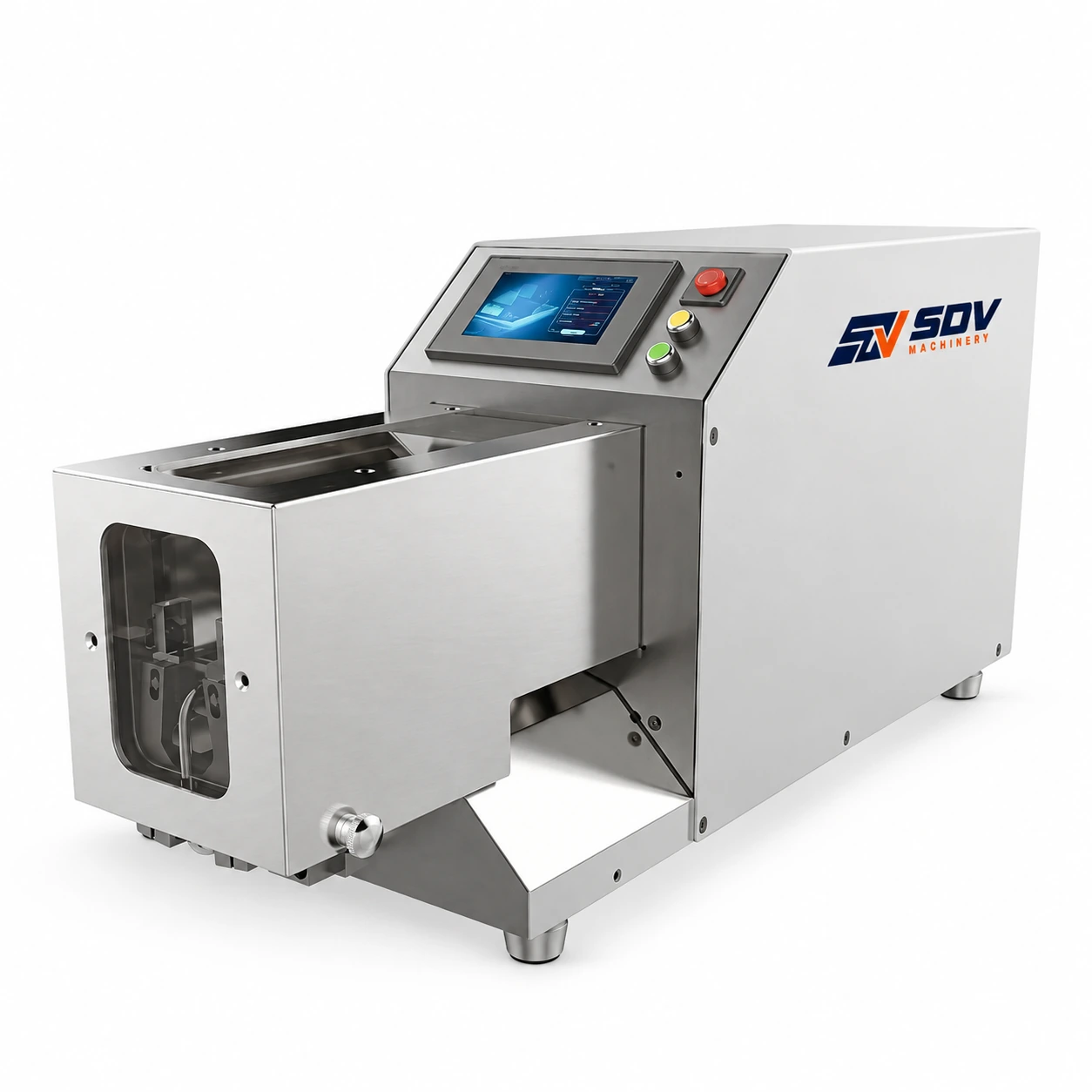

Coaxial Cable Stripping Machine(2-23mm) EW-1175

Price of the selected optionon request
Delivery options

Description

Feature

● Suitable for processing coaxial cables with larger outer diameters and special single wires.

● Use advanced four-blade rotary cutting technology to improve processing accuracy and capabilities.

● The rotary knife cuts the entire circumference to minimize the pulling force required for wire stripping.

● 200 sets of processing data are stored and can be quickly retrieved by entering the storage code.

Specifications

Model
EW-1175
Max. stripping length
0.1-150mm
Wire diameter
2.0-23mm
Capacity
250 - 500 pcs./h
Length accuracy
± (0.002 * L) mm
Max. stripping layer
9 layers
Dispaly
Touch screen
Dimension
850*230*360mm
Weight
40KGS
Application for Coaxial Cable Stripping Machine(2-23mm) EW-1175
