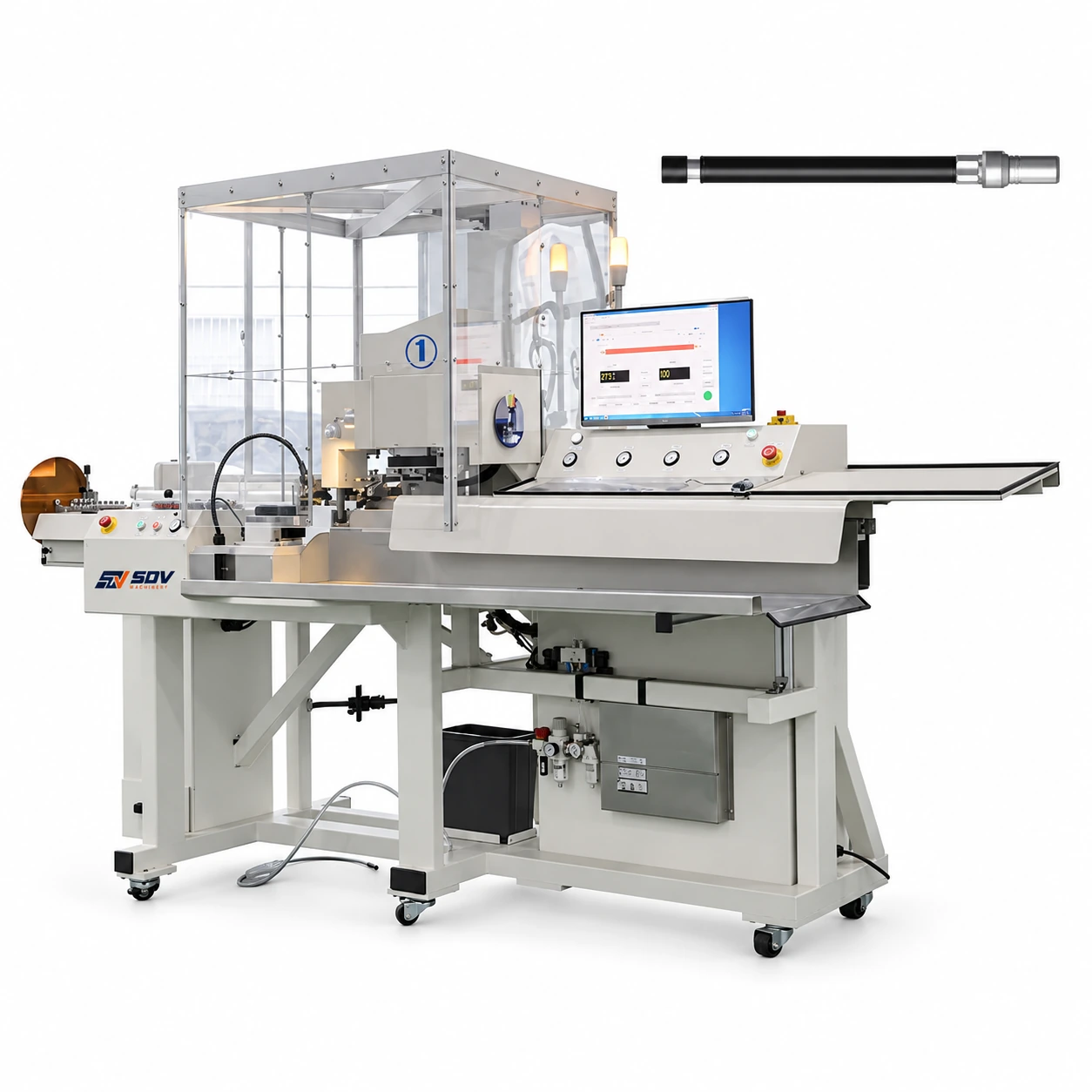

Automatic PV wire linked terminal crimping machine(single end)(4-6mm²)(2.5T) EW-8250

Price of the selected optionon request
Delivery options

Description

Feature

● Full closed loop flexible wire feeding system,rubber belt feeding device to protect the wire surface from damaging, increasing the wire feeding accuracy.

● It uses network drive system to meet the industrial processing requirement of the PV wire.

● Import servo motor drive,to ensure high precision, high efficiency and high stability.

● Industrial computer operating system,operation easy and simple.

● Pressure monitoring system can be installed, whole-process pressure monitoring,100% traceability.

Specifications

Model
EW-8250
Wire Size
4-6mm²
Stripping Length
0.1-18mm
Cutting Length
80-10000mm
Cutting Tolerance
±(1.0mm+0.2%*L)(L=cutting length)
Productivity
1000-1200pcs/h
Feeding Speed
12m/s(max)
Wire Collection
2m
Crimping Force
25KN
Air supply
0.5-0.8MPa
Air Consumption
6.5-8m³/h
Power supply
AC220V,50Hz
Rate Power
3.5kw
Dimension
L3500 x W1200 x H1700mm(with 2m wire collection)
Application for Automatic PV wire linked terminal crimping machine(single end)(4-6mm²)(2.5T) EW-8250
