Wire Processing and Electrical Installation Equipment

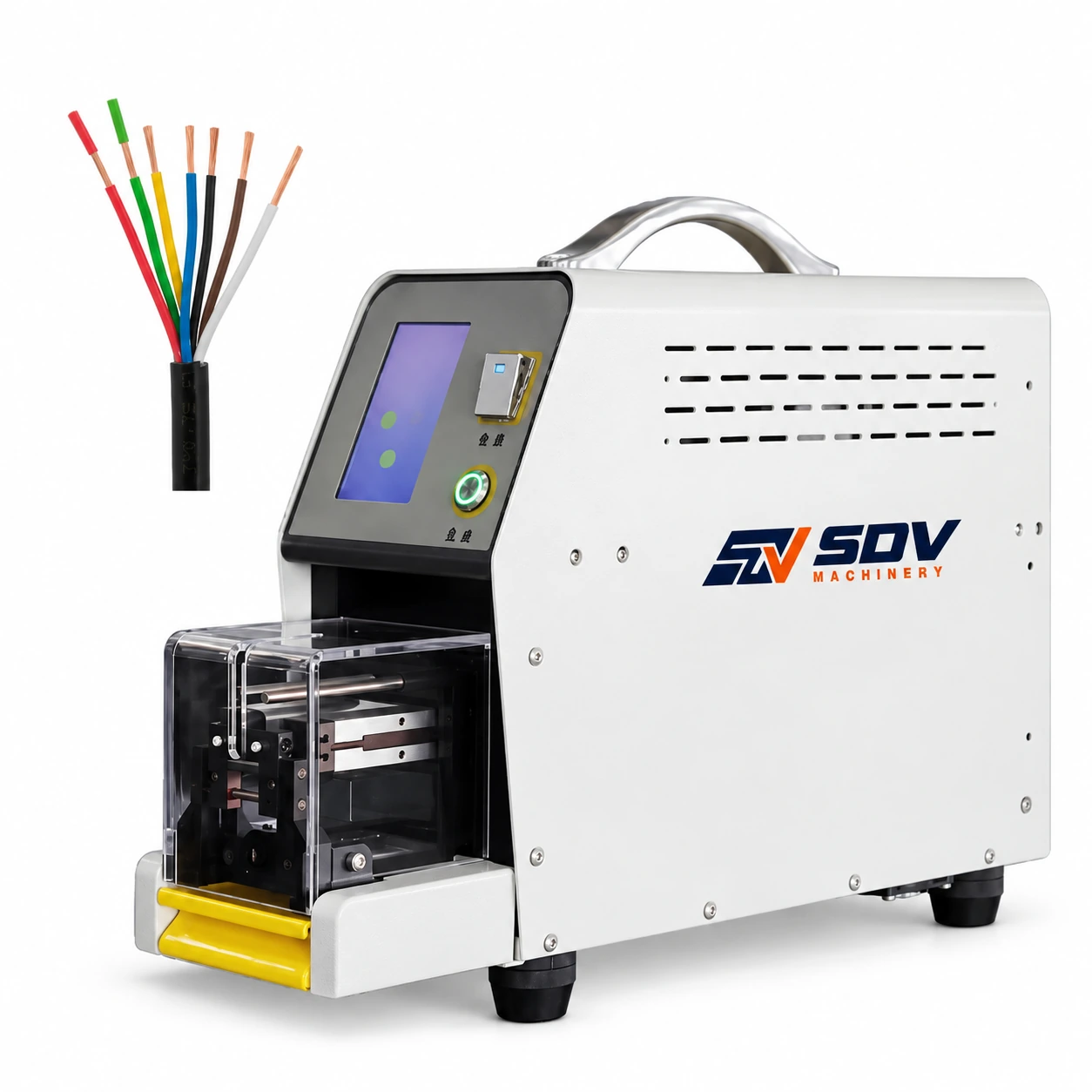

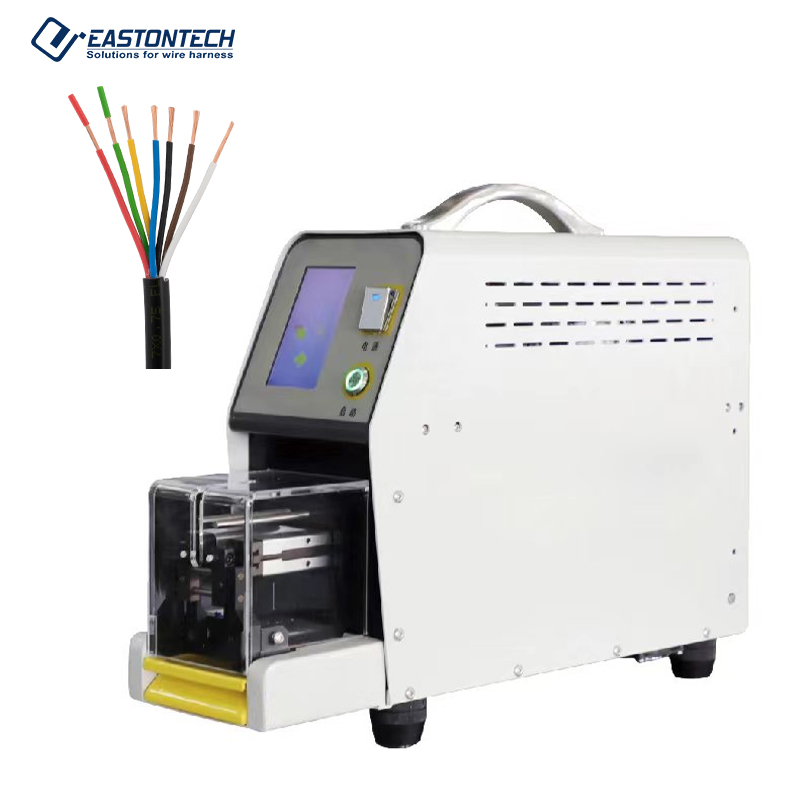

Semi-automatic Electrical wire stripping machine(0.5-8 mm²) EW-1180

Price of the selected optionon request
Delivery options

Description

Feature

● PLC control system, operate on touch screen.

● All data can be adjusted and stored, 100 kinds of wire data can be stored.

● The sensor control does not need a foot switch, and the head stripping is accurate, so it is safe and worry free.

● The peeling length, cutting depth, half peeling and full peeling are all adjusted by the scale knob, which is simple and fast without the help of tools.

● It adopts 90 degree V-shaped knife edge design, which is highly versatile. There is no need to replace the knife edge for processing different wires.

● Small size, easy to move where there is a power supply, it can work normally.

Specifications

Model
EW-1180
Wire range
0.5 -8 mm²
Stripping Length
1-45mm
Strip length accuracy
0.01mm
Processing speed
about 2s/pcs
Power
220V 50/60Hz
Air pressure
0.5-0.7Mpa,8m3*/h
Dimension
525*155*310mm
Weight
30KGS
Application for Semi-automatic Electrical wire stripping machine(0.5-8 mm²) EW-1180
