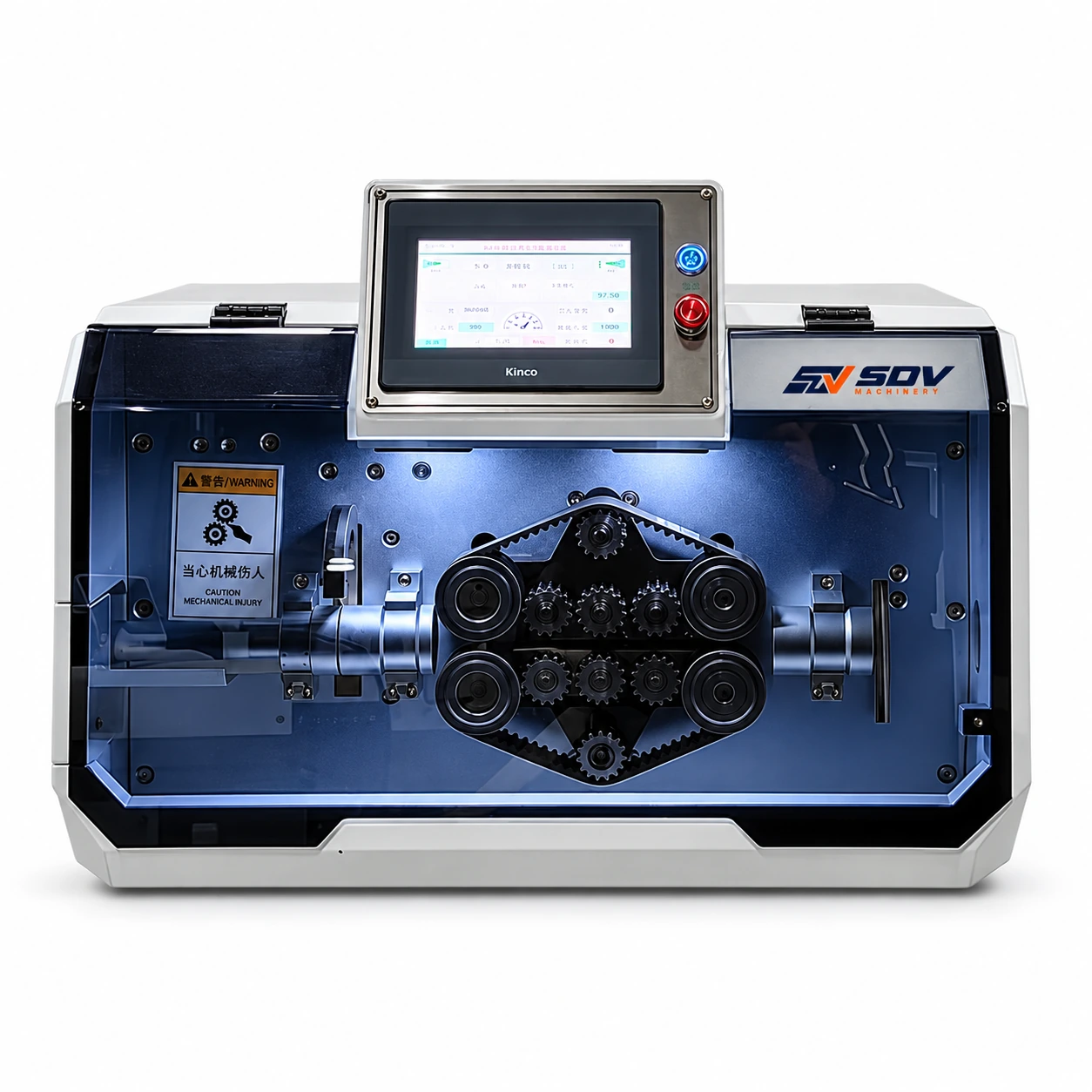

Automatic Corrugated Tube Cutting Machine (5 - 35 mm) (slitting is optional) EW-12A+

Price of the selected optionon request
Delivery options

Description

Feature

● The machine is specifically designed for cutting various corrugated tubes.

● Memory capacity of 100 materials.

● High productivity, which can be up to 10 - 60 pcs./min.

● The machine will stop cutting if the material is used out, owing to the material detection device.

● Intelligent sensor --- the machine will not start to cut until the safety door is closed.

● Slit function is optional.

● Special application can be customized.

Specifications

Model
EW-12A+ | EW-12A-1 (cut and slit)
Material outer diameter
5 - 35 mm (can be customized) | 5 - 35 mm (can be customized)
Cutting length
1 - 99999.9 mm | 1 - 99999.9 mm
Cutting increment
0.1 mm | 0.1 mm
Cutting tolerance
0.005 * L (L = cutting length) | 0.005 * L (L = cutting length)
Cutting mode
By motor | By motor
Cutting stroke
30 mm | 30 mm
Productivity
10 - 60 pcs./min | 10 - 60 pcs./min
Control system
PLC | PLC
Power supply
110, 220 V (50 - 60 Hz) | 110, 220 V (50 - 60 Hz)
Power
300 W | 300 W
Dimension
580 * 470 * 500 mm | 580 * 470 * 500 mm
Weight
70 KGS | 70 KGS
Application for Automatic Corrugated Tube Cutting Machine (5 - 35 mm) (slitting is optional) EW-12A+
