Wire Processing and Electrical Installation Equipment

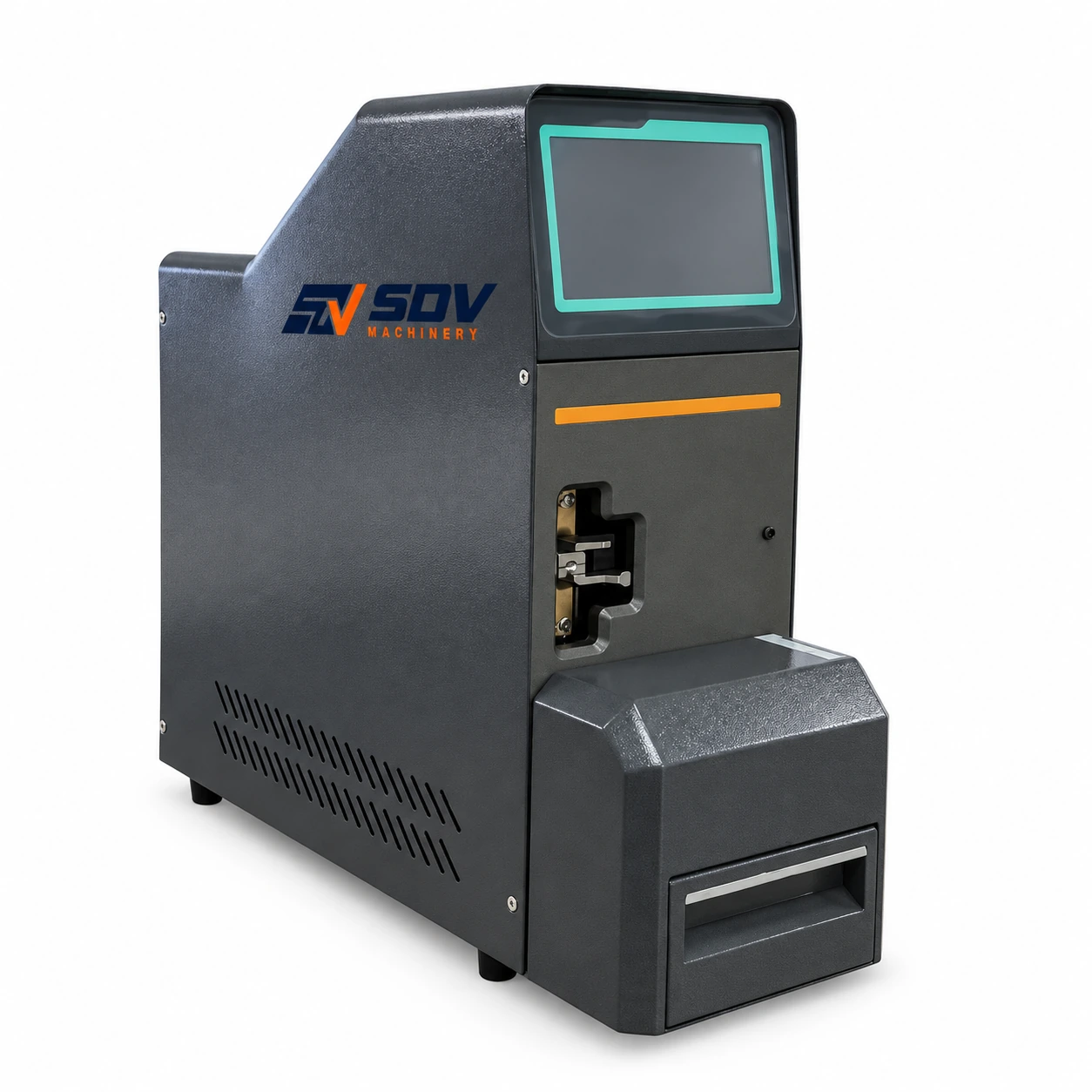

Multi-core wire peeling machine(0.13-2.5 mm²) EW-1185

Price of the selected optionon request
Delivery options

Description

Feature

EW-1185 is used for peeling of sheathed wire or twisted pair wire integrated positioning trigger function, full servo control system is the guarantee of efficiency and quality.

● Quality/Accuracy: Full servo+motion module.

● Efficiency: The beat is 1.0-2.0s.

● Intelligence: Function flexible switching, process data storage.

Specifications

Model
EW-1185
Wire diameter
0.13-2.5 mm²
Stripping Length
jacket wire:>8mm,core wire=0.1-20mm(customizable)
Air pressure
0.4-0.6Mpa
Power
AC220/110V50/60Hz
Motor
0.5kw
Weight
25KGS
Dimension
550*200*480mm
Application for Multi-core wire peeling machine(0.13-2.5 mm²) EW-1185
