Wire Processing and Electrical Installation Equipment

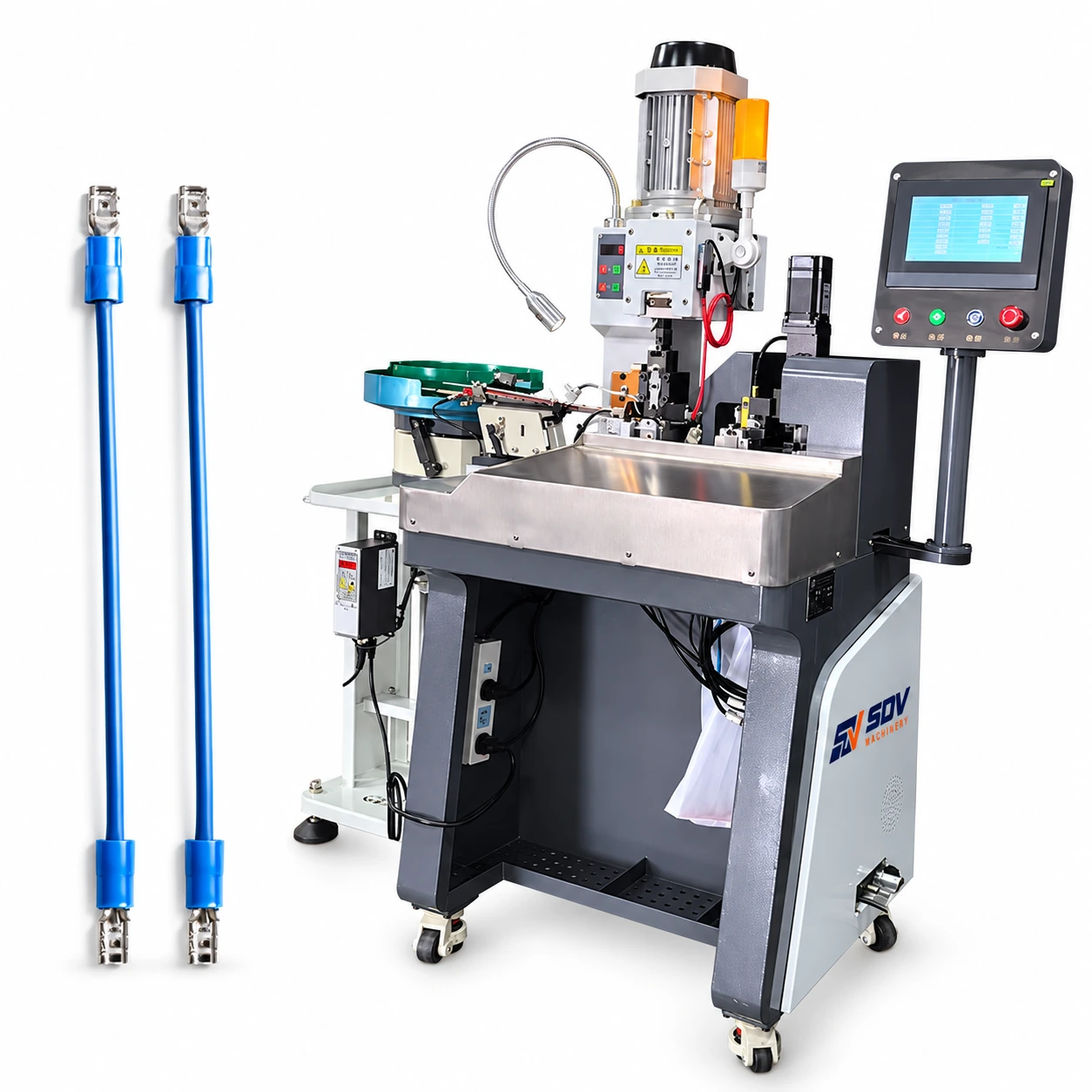

Loose round tube wire stripping and crimping machine 4T EW-5440

Price of the selected optionon request
Delivery options

Description

Feature

● Stripping length can be flexibly adjusted according to customer needs.

● The depth of wrapping can be easily adjusted according to the position of the top line.

● The front and rear sliding of the wire clamp is driven by servo motor, lead screw to ensure the accurate peeling length.

● The adjustment of opening only needs to be set on the touch screen.

Specifications

Model
EW-5440
Crimping force
4T
Wire size
AWG32#-AWG14#
Error
0.05mm-0.1mm
Rated Power
2.5KW
Stroke
30mm/40mm
Cycle time
4S
Air Pressure
0.5-0.7Mpa
Dimension
L1350*W650*H1350mm
Weight
200KGS
Application for Loose round tube wire stripping and crimping machine 4T EW-5440
