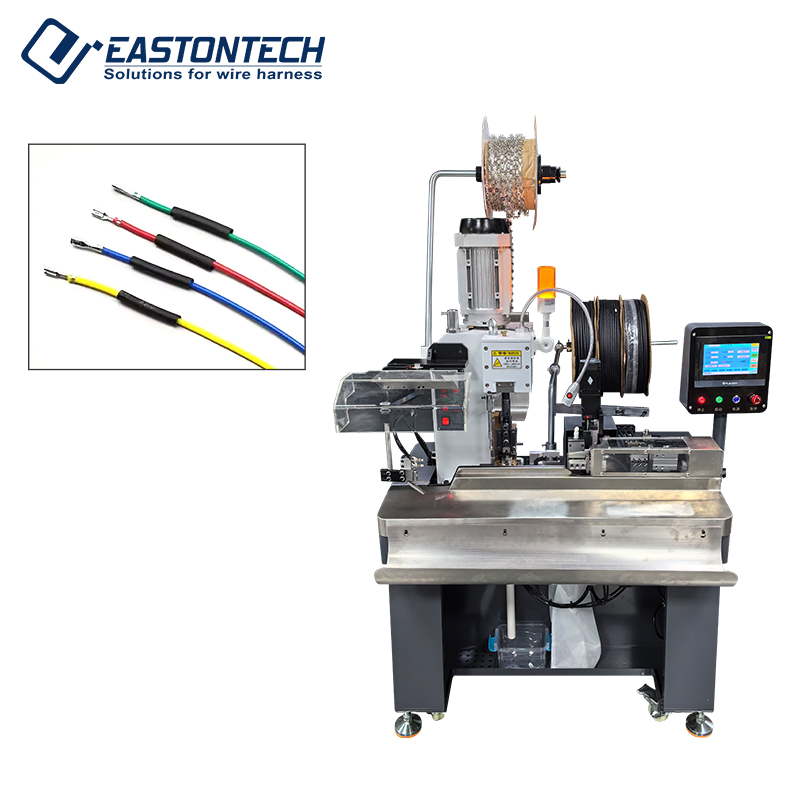

Sheath wire insert heat shrink tube stripping and crimping machine 2T/4T EW-5445

Price of the selected optionon request
Delivery options

Description

Feature

● Stripping length can be flexibly adjusted according to customer needs.

● The depth of wrapping can be easily adjusted according to the position of the top line.

● The front and rear sliding of the wire clamp is driven by servo motor, lead screw to ensure the accurate peeling length.

● The adjustment of opening only needs to be set on the touch screen.

Specifications

Model
EW-5445
Crimping force
2T/4T
Wire size
AWG22#-AWG10#
Error
0.05mm-0.1mm
Rated power
2.5KW
Stroke
30mm/40mm
Cycle time
4.5S
Air Pressure
0.5-0.7Mpa
Dimension
L1700*W1200*H1450mm
Weight
275KGS
Application for Sheath wire insert heat shrink tube stripping and crimping machine 2T/4T EW-5445
