Wire Processing and Electrical Installation Equipment

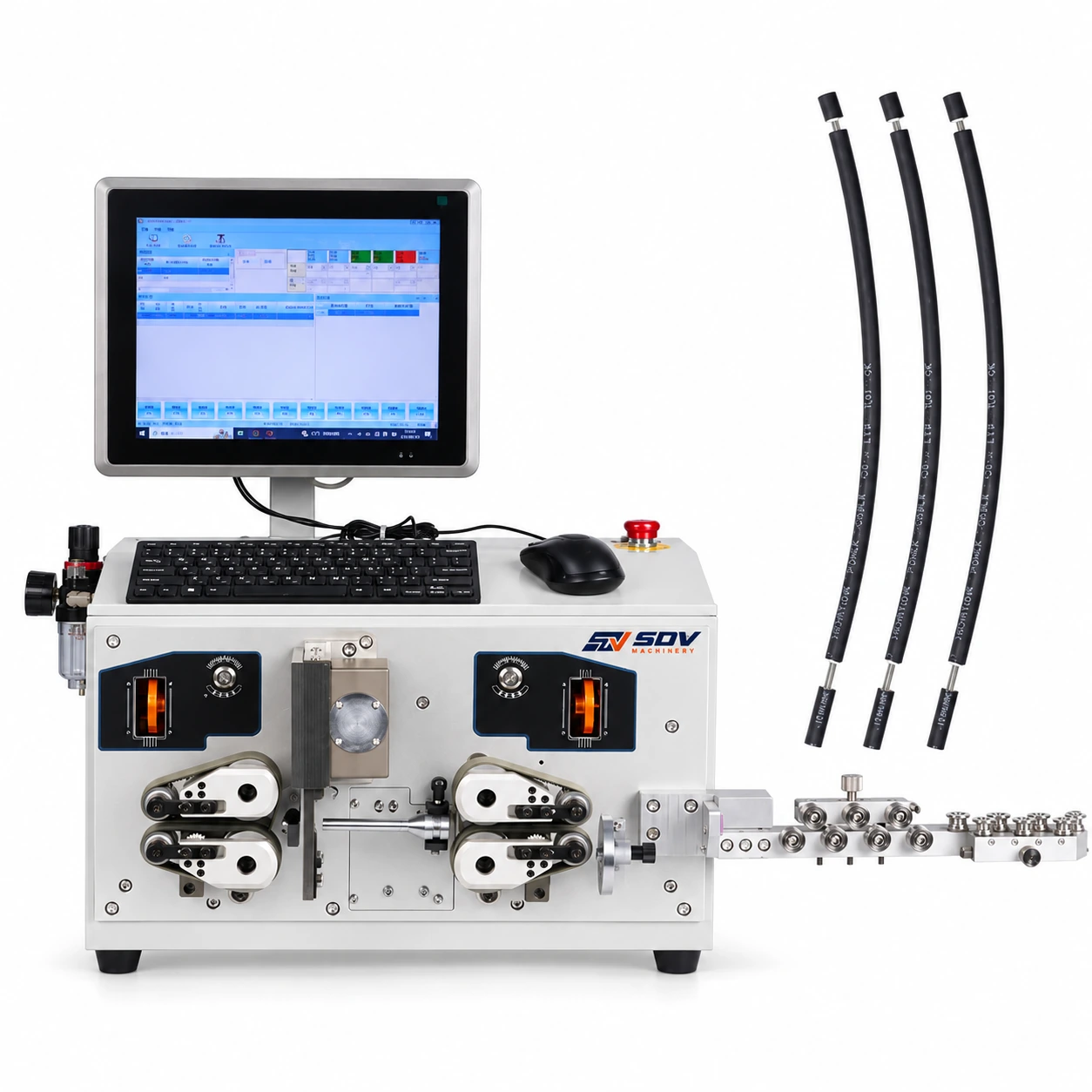

Wire cutting stripping machine with Intelligent software EW-3185+S

Price of the selected optionon request
Delivery options

Description

Feature

● Provide general and customized versions of Excel to realize batch and fast import of tasks.

● Scan the material information to determine whether the material matches the current processing task.

● To facilitate process management, process work orders are automatically printed during processing. The print template is optional and can be customized.

● Production tasks can be traced back, providing daily, monthly, and annual reports.

Specifications

Model
EW-3185+S
Wire material
PVC, fiberglass wire etc.
Conductor cross-section
0.2-16 mm²
Cutting length
55-9999mm
Cutting length tolerance
± 0.0001 * L
Stripping length
1-100mm
Air pressure
0.6-0.8Mpa
Motor
750W servo motor
Feeding
Belt feeding
Productivity
L=100 70pcs/min L=1000 50pcs/min
Power supply
110, 220 V (50 - 60 Hz)
Weight
54 kg
Dimension
W560*D450*H650mm
Application for Wire cutting stripping machine with Intelligent software EW-3185+S
