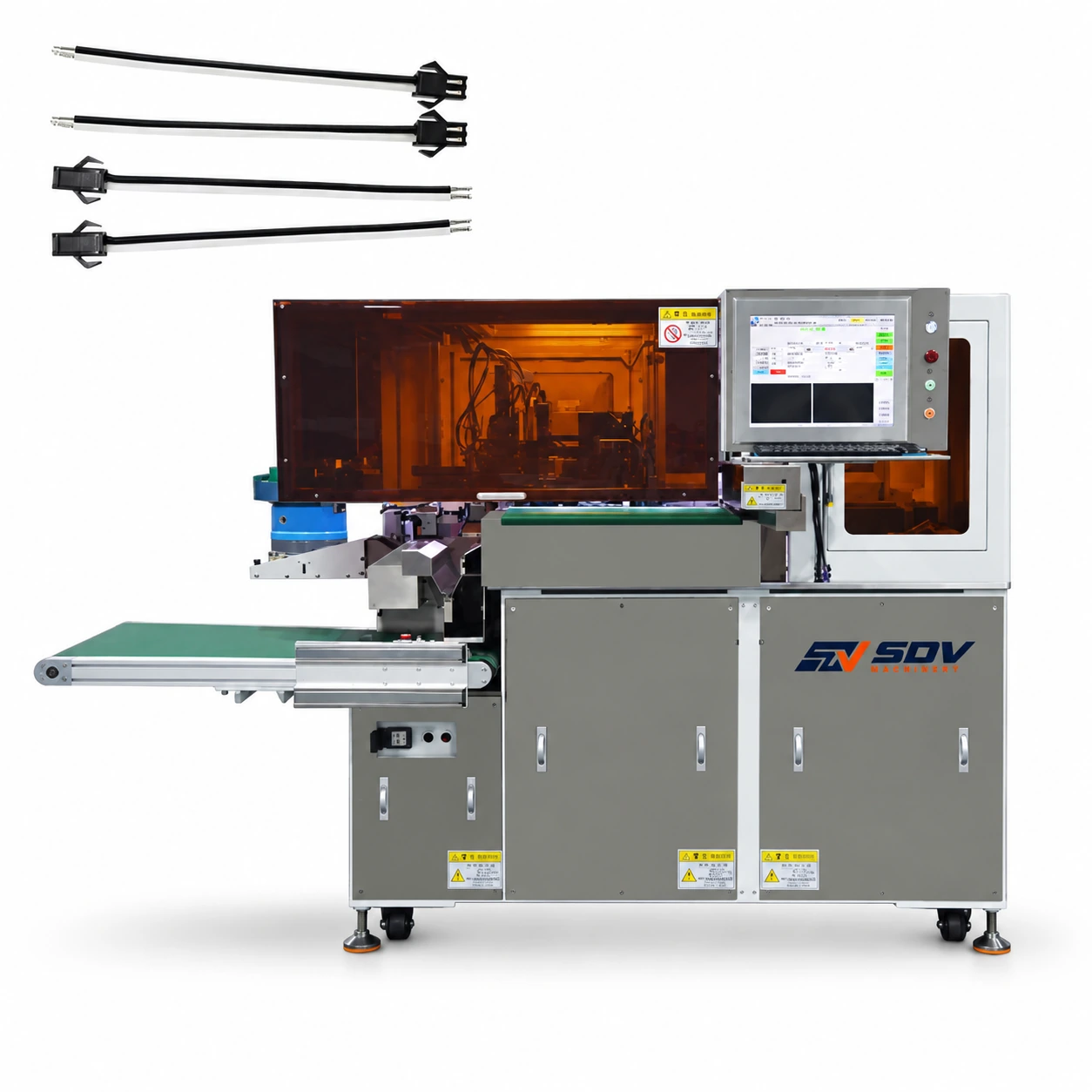

Automatic single head crimping and housing insertion another side tinning machine EW-8295

Price of the selected optionon request
Delivery options

Description

Feature

● Vibrating plate automatically feeds bulk rubber shell.

● Simple design, easy operation, easy debugging.

● Simple replacement product specifications, short time.

● Universal wire feeder with reel line.

● Each P can be freely set wire cutting length and stripping length.

● Automatic equipment selection, isolation process defective products.

● Check whether the terminal is inserted 100% and then pulled out.

Specifications

Model
EW-8295
Applicable wire range
AWG18-AWG30
Stripping length
A: 0.1-6.0mm B: 0.1-10.0mm
Tinning length
1-10 mm
Cutting length
40-780mm
Capacity
1300pcs/hour
Crimping force
2.0T
Terminal length
30mm
Air pressure
0.6-0.8Mpa
Wire color
2-8 color wires(must be the same specification)
Max. Pins
Single row 20 pins, maximum 3 rows
Shell size
MAX:40*25*20 MIN:5*6*3 Spacing 1.0-4.2mm
Power
220V/110V/50/60HZ
Detection device
Low air pressure,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error, Insertion error
Dimension
2340*1300*2120mm
Weight
520Kg
Options
CCD visual Inspection; CFM
