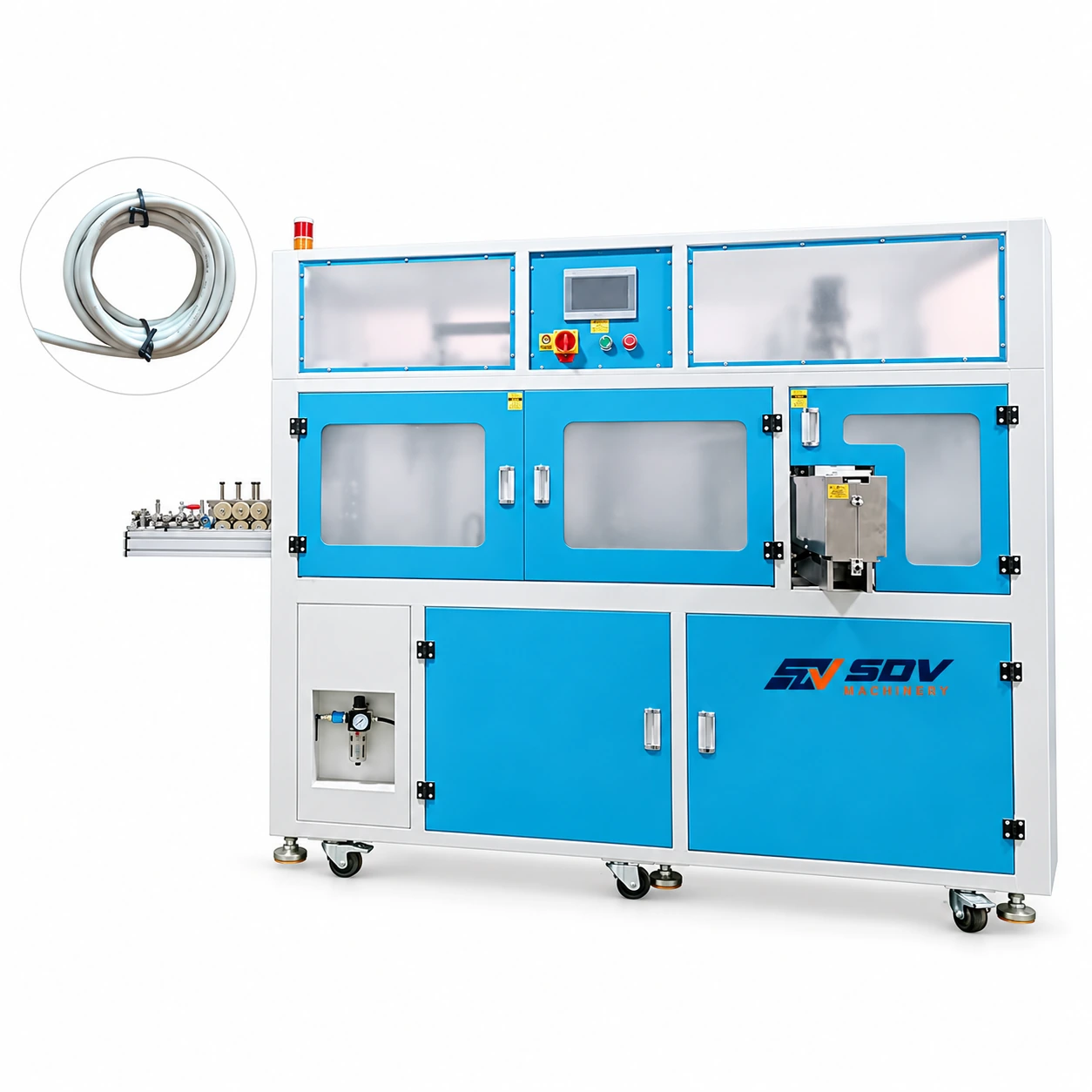

Automatic Wire Cutting Winding and Tying Machine (circle shape, double tying) EW-2020-1

Price of the selected optionon request
Delivery options

Description

Feature

● Automatically metering cutting, stripping coil and binding machine.

● Winding circles and tying twice, and the stripping of both ends.

● High performance, speed can reach 600 pcs / hour, saving labor.

● Automated large screen PLC touch screen control circuit, easy to operate, good work stability.

● The finished product after winding is beautiful, generous, tidy and easy to pack.

● Humanized design reduces workers' fatigue.

● Adopt a full set of imported original AirTAC cylinder 8. Suitable for Hot wire, underfloor heating cable, audio/video cable,sensing cable, DC cable, USB cable, sheathed cable.

Specifications

Model
EW-2020-1
Finished product
Circle shape, double tying
Cutting precision
2mm/m
Wire outer diameter
4-6 mm
Coil inner diameter
80 mm
Coil outer diameter
80-130mm
Coil hreight
30-65mm
Winding length
5-25 Meters
Tying diameter
≤ 40 mm
Wire head/tail length
300 - 400 mm
Applicable cable tie
≤ 7.5 kg/roll
Productivity
1000 pcs./h (winding length = 1 m)
Compressed air connection
0.6 - 0.7 MPa
Power supply
110, 220 V (50 - 60 Hz)
Power
5.5 KW/H
Dimension
2700L*1100W*1950Hmm
