Wire Processing and Electrical Installation Equipment

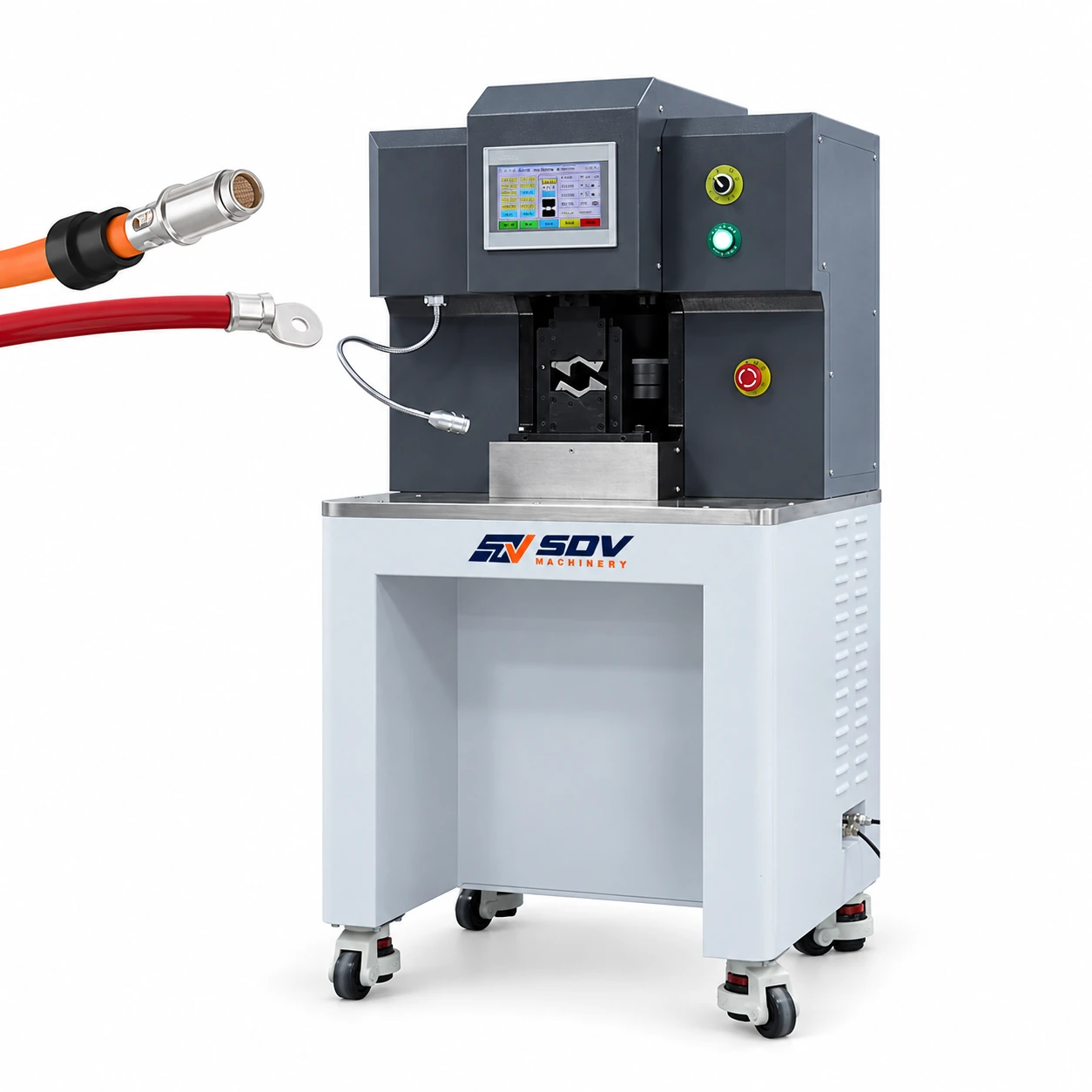

Servo motor crimping machine 4-120 mm² EW-5460

Price of the selected optionon request
Delivery options

Description

Feature

● Spindle drive is about 30mm (depending on the thickness of the terminal).

● Height adjustment is fine-tuned with touch screen.

● Speed: press once to complete the speed of about 2.5 seconds.

● Accuracy is positive or negative 0.015mm.

● The pressure holding time can be set when pressing the lower point.

Specifications

Model
EW-5460
Applicable wire diameter
4-120 mm²
Stroke
40mm
Production rate
1500Pcs/H
Power
2300W
Store program
30 group
Power
220V/110V/50HZ/60HZ
N.W
370KGS
Dimension
580*780*1480mm
Driver mode
Servo Motor
Start mode
Electric
Application for Servo motor crimping machine 4-120 mm² EW-5460
