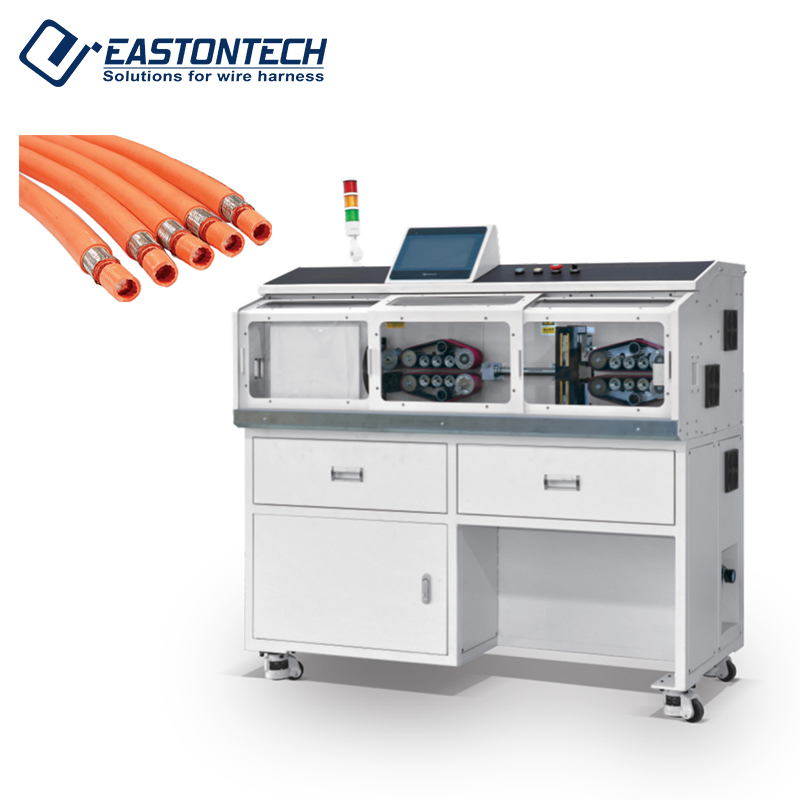

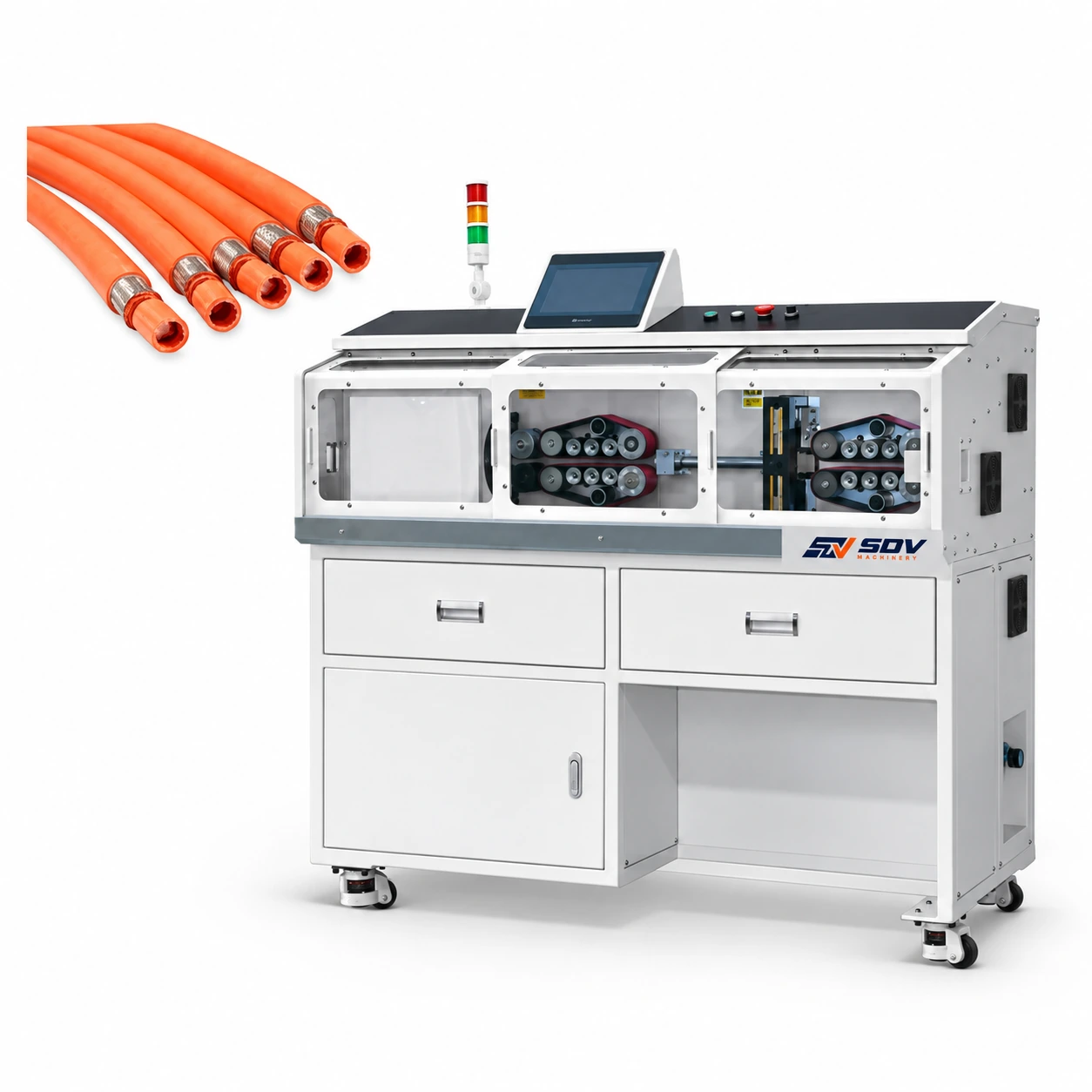

Large square rotary stripping and cutting machine(6-120 mm²) EW-3190

Price of the selected optionon request
Delivery options

Description

Feature

● Mainly used for cutting and stripping of EV cables and multi-layer cables.

● The servo motor controls the feeding mechanism, automatically adjusts the center, and feeds accurately.

● Unique rotating cutter head design, automatic centering correction, and accurate cutting.

● The machine is equipped with an encoder to correct the length of the wire and the length of the stripping head.

● The independent and movable double-head frame design makes this machine suitable for wires of various specifications.

● This machine has a wire-saving function.

● It can be customized as a right-in and left-out device.

Specifications

Model
EW-3190
Stripping range
6-120 mm²
Conduit diameter
6-25mm
Maximum stripping length
Front end 400mm/Rear end 250mm
Cutting accuracy
0.1%L+1
Cutting depth unit
0.01mm
Maximum number of stripping layers
6 layers
Stripping method
Cutter/stripper/piercer
Power supply
AC 220V 50/60Hz
Productivity
200-450pcs/h
Weight
304kg
Dimensions
1500*700*1450mm
Application for Large square rotary stripping and cutting machine(6-120 mm²) EW-3190
