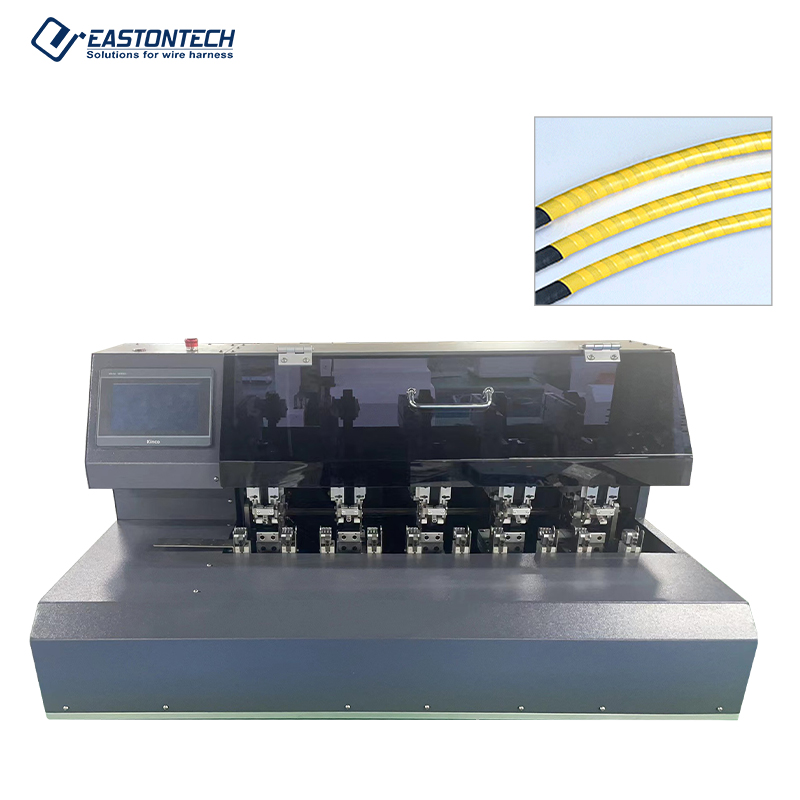

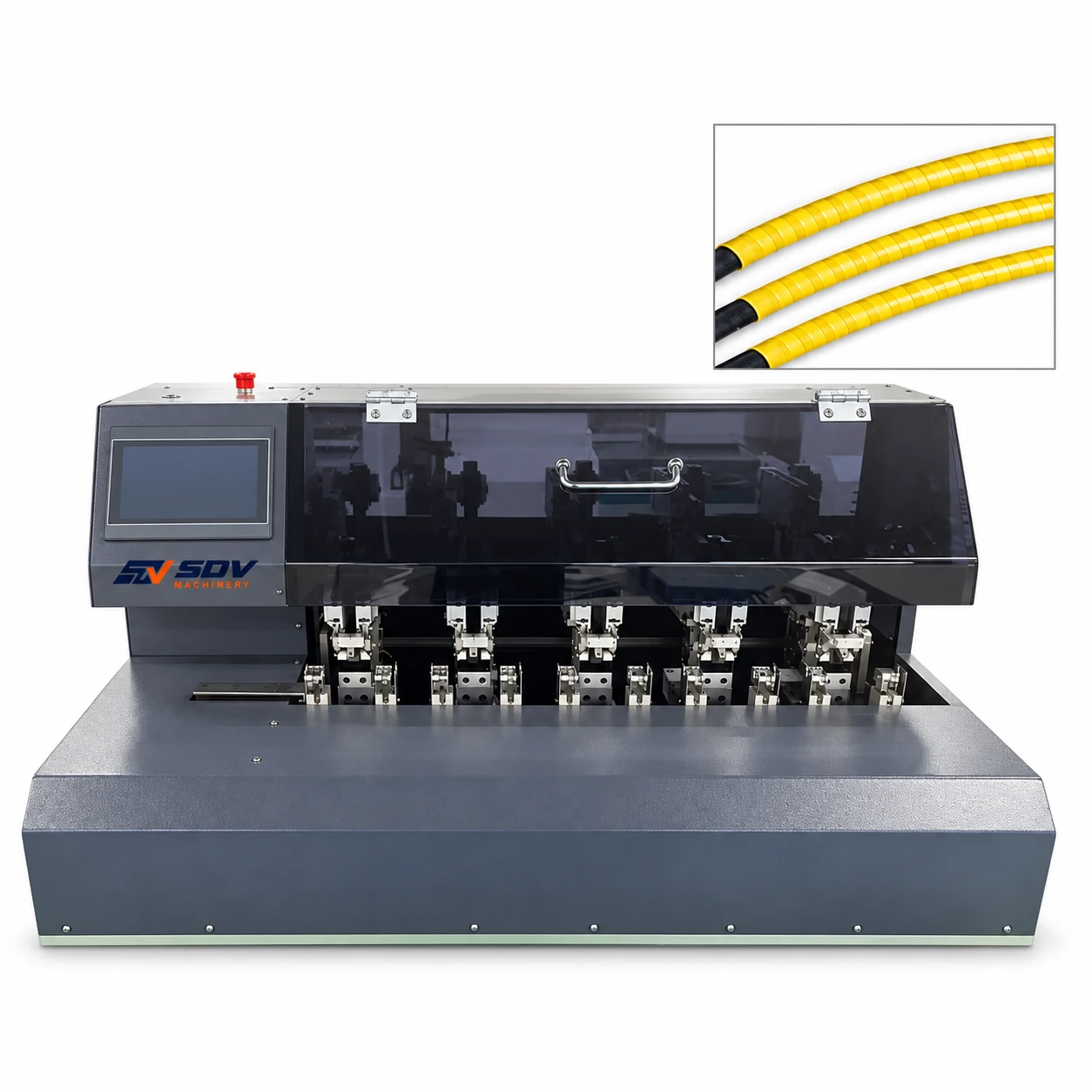

5 point wrapping tape winding machine for electric insulation tape EW-1800

Price of the selected optionon request
Delivery options

Description

Feature

● Tape length, winding number adjustment is convenient and accurate.

● Fully automatic cut the tape when finish wrapping.

● Touch screen, PLC control system, easy to operate; compact design, small size.

● Machine work stable and high efficiency, reduce the operation difficulty than manual.

Specifications

Model
EW-1800
Applicable tape
PVC, paper tape, etc
Product length
The maximum winding distance ≤ 620mm
Product diameter
3mm≤ diameter ≤6mm
Tape width
≤ 20mm
Tape cutting length
20mm≤ Tape cutting length ≤40mm
Distance from end position
≥80mm
Tapping position accuracy
±2
Tapping overlap
±2
Work efficiency
5s/pc
Machine power
400W
Power supply
110/220V/50/60HZ
Air compressor
0.4 MPa - 0.6 MPa
Weight
95 kg
Dimension
1050*550*540mm
Pedal
Yes
Application for 5 point wrapping tape winding machine for electric insulation tape EW-1800
