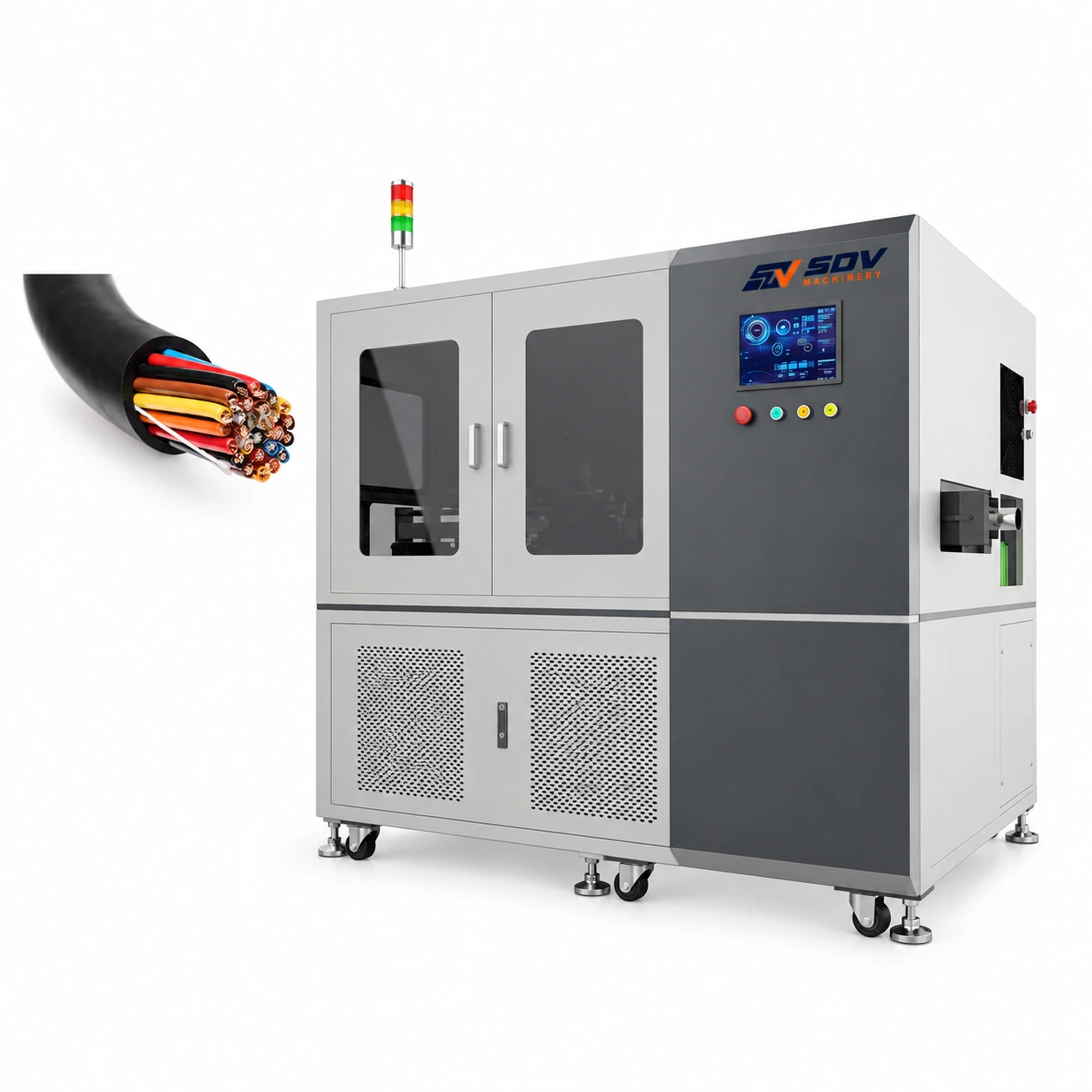

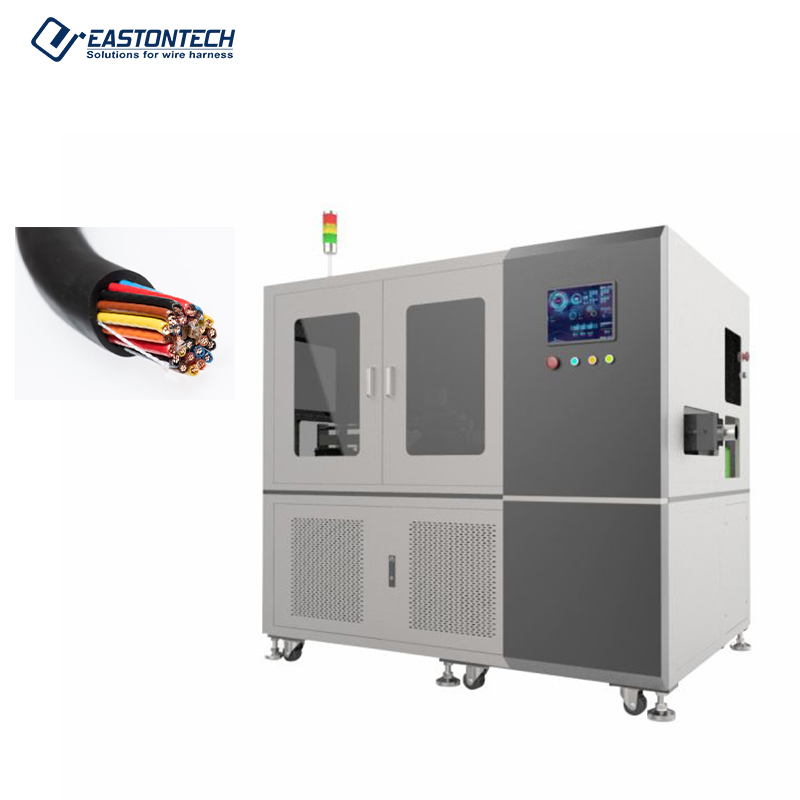

Wire cutting stripping machine(18-48mm with rotary cutter) EW-3150

Price of the selected optionon request
Delivery options

Description

Feature

● Mainly used for processing large square multi-core wires, multi-layer wires and other wire harnesses.

● Double rotating blade design, stripping both ends of the wire at the same time.

● No need to change the blade, you can strip wires of different specifications.

● 100 sets of data storage, multiple external ports reserved for easy signal transmission.

Specifications

Model
EW-3150
Wire diameter
18-48mm
Cutting depth unit
0.02
Cutting length
700-100000mm
Max. Stripping layer
6 layers
Stripping length
Head end 5-700mm Tail end:5-1200mm
Cutting stripping blades
2pcs
Rotary blades
4pcs/set, 2 sets total
Stripping layer
6 layers
Weight
320kg
Overall dimension
2200 x 1500 x 1750mm
Weight
1 Ton
Productivity
30-60pcs/hour(depends on cable)
Application for Wire cutting stripping machine(18-48mm with rotary cutter) EW-3150
