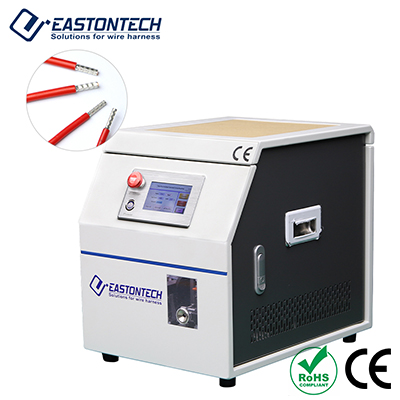

0.5-4.0 mm² Noninsulated tube Strip&Crimp Machine with Wire twisting EW-5470

Price of the selected optionon request
Delivery options

Description

Feature

● Small in size and easy to operate, can be placed in the final assembly site.

● A variety of terminals share one machine, saving cost and sharing.

● Fully sealed and peeled and crimped for safe operation.

● Multiple processes are combined to save labor and reduce product processing costs.

Specifications

Model
EW-5470
Control Mode
human-machine interface, electronic
Additional information
control, pneumatic control
Operation Mode
Automatic trigger operation and
Additional information 2
manual operation
Twisting Function
Yes
Wire Size
0.5-4.0mm² Square shape
Stripping Length
Max.17mm
Max Tube Length
12mm
Production Capacity
2.8s /wire
Air Supply
0.6-0.8Mpa
Working Temperature
10~25℃
Power Source
AC220V/110V/50/60HZ
Weight
40KGS
Dimensions
W350mm×L450mm×H400mm
Application for 0.5-4.0 mm² Noninsulated tube Strip&Crimp Machine with Wire twisting EW-5470
