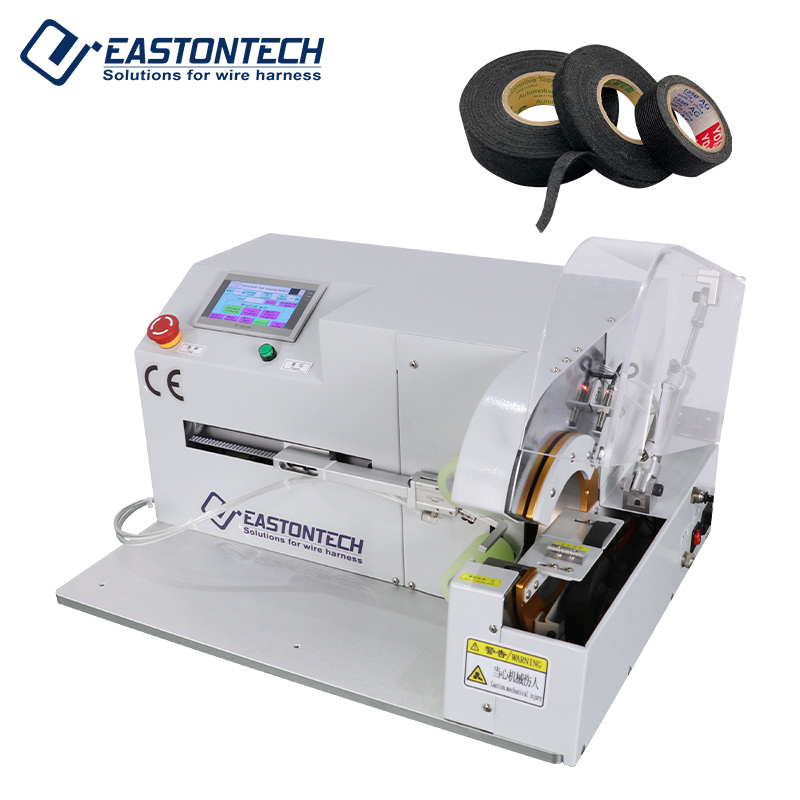

Tape wrapping Winding Machine with pneumatic clamp (3-30 mm OD) EW-AT-401L

Price of the selected optionon request
Delivery options

Description

Feature

● The EW-AT-401L is a tape-wrapping machine for a maximum 30 mm OD product wrap; spot wrap, and multi-section wrap.Unlimited wrapping length with fast wrapping speed.

● The wire pulling part replaces manual wire pulling to achieve uniform winding of the entire wire.

Specifications

Model
EW-AT-401L
Tape material
Flannel tape, acetate cloth tape, electrical tape etc.
Wrapping OD
3 - 30 mm
Tape ID
37/32 mm (custom option)
Tape OD
≤ 110 mm (custom option)
Tape width
5 - 25 mm (custom option)
Wrap mode
Full wrap, spot wrap, multi-section wrap
Wrapping length
Unlimited
pneumatic clamp
YES
Power supply
110, 220 V (50 - 60 Hz)
Compressed air input
0.4 - 0.6 MPa
Weight
45 kg
Dimension
560 * 500 * 350 mm
Activation mode
Foot pedal
Application for Tape wrapping Winding Machine with pneumatic clamp (3-30 mm OD) EW-AT-401L
