Wire Processing and Electrical Installation Equipment

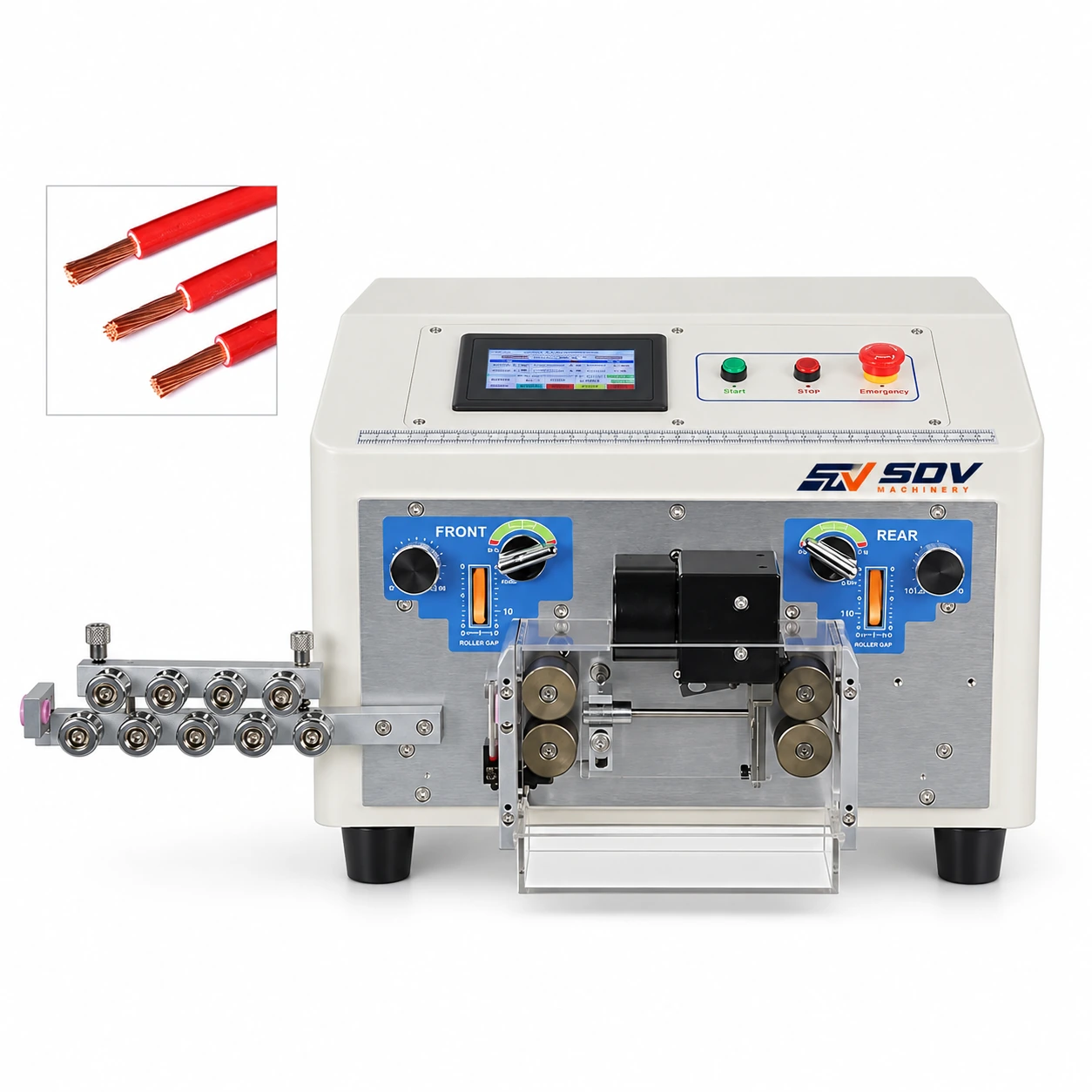

Automatic wire cutting stripping machine (0.1-6 mm²) EW-3095

Price of the selected optionon request
Delivery options

Description

Feature

● EW-3095 is suitable for 0.1-6mm² (AWG30-12) wires.

● 4-Wheel Driving to ensure the smooth cutting and stripping process.

● The machine will stop when it detects that the protective cover is opened.

Specifications

Model
EW-3095
Function
Wire cutting, double-end stripping, middle stripping
Wire range
0.1-6mm² (AWG30-12)
Cutting length
0.1mm-99999.9mm
Stripping length
Stripping head:0.1-250mm Stripping tail: 0.1-70mm
Stripping accuracy
Silent hybrid stepper motor 0.01mm
Intermediate strip
16 (can be customized)
Capacity
3000-8000 / h
Blade material
Imported tungsten steel / high speed steel
Power
AC110V/220V 50/60HZ
Dimension
470mm * 450mm * 350mm
Weight
31.5kg
Remark function
Automatic entry / exit, timing start, jog adjustment
Application for Automatic wire cutting stripping machine (0.1-6 mm²) EW-3095
