Wire Processing and Electrical Installation Equipment

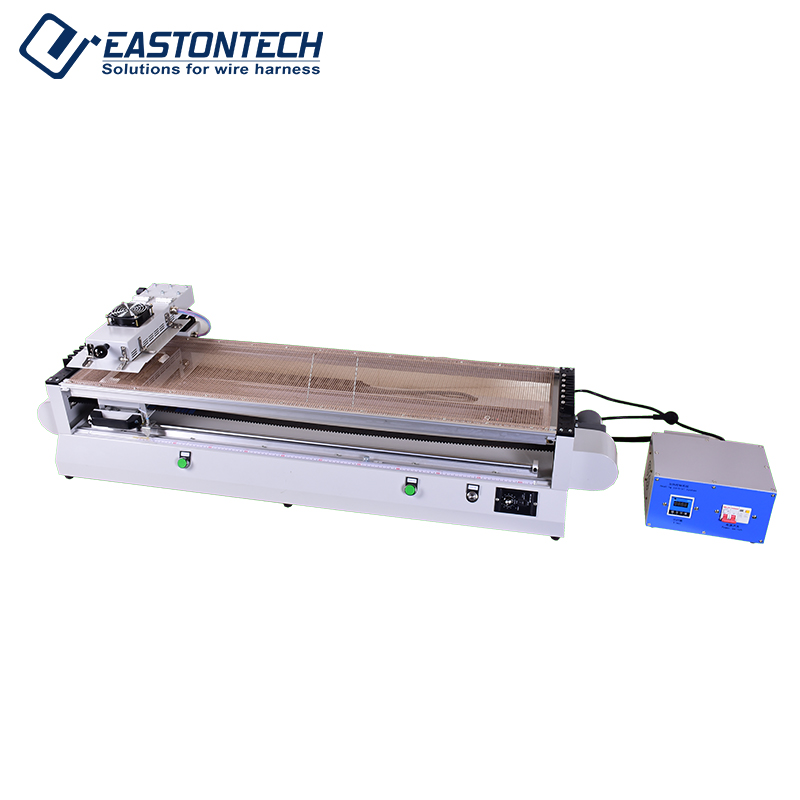

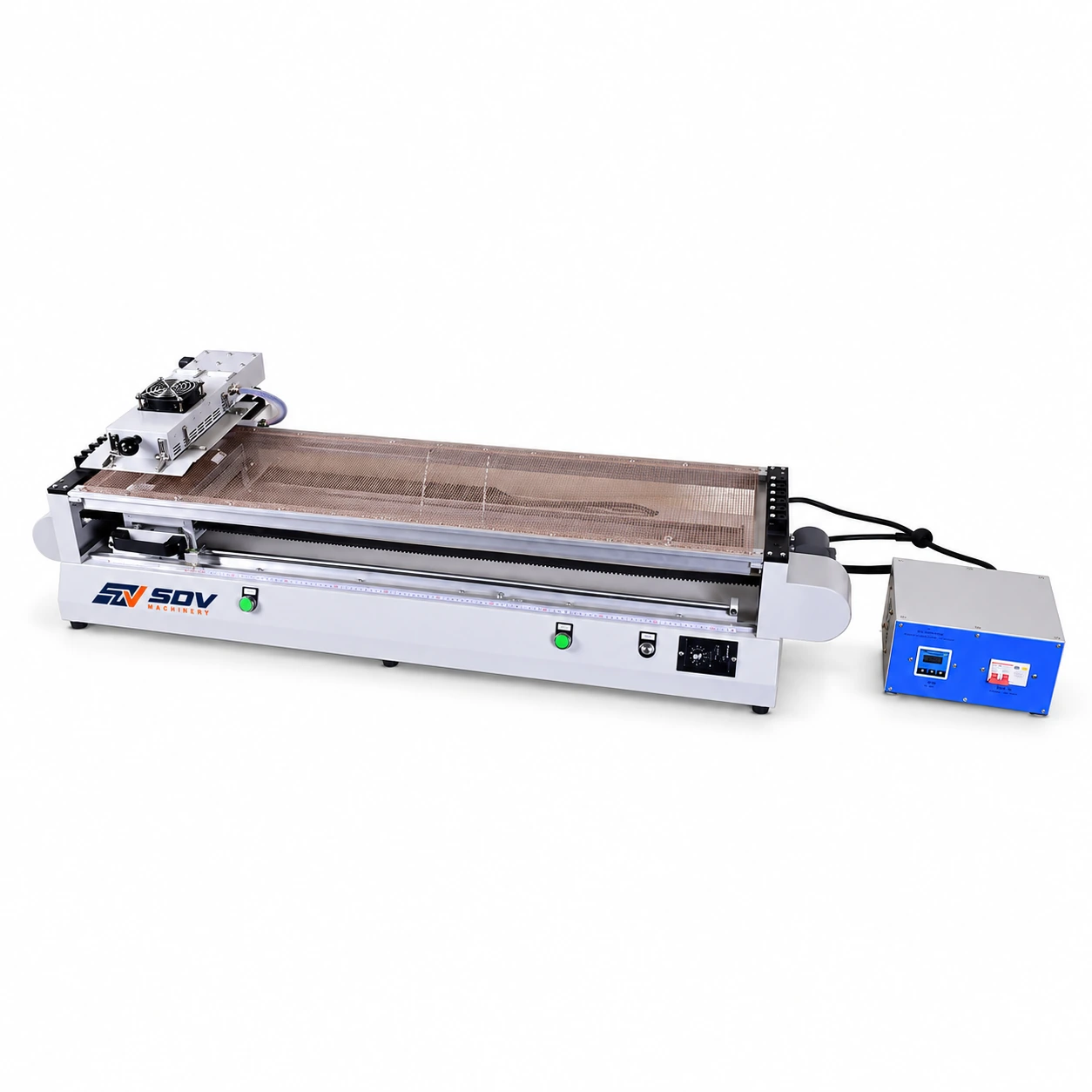

Long Wire Heat shrinkage Heating machine EW-1975

Price of the selected optionon request
Delivery options

Description

Feature

● Suitable for heating and shrinking heat shrink tubes with a length of ≤1000mm in wire harness processing enterprises. The travel and speed of the heater can be adjusted according to the production process requirements. It can work continuously for 24 hours without interruption.

● Infrared lamps are used as heat sources, and the upper and lower heaters are heated in a comparative manner. There are 2 heating tubes for each upper and lower heater. The upper heater is height adjustable and can be flipped up and opened.

● Connection and contraction of PE heat shrinkable tube, PVC heat shrinkable tube and double wall heat shrinkable tube with glue.

Specifications

Model
EW-1975
Heating wire diameter
≤30mm
Heating length
≤1000mm
Heat range
Width 45mm, length 145mm
Heater power
2000W (lamp 500W/pc,total 4pcs)
Overall machine power
2500W
Heater move speed
0~3.8meters/minute can be adjusted
Machine size
1555*458*382mm
Heating method
Infrared tube radiation,heating on both
Additional information
sides, local heating
Power supply
AC 220V 50HZ
Application for Long Wire Heat shrinkage Heating machine EW-1975
