Wire Processing and Electrical Installation Equipment

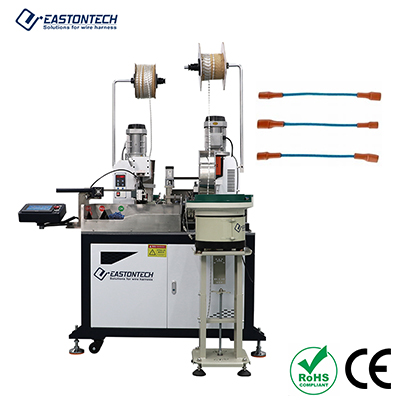

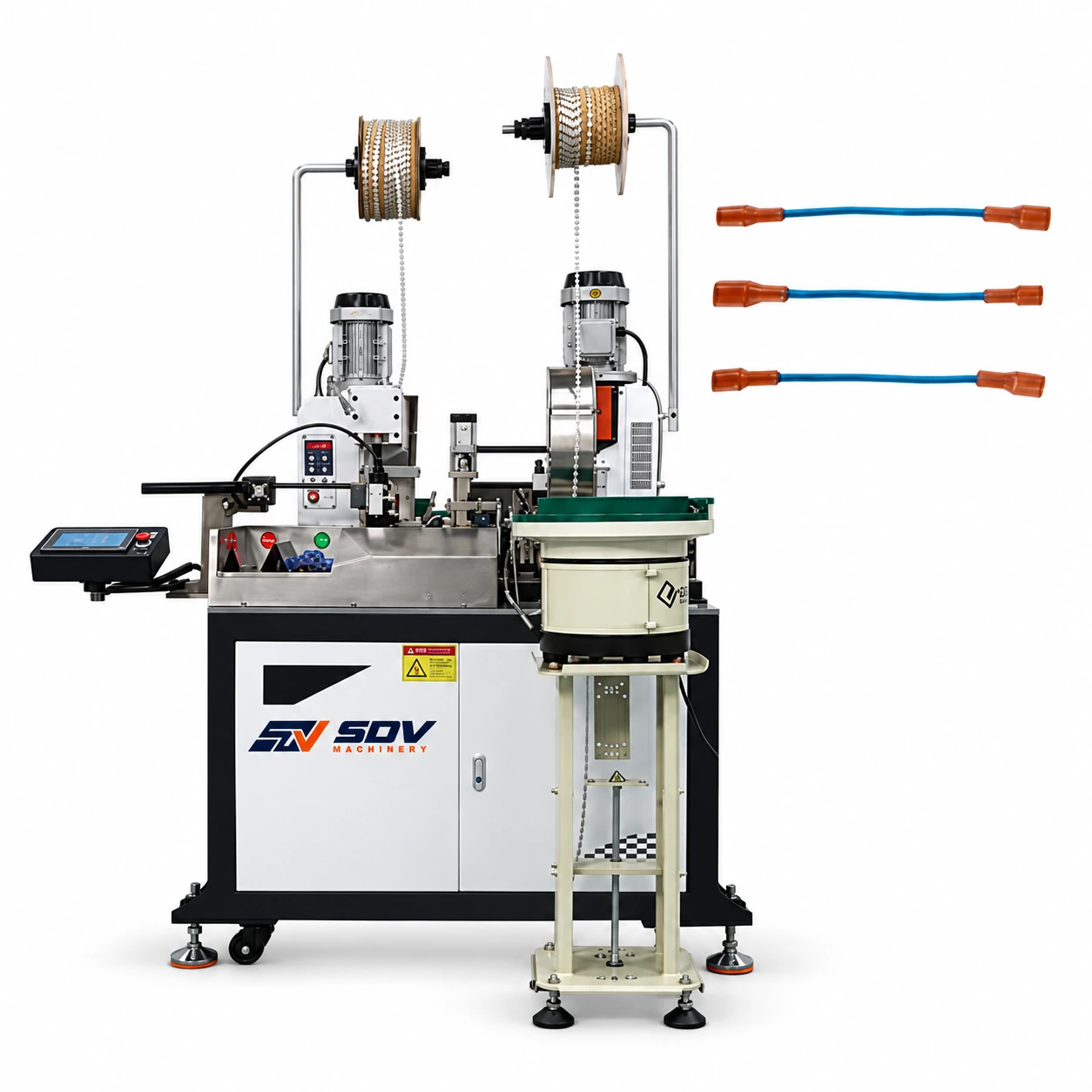

Full Automatic Terminal Insulation Sleeves Inserting and Crimping Machine EW-8935

Price of the selected optionon request
Delivery options

Description

Feature

● Equipped with state-of-the-art technology, this machine boasts a range of exceptional features. Its intuitive interface allows for easy operation, minimizing the learning curve and maximizing productivity. The machine's robust construction ensures durability and longevity, making it a reliable investment for your business.

● Our cable two ends crimping and single end plastic sleeve insertion machine offers unparalleled precision and accuracy. With adjustable settings, you can effortlessly customize the crimping and insertion process to meet your specific requirements. This flexibility guarantees consistent and high-quality results, reducing the need for rework and enhancing overall efficiency.

● Safety is paramount, and our machine prioritizes it. With built-in safety mechanisms, including emergency stop buttons and protective shields, operators can work confidently, knowing that their well-being is safeguarded. This attention to safety not only protects your workforce but also minimizes downtime due to accidents or injuries.

● Designed for versatility, our cable two ends crimping and single end plastic sleeve insertion machine accommodates various cable sizes and types. From small-scale projects to large-scale production, this machine adapts to your needs, ensuring compatibility and efficiency across the board.

Specifications

Model
EW-8935
Applicable wire range
0.3-6 mm²
Stripping length
1-15mm
Foot pedal start
N/A
Cutting length
50-9999mm
Capacity
1000-2000pcs/hour (Depends on wire material)
Terminal detection
Yes/No detectable
Sheath detection
Yes
Air pressure
0.5-0.7Mpa
Adapter sheath
187, 250, 110 and other straight pipe type sheath
Lack of wire detection
Yes/No detectable
Power
110V/220V/50HZ/60HZ
Dimension
1150*850*1850mm
Weight
400Kg
Options
CCD visual Inspection; CFM
Application for Full Automatic Terminal Insulation Sleeves Inserting and Crimping Machine EW-8935
