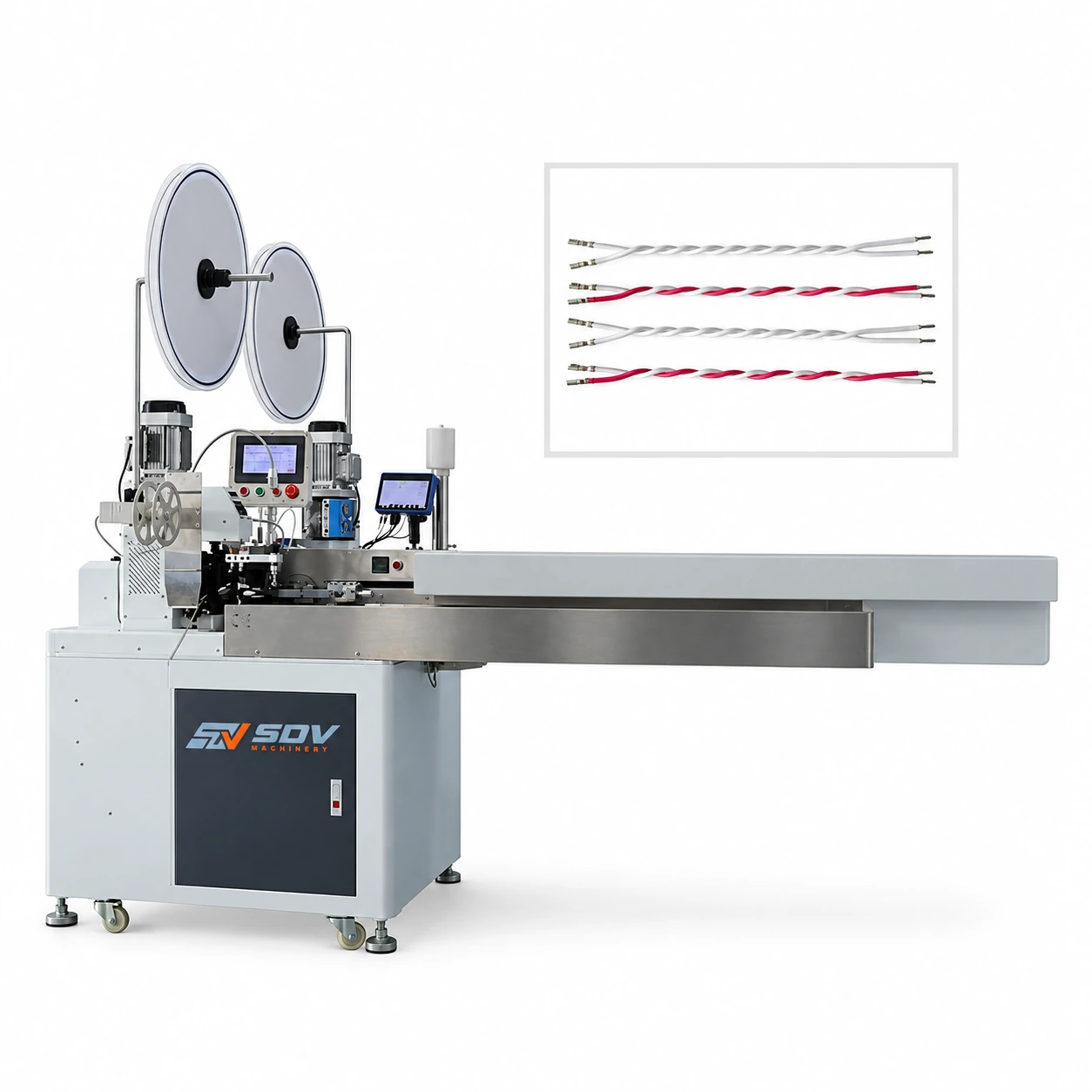

Fully Automatic Double Side Wire Crimping Twisting Mahine EW-8940

Price of the selected optionon request
Delivery options

Description

Feature

● Wire cutting, peeling, single/double end crimping, single end twisting, single end tin dipping, and stranding wire.

● The use of precision screw and servo motor for translational wire feeding has higher accuracy and greater force.

● 4 wires, 2 groups of wire can be stranded at a time. The cable clamp clamps the wire, and the motor drives the rotary rod to precisely strand wire.

● Can process various horizontal or straight terminals.

● The important parts all use motors, which are more stable and efficient.

Specifications

Model
EW-8940
Applicable wire range
AWG16-AWG32
Cutting length
45-1000mm
Stripping length
1.0-10mm
Foot pedal start
N/A
Terminals
1.0,1.25,PH2.0, XH2.54,SM,JC25,DuPont, VH3.96
Twisting length
Customized
Crimping force
2.0T
Productivity
1200pcs/hour(L=100mm)
Air pressure
0.5-0.7Mpa
Power supply
220V/110V/50HZ/60HZ
CFM
Optional
Weight
550Kg
Dimension
1880*1000*1550mm
