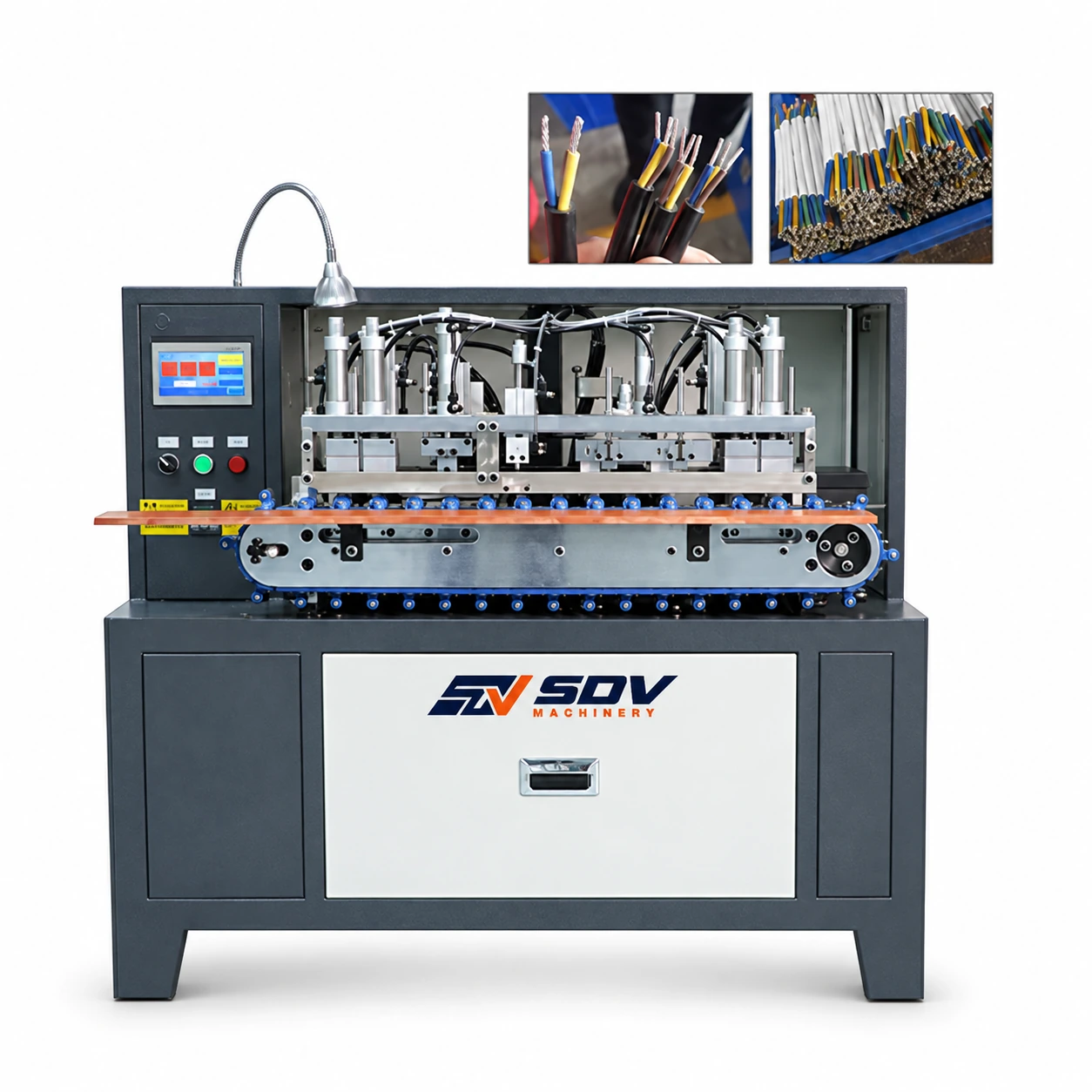

Wire stripping twisting and tinning machine(2.5-6.5mm OD) EW-702-2

Price of the selected optionon request
Delivery options

Description

Feature

● EW-702-2 wire stripping twisting and tinning machine contains core wire separating,long-short peeling and auto-welding.

● Parameter interface:set welding time,cool time,solder feeding time,solder feeding speed,etc.

Specifications

Model
EW-702-2
Wire diameter
2.5-6.5mm(Round sheathed wire, for three core)
Additional information
Max stripping length (longer
length can be customized)
Outer:15-45mm(15-95mm can bu customized)
Inner
2-15mm
Soldering(Tinning) size
2mm-15mm
Production capacity
2200-2500pcs/h
Dimension
1200*700*1000mm
Voltage
AC 220V 60Hz
Air source
Clean dry compressed air
Working pressure
0.5-0.8Mpa
Weight
280KGS
Foot Pedal
N/A
Application for Wire stripping twisting and tinning machine(2.5-6.5mm OD) EW-702-2
