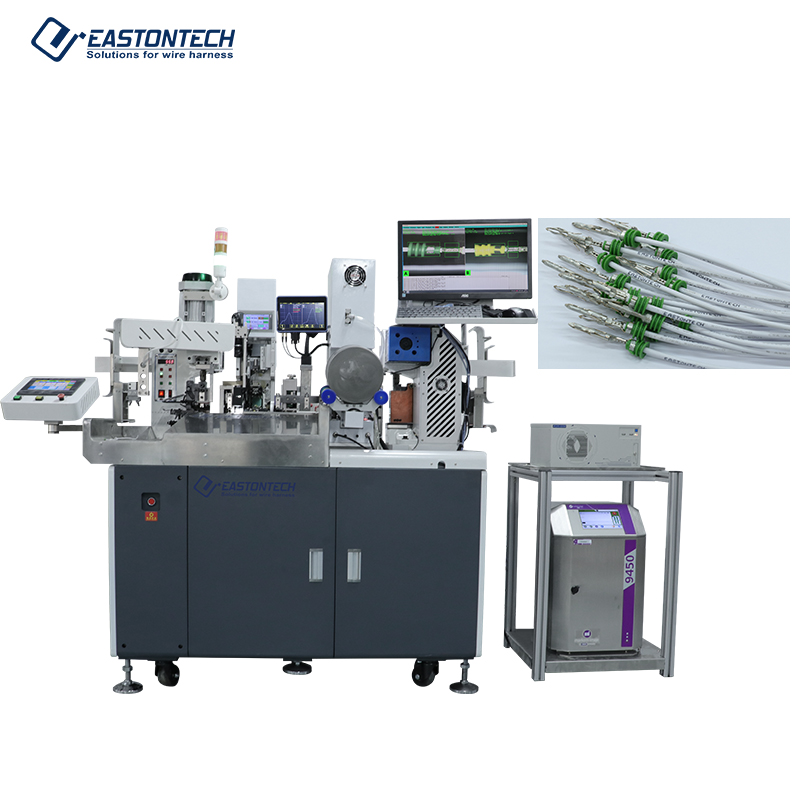

Automatic Double-end Terminal Crimping & Waterproof Plug Inserting Printing Machine(AWG28-18) EW-8285+P

Price of the selected optionon request
Delivery options

Description

Feature

● Full servo motor, high precision.

● Driven by screw rod, with servo motor, precise movement and fast speed.

● Optional CFM/CCD, real-time monitoring of the crimping effect. Poor quality products will be picked out and put in another pile.

● Insert waterproof plug first and then strip. Advantages: 1. Fast running speed 2. No damage to copper wire.

Specifications

Model
EW-8285+P
Applicable wire range
AWG28-AWG18
Stripping length
Head:0-18mm,Tail:0-20mm
Cut precision
±0.1(0.1+0.003*L)mm, L=cut length
Cutting length
45-9999mm
Capacity
1300-1800pcs/hour
Crimping force
2.0T
Applicators
30mm or 40mm strokes for optional
Air pressure
0.4-0.6Mpa
Detection
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power
220V/110V/50/60HZ
Display language
Chinese/English
Dimension
1700*920*1580mm
Weight
600Kg
Power cord plug
European, USA, Chinese plug
