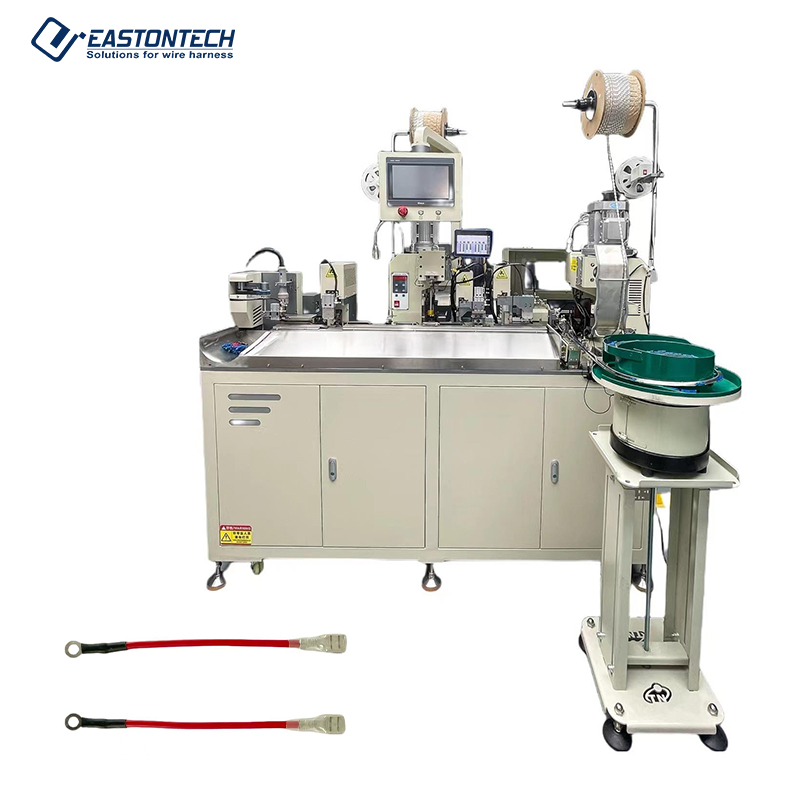

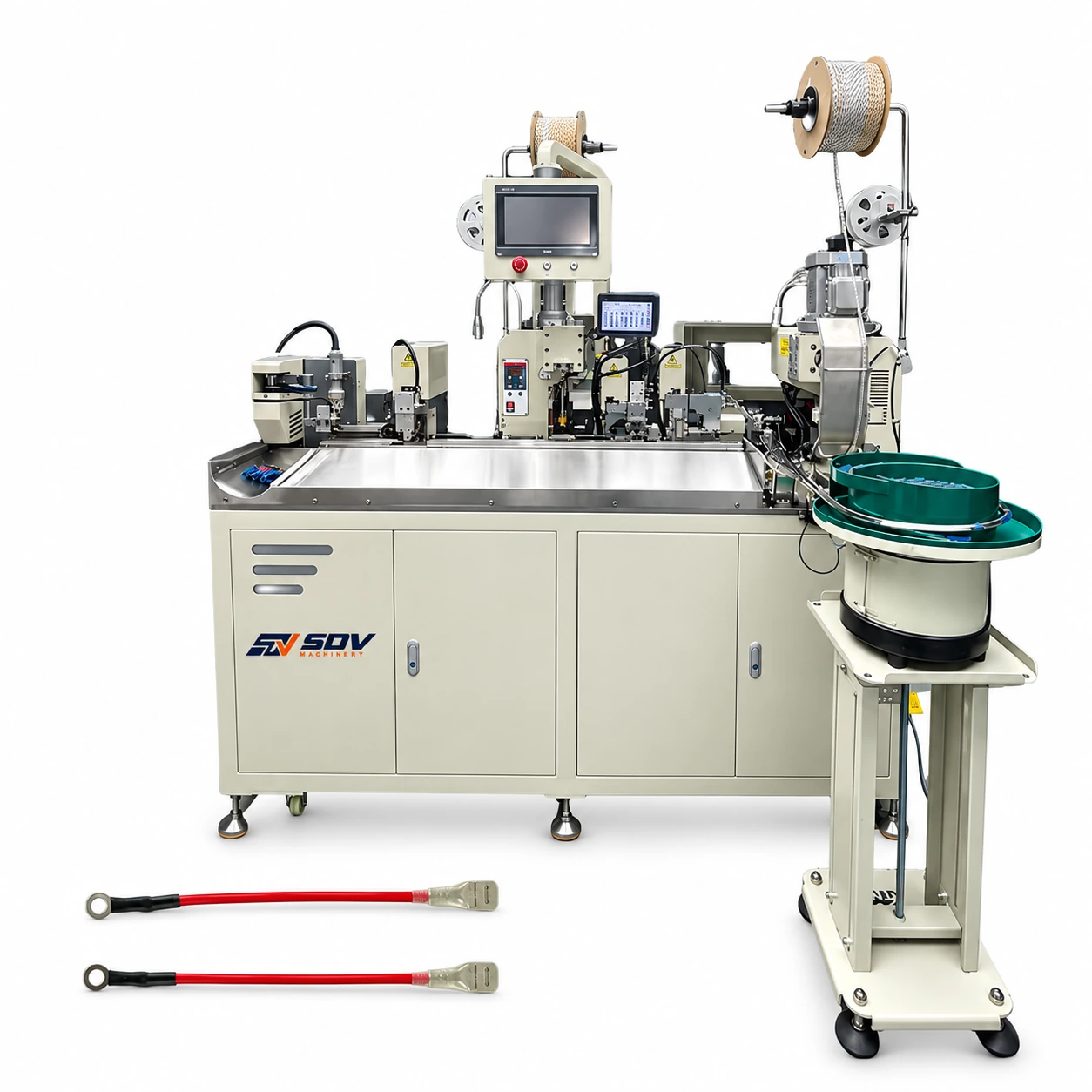

Automatic Heat Shrink Tubing& Sleeve Insertion Machine EW-8945

Price of the selected optionon request
Delivery options

Description

Feature

● Good stability: The crimping end adopts eccentric shaft and cam structure, the crimping force of the terminal is balanced, the crimping of the terminal is neat, and the consistency is good.

● High precision: Servo motors are used to control cutting, peeling, pressure end positioning, shell feeding, shell piercing, and precise positioning.

● Simple operation: touch screen operation, easy parameter setting and operation, easy to understand at a glance, ordinary employees only need simple training, and one person can operate several devices.

Specifications

Model
EW-8945
Applicable wire range
AWG24-AWG10
Stripping length
1-15mm
Cutting length
80-9999mm
Capacity
1500-1600pcs/hour(L=80-100mm)
Applicators
30mm or 40mm strokes for optional
Air pressure
0.5-0.7Mpa
Detection
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power
220V/110V/50/60HZ
Function
Wire cutting, single (double) end stripping, single (double) end crimping, single end heat penetration
Additional information
Shrink tube, single-end heat shrink, single-end sheath, single (double) tube terminal (customized)
Machine Dimension
1750*750*1850mm
Weight
750Kg
Pedal
No
Application for Automatic Heat Shrink Tubing& Sleeve Insertion Machine EW-8945
