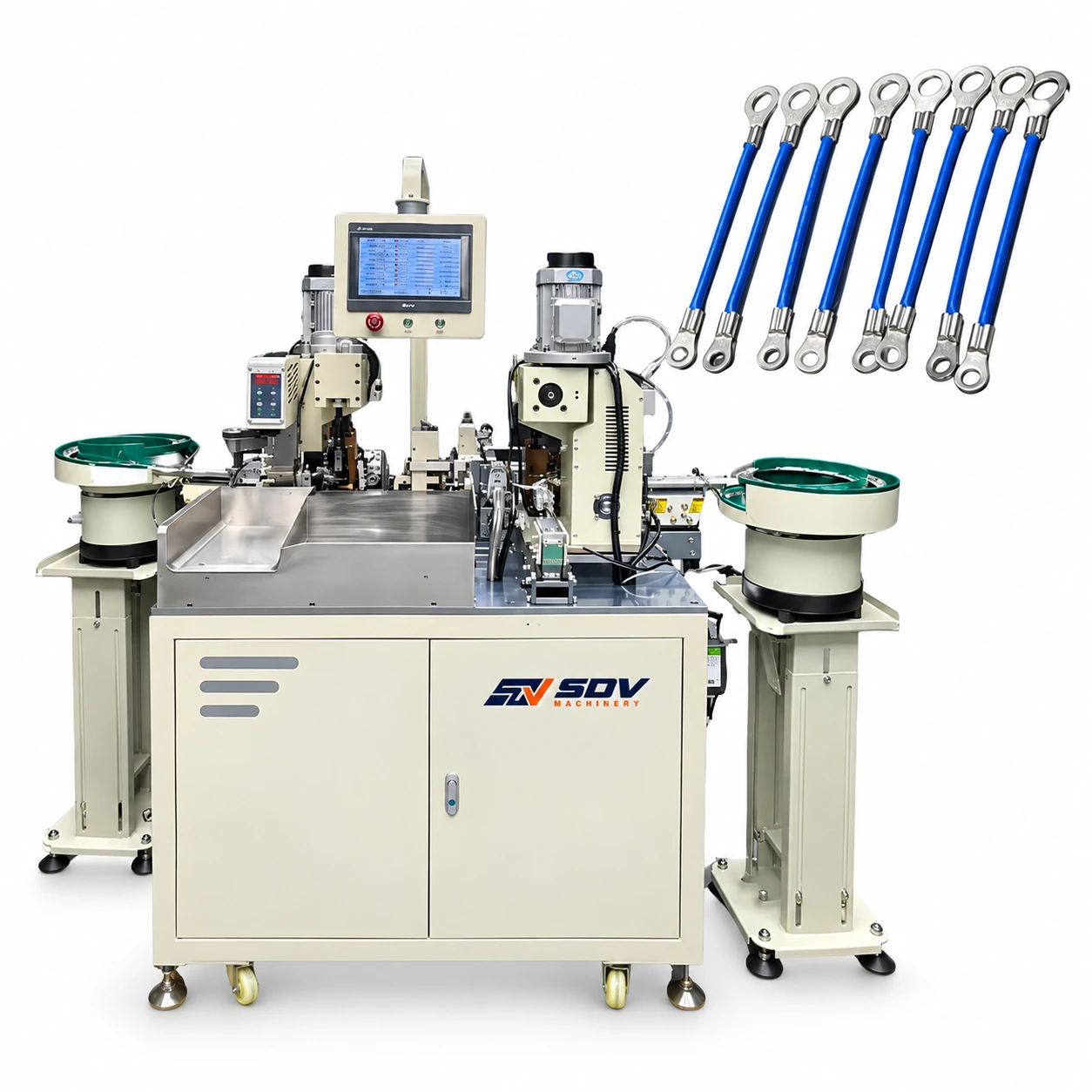

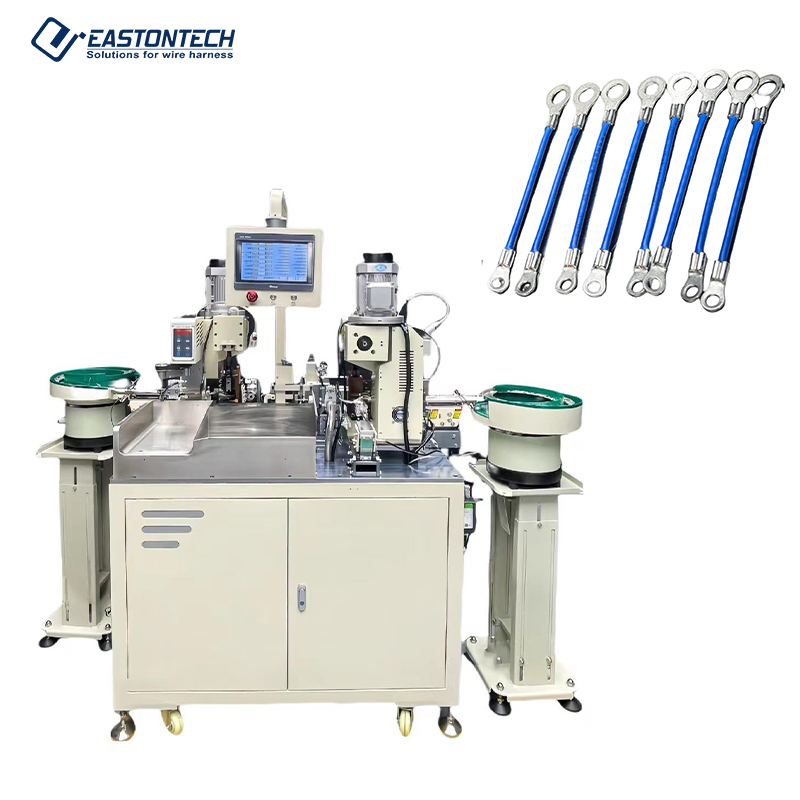

Automatic Double heads Insulated Terminal crimping machine EW-8955

Price of the selected optionon request
Delivery options

Description

Feature

● Good stability: The crimping end adopts eccentric shaft and cam structure, the crimping force of the terminal is balanced, the crimping of the terminal is neat, and the consistency is good.

● High precision: Servo motors are used to control cutting, peeling, pressure end positioning, shell feeding, shell piercing, and precise positioning.

● Simple operation: touch screen operation, easy parameter setting and operation, easy to understand at a glance, ordinary employees only need simple training, and one person can operate several devices.

Specifications

Model
EW-8955
Applicable wire range
AWG24-AWG10
Stripping length
1-15mm
Cutting length
50-9999mm
Capacity
1000-2000pcs/hour
Applicators
30mm / 40mm
Air pressure
0.5-0.7Mpa
Detection
Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power
220V/110V/50/60HZ
Function
Wire cutting, single (double) end stripping, single (double) end crimping
Machine Dimension
1150*850*1850mm
Weight
750Kg
Pedal
No
Application for Automatic Double heads Insulated Terminal crimping machine EW-8955
