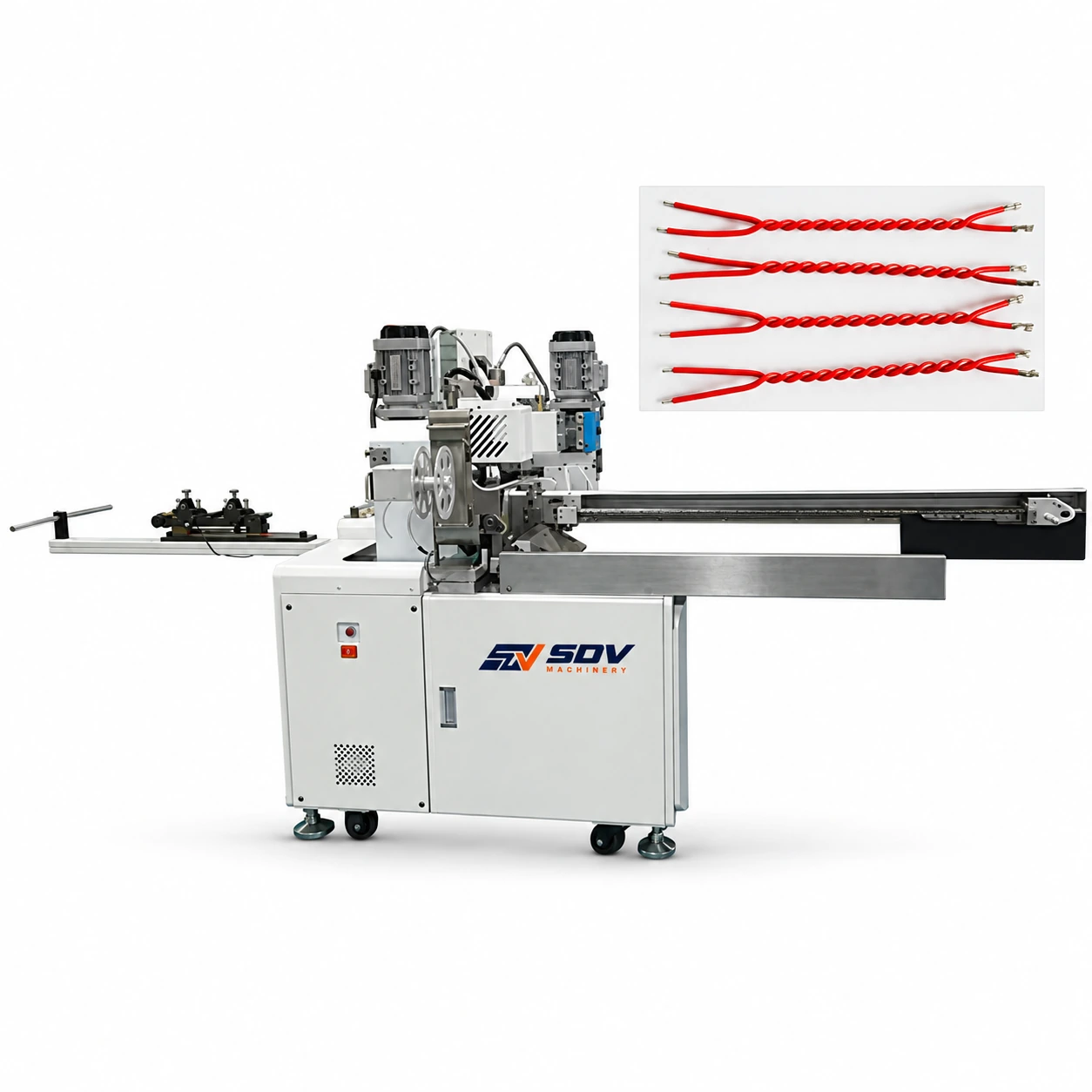

Automatic Double heads wire crimping twisting machine EW-8960

Price of the selected optionon request
Delivery options

Description

Feature

● The rear end wire drawing fixed length mode ensures accurate wire cutting and stripping, and neatly stored wires.

● The tool holder is a grinding screw double guide servo, and the rubber is scraped by suction and the rubber is clean.

● The tool holder, front and rear end translation, air clamp, etc. are all hard precision grinding parts with long service life.

Specifications

Model
EW-8960
Applicable wire range
AWG30-AWG16
Stripping length
Front 8.5, end 11.5
Cut precision
±0.1(0.1+0.005*L)mm,L=cutting length
Cutting length
50-1100mm
Capacity
1300pcs/hour (not twist, L=100mm)
Additional information
800-950pcs/hour (twist, L=100mm)
Crimping force
2.0T
Stroke
30mm/40mm
Air pressure
0.5-0.7Mpa
Detection
Low air pressure,Wire run-out, Wire overload, Terminal run-out,Terminal overload, Crimp error
Power
220V/110V/50/60HZ
Dimension
2100*1250*1520mm
Weight
550KGS
Application for Automatic Double heads wire crimping twisting machine EW-8960
