Wire Processing and Electrical Installation Equipment

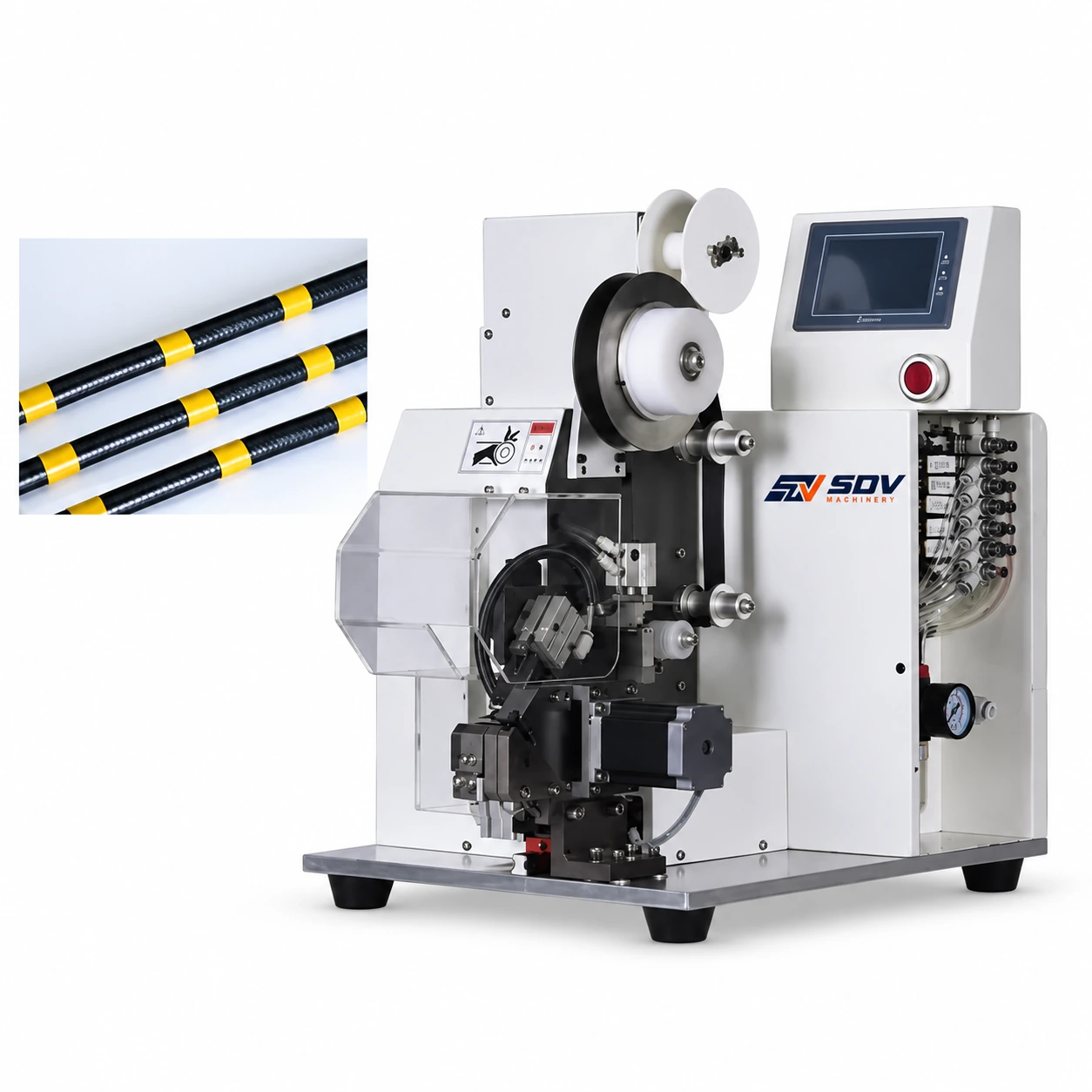

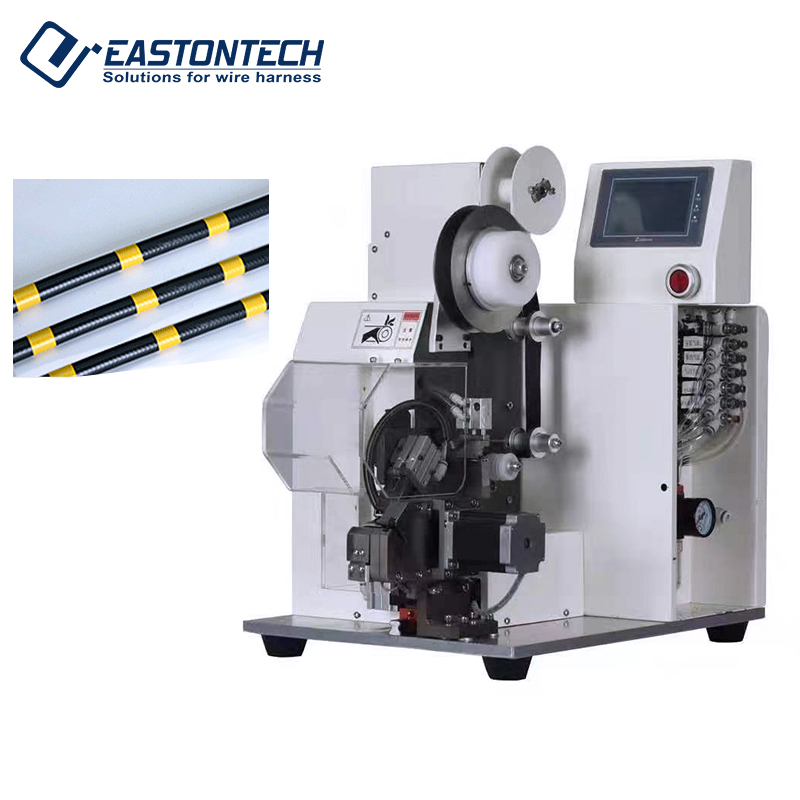

15 Long Tape Wrapping Machine EW-1825

Price of the selected optionon request
Delivery options

Description

Feature

● This equipment is suitable for winding wire harnesses with smaller diameters.

● The principle of pulling tape is adopted, which makes the tape more versatile and has better feeding and winding stability when used on narrower tapes.

● The shortest tape cutting length is 15cm, which is more targeted.

● The operation is simple and convenient, which can significantly reduce the labor intensity of workers.

Specifications

Model
EW-1825
Wrapping outer diameter
2-4 mm
Tape outer diameter
≤ 130 mm
Tape width
≤20 mm
Tape material
PVC, PET, masking paper, cloth-based tape, etc.
Total length
≥110mm
power supply
AC220V,50HZ
Power
150W
Working mode
Pneumatic(0.4-0.6mpa)
Efficiency
20 pieces/min
Dimension
1450*350*580mm
Net Weight
45 kg
Application for 15 Long Tape Wrapping Machine EW-1825
