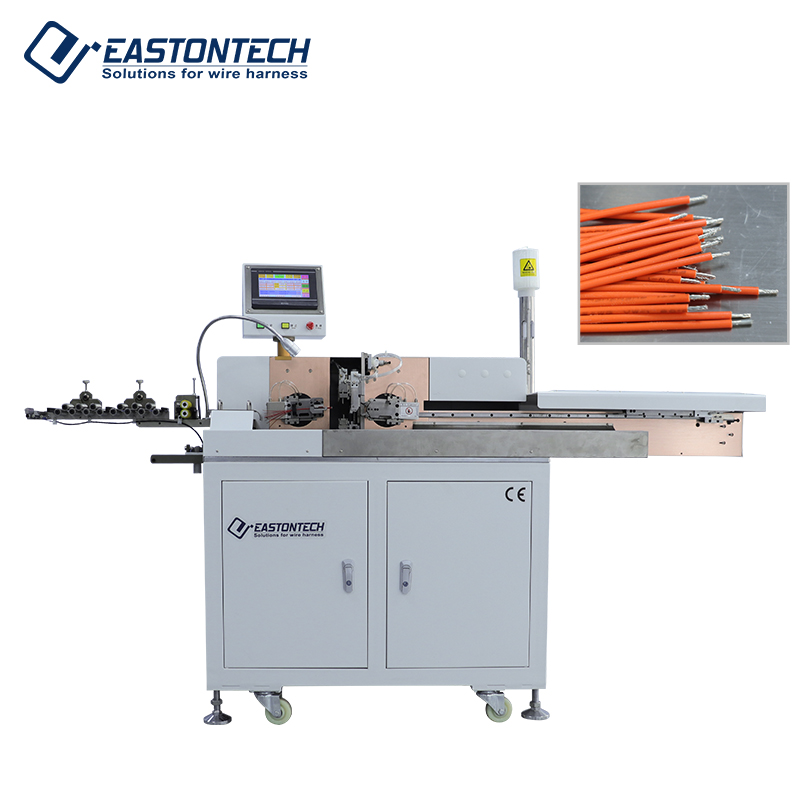

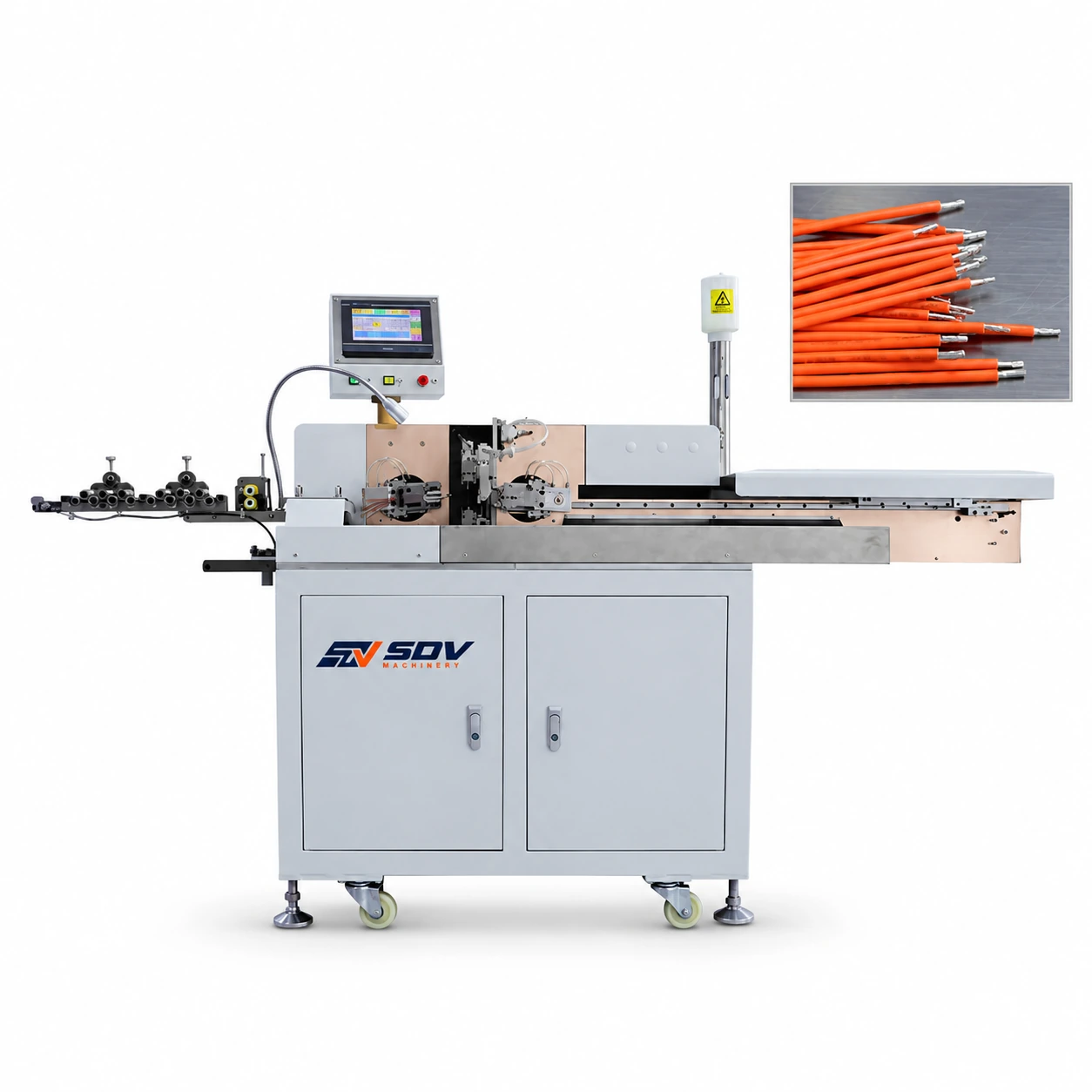

Feature
● Unmatched Parallel Production Yield: Blasts out an industry-leading capacity of 6,000 to 15,500 pieces/hour by executing multi-wire simultaneous processing:
○ AWG 32 - AWG 28: Processes 10 wires at the same time.
○ AWG 26 - AWG 24: Processes 8 - 9 wires at the same time.
○ AWG 22 - AWG 20: Processes 6 - 7 wires at the same time.
○ AWG 18 - AWG 16: Processes 4 - 5 wires at the same time.
● Micro-to-Medium Wire Flexibility: Seamlessly handles a wide spectrum of wiring harness profiles from ultra-fine AWG 32 up to AWG 16.
● High-Precision Digital Calibration: Maintains a strict mechanical cutting tolerance within ±(0.03 * L) mm (L = cut length) across a highly adjustable programmable cutting length of 10mm to 830mm.
● Micro-Programmable Finishing: Allows operators to digitally dial in absolute finishing specifications via the touchscreen control interface:stripping length (1-12mm), twisting length (2-10mm), and tinning length (0.5-11mm).
● Zero-Defect Industry 4.0 Add-ons: Upgradable with optional high-definition CCD Visual Inspection and CFM systems to perform 100% real-time automated quality logging for stripping accuracy and tinning defects.
● Robust & Global Plug-and-Play: Anchored on a heavy-duty 380Kg vibration-dampening chassis (17207501450mm). Fully dual-voltage ready for global grids (110V/220V, 50/60Hz) operating under standard 0.4-0.7Mpa factory air pressure.
Application Range
● Consumer Electronics & Ribbon Cables: The definitive choice for the mass production of multi-conductor ribbon cables, board-to-board internal jumper wires, and terminal connector leads used in smartphones, appliances, and smart home tech.
● Aviation, Medical & Signal Arrays: High-precision parallel preparation of fine-gauge multi-core data bundles requiring completely flawless, uniform twisting and micro-tinning.
● Automotive Sub-Harnesses: Prepares high-volume micro-sensor wiring loops and dashboard instrumentation clusters under rigorous automated visual inspection protocols.
