Feature

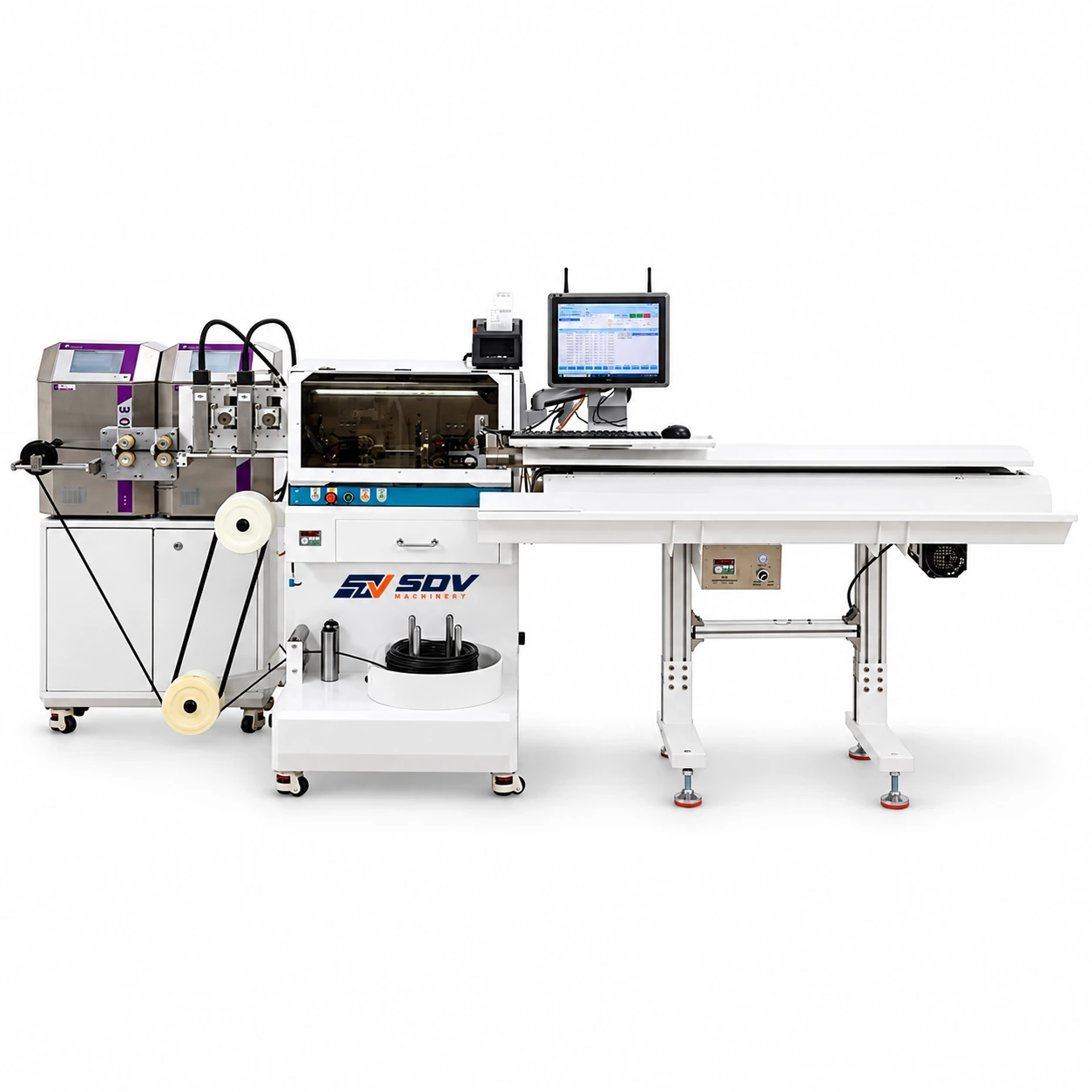

● Inline Dual-Inkjet Coding: Equipped with two integrated inkjet printers supporting white, black, or custom-colored inks for immediate, permanent coding directly onto cable jackets. This advanced inline setup eliminates post-process labeling costs and guarantees perfect, smudge-free wire traceability.
● Versatile Multi-Core Capability (2-10 Cores): Efficiently processes single-core wires, PVC, Teflon, flat modular phone lines, and sheathed cables containing 2 to 10 inner cores up to an outer diameter of 18 mm. It achieves high-speed processing rates of up to 2000 pcs./h for single-core wires and 900 pcs./h for multi-conductor cables.
● Mark-Free 16-Roller Belt Feed: Utilizes a synchronized 16-roller drive system paired with high-traction belts and programmable digital gap controls. This distributed-grip design delivers massive pulling power for heavy wire spools while leaving zero indentations or scratches on delicate outer jackets.
● Micro-Tolerance Cutting & Stripping: Delivers exceptional cutting accuracy with a length tolerance of less than 0.002 * L (where L represents total cutting length) for lengths up to 999,999.9 mm. High-grade imported high-speed steel blades perform deep jacket stripping up to 800 mm and inner core stripping up to 200 mm.
● Smart HMI & Automated Calibration: Controlled via a vibrant 7-inch color touch screen that allows operators to digitally program cutting lengths, strip depths, and printer settings in seconds. The automated wire feeding device dynamically adjusts to prevent slipping and ensure stable running accuracy.
Application Range
● Automotive Control Panels: Manufacturing pre-coded electrical wiring harnesses for instrument clusters, engine bays, and chassis control boxes.
● Industrial Control Cabinet Assembly: Processing multi-core power and communication cables requiring clear, sequential, and alphanumeric line labeling.
● Consumer Appliances & HVAC: High-volume cutting, stripping, and coding of internal power supply leads and multi-core sensor cabling.
● Contract Wire Harness Manufacturing: High-mix, low-volume production lines looking to replace manual heat-shrink sleeve labeling with rapid digital printing.
