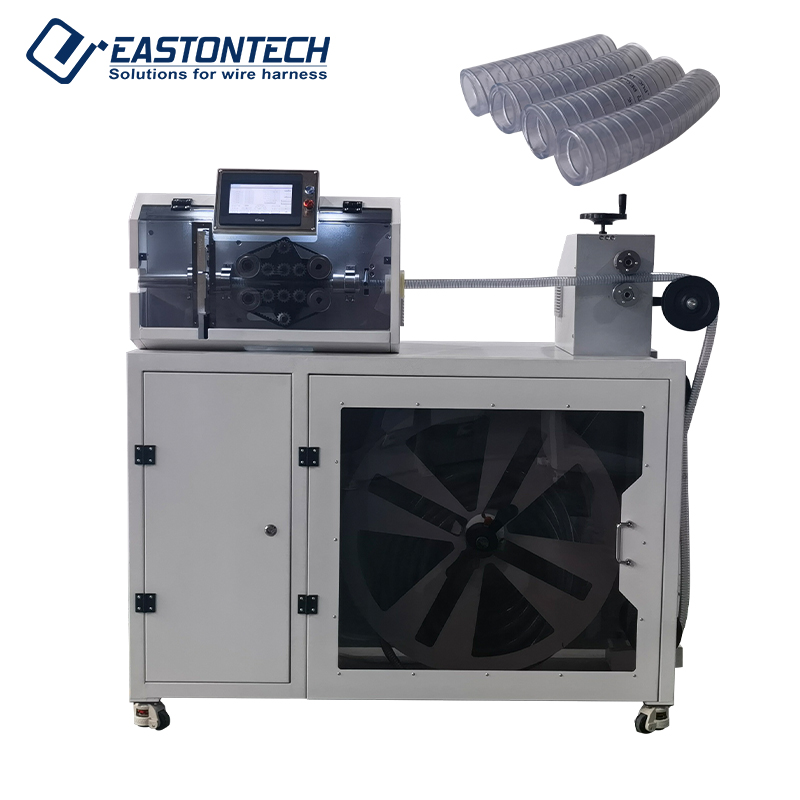

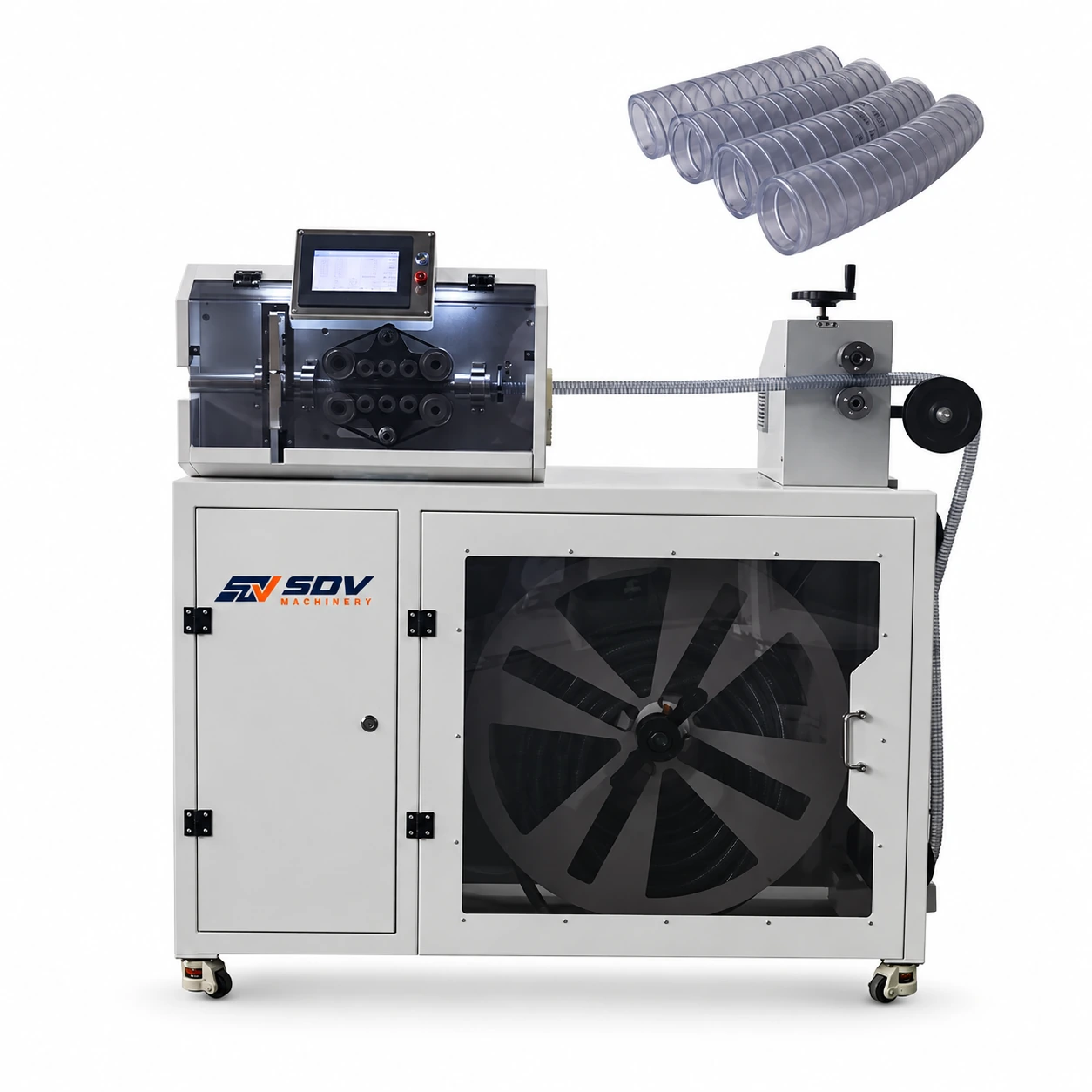

Automatic Stainless Steel Tube Cutting Machine With Feeding Device EW-1335

Price of the selected optionon request
Delivery options

Description

Feature

● Optional: MES System,Internet Of Things system, fixed-point inkjet function, mid-stripping function, external auxiliary equipment alarm.

● User-friendly system, intuitive operation via 7-inch color touch screen.

● Modular interface, convenient for linking accessories and peripheral equipment.

● Modular Design, future upgradeable.

● A variety of additional options can customize the system. Special pipe processing can be customized.

Specifications

Model
EW-1335
Applicable tube OD
Max.35mm
Cut length
60-99999mm
Feeder range
120-850mm
Feeding speed
Depends on cutting machine, adjustable
Control mode
Inverter stepless speed regulation
Productivity
2500~ 3500 pcs/hour
Air pressure
0.5-0.7Mpa
Foot pedal start
N/A
Weight
260KGS
Power Supply
220V/110V/50HZ/60HZ
Dimension
1550*650*1400mm
Application for Automatic Stainless Steel Tube Cutting Machine With Feeding Device EW-1335
