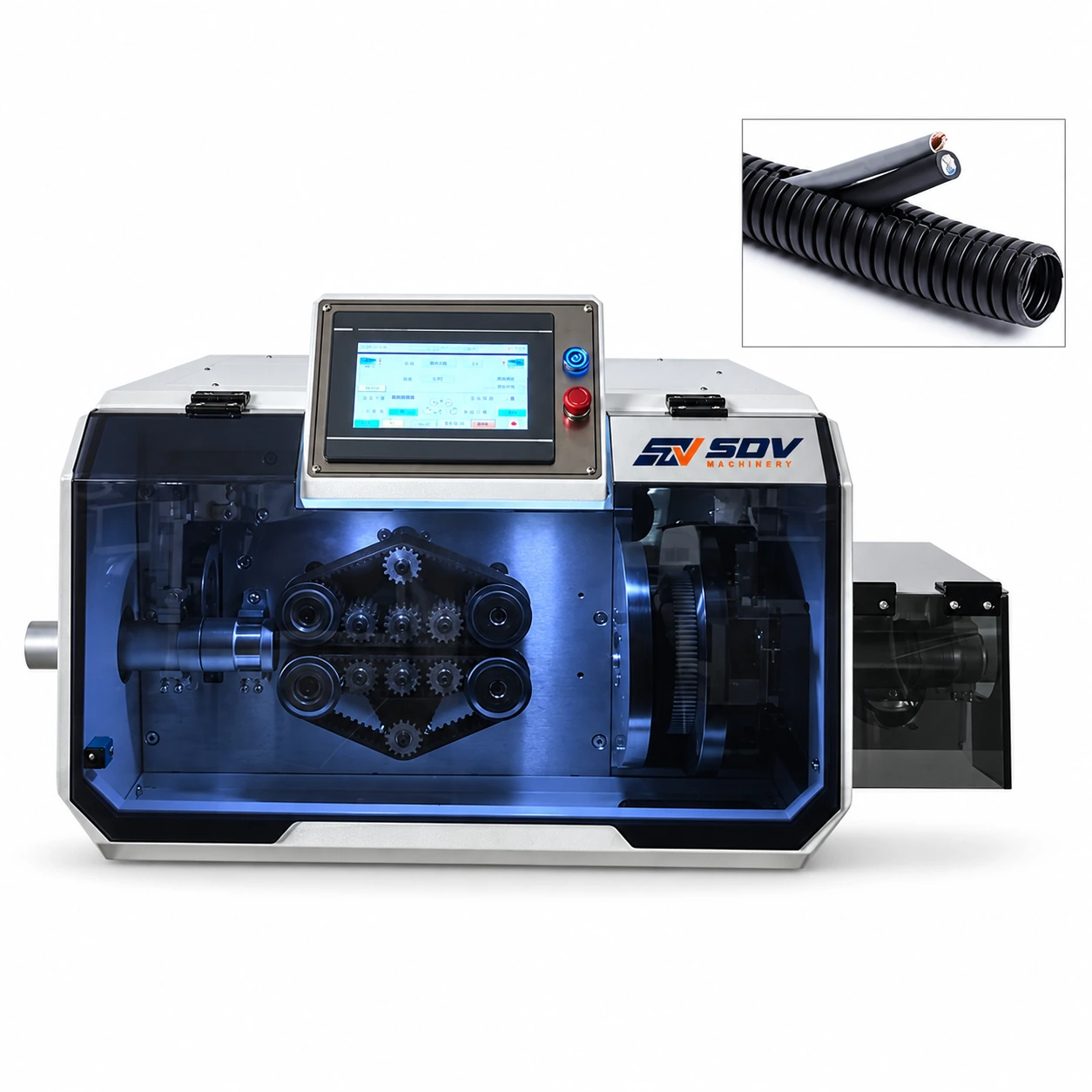

Automatic Corrugated Tube Punching and Cutting Machine EW-1340

Price of the selected optionon request
Delivery options

Description

Feature

· Optional: MES system, IoT system, fixed-point coding function, intermediate peeling function, external auxiliary equipment alarm.

· User friendly system, which can be operated intuitively through a 7 "color touch screen.

· Modular interface, convenient for linking accessories and peripheral devices.

· Modular design, upgradable in the future.

· Various optional accessories, customizable system. Special pipe processing, can be customized non-standard.

Specifications

Model
EW-1340
Tube diameter
4-35mm
Cut length
1mm-999999.99mm
Cut precision
<0.005*L mm, L=cut length
Tube material
Corrugated pipes/PVC pipes/heat shrink tubes, etc.
Feeding speed
Max. 8.0m/s
Productivity
3000 PCS/h
Additional information
Maximum guide tube
diameter
Φ35
Driving Mode
Servo motor cutting with 10 roller driving system
Foot pedal start
N/A
Display Mode
7 inch human-machine interface
Feeding mode
Belts feeding with pressure stripping function
Power Supply
220V/110V 50HZ/60HZ
Additional information 2
Lifting and lowering
operation method
Digital adjustment of the pressure roller height
Additional information 3
Punch spacing
adjustment method
Digital adjustment
Additional information 4
Punching hole diameter
adjustment method
Replace the punch
Weight
115kg
Dimension
82*48*55m
Power
1800W
