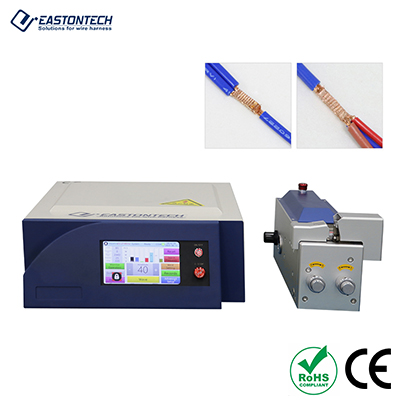

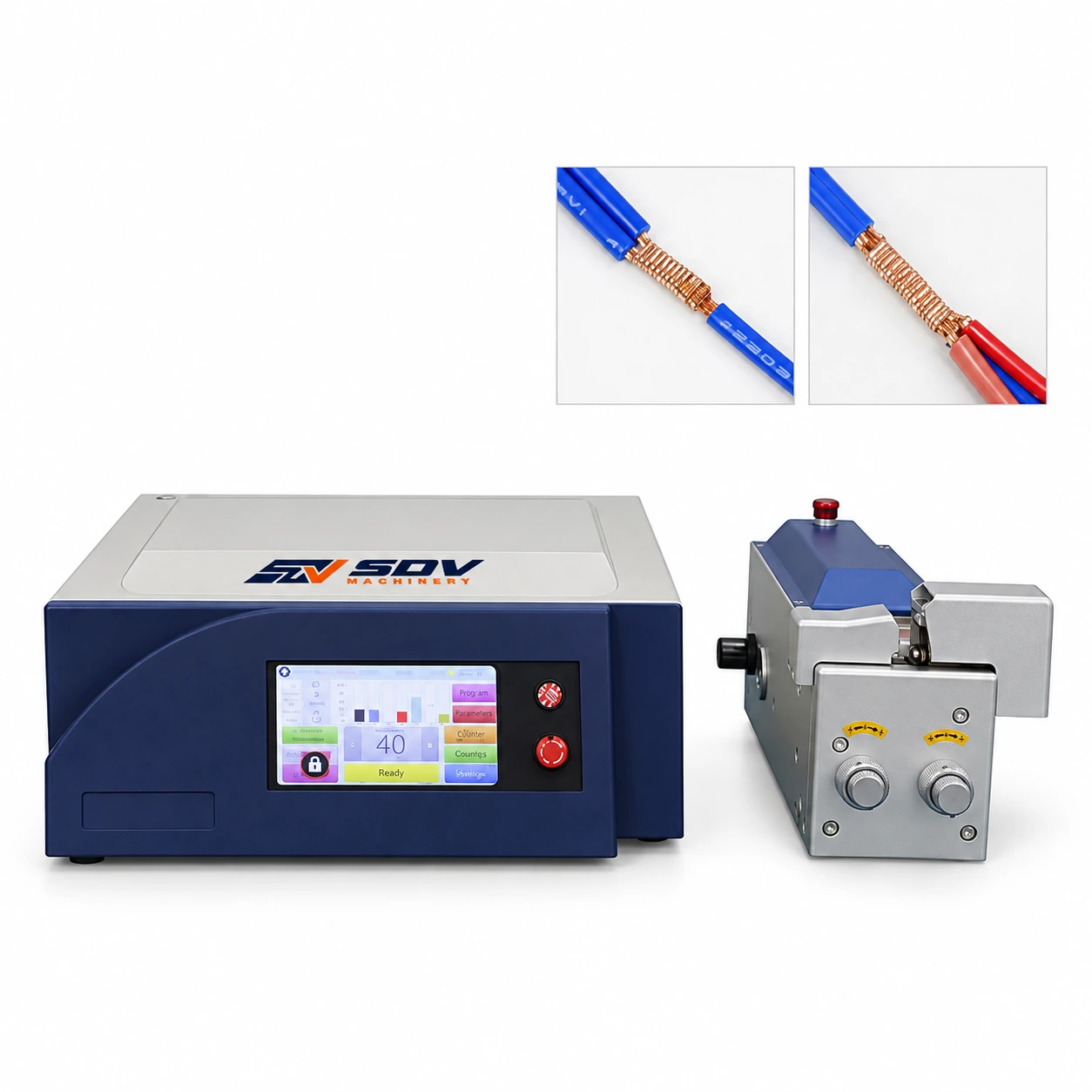

Ultrasonic Wire Welding Machine (0.5-20 mm²) EW-6040

Price of the selected optionon request
Delivery options

Description

Feature

● Digital circuit, time mode, adjustable amplitude, automatic frequency tracking, intelligent protection, medium/medium switching when welding workpiece falls.

● Automatic frequency tracking (truly fully automatic frequency tracking, no need to adjust frequency when changing heads)

● Dynamic indication of welding current, use time, power, amplitude and other parameters are displayed.

● Frequency and overcurrent protection can be manually adjusted during welding

● Precision linear guides can ensure smooth operation of the equipment and optimal welding accuracy

● The power box maintains stable output when the voltage fluctuates. Advantages: short welding time, high efficiency, fast welding time, energy saving. Good conductivity after welding, high strength and zero resistance. No need to add any solder. No sparks, no smoke, safe.

Specifications

Model
EW-6040
Language selection
Chinese/English
Input voltage
220V
Control mode
MCU
Maximum output power
6000W
Operating frequency
20HZ
Welding time range
0.3-2S
Welding area range
0.5-20 mm²
Operating humidity
0-40°
Working air pressure
0.2-0.8Mpa
Ambient temperature
20-70
Bracket dimensions
46*15*14cm
Electrical box dimensions
58*18*46cm
Machine weight
40KGS
Pedal Start
YES
Application for Ultrasonic Wire Welding Machine (0.5-20 mm²) EW-6040
