Wire Processing and Electrical Installation Equipment

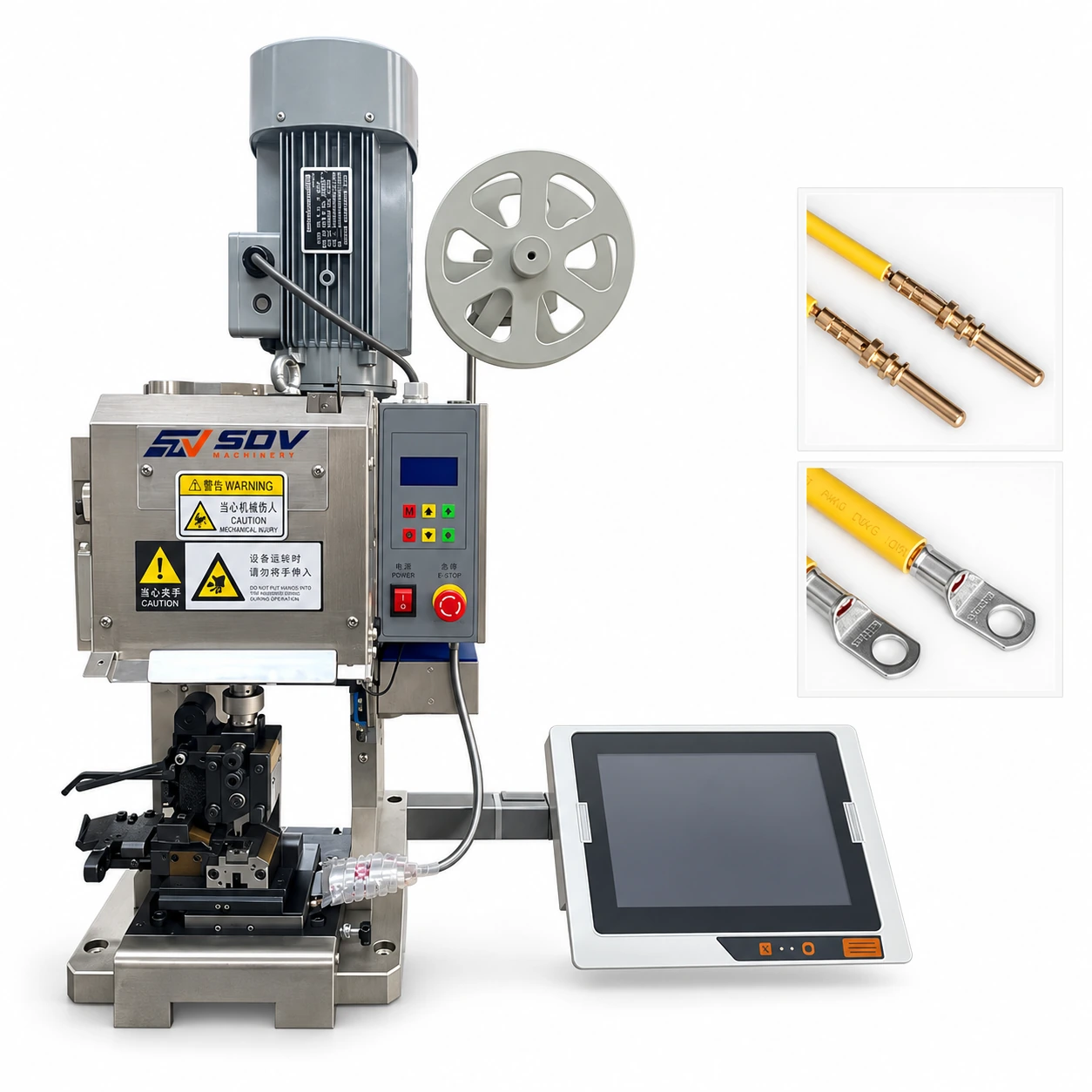

4T Bench Top Crimper with smart software(0-4/6/14mm²) EW-5195+S

Price of the selected optionon request
Delivery options

Description

Feature

● Quick changeover, setup and cycle times.

● Flexiblity adaptation between different type of applicators.

● Optional function: Integrated crimp force analysis CFA / CFA+.

Specifications

Model
EW-5195+S | EW-5195-4TS | EW-5195-8TS
Wire Size
0-4mm² | 0-6mm² | 0-14mm²
Adjustment
10mm/6mm | / | /
Closed height(Optional)
Japan mold:119.7mm
EU mold
135.78mm
Stamping mold
192mm+10mm
Stroke
30mm/40mm
Rated Power
0.75KW | 1.5KW | 3.0KW
Power Supply
220V/110V, 50HZ/60HZ
Weight
85KGS | 130KGS | 240KGS
Dimension
350*350*700mm | 360*360*840mm | 450*420*1010mm
Application for 4T Bench Top Crimper with smart software(0-4/6/14mm²) EW-5195+S
