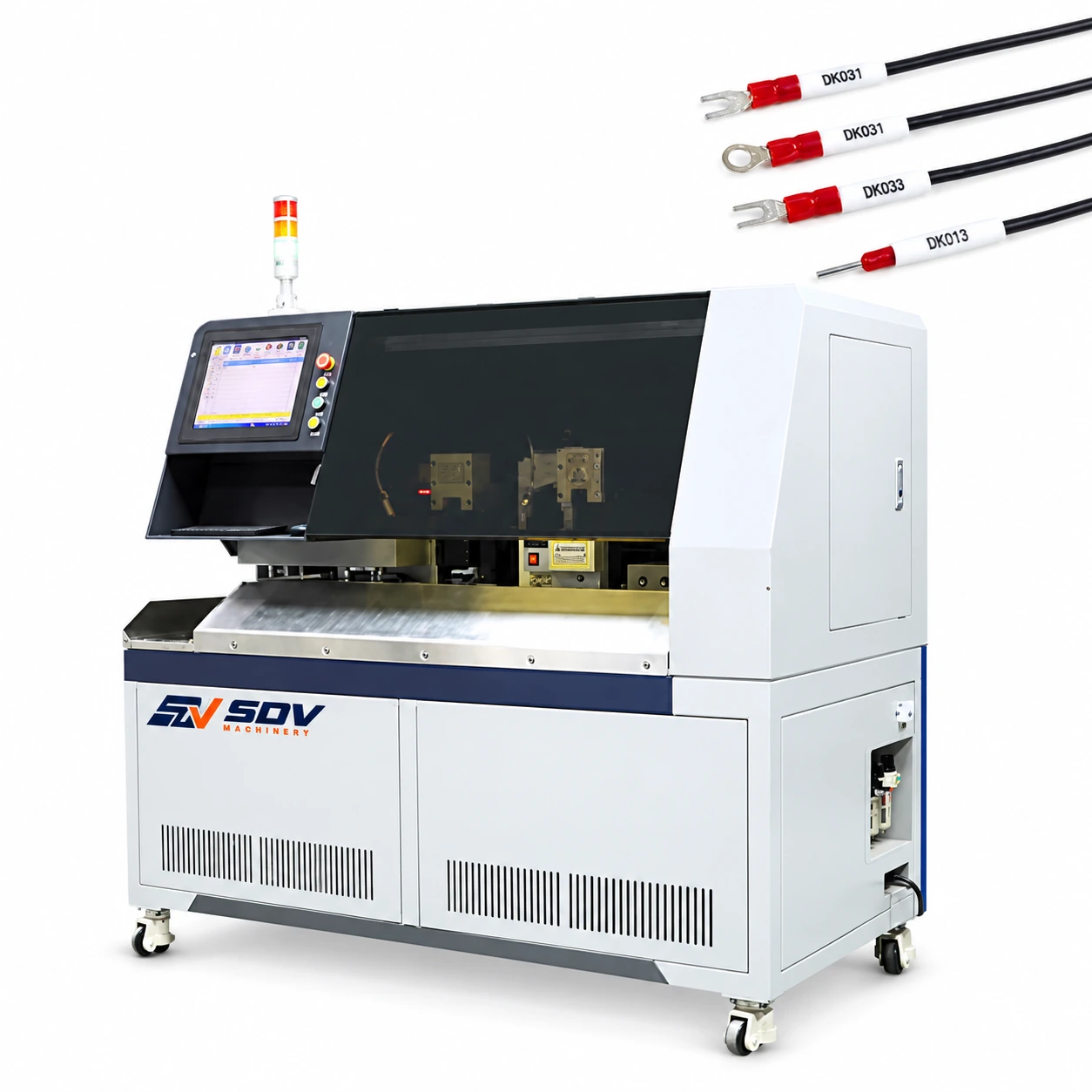

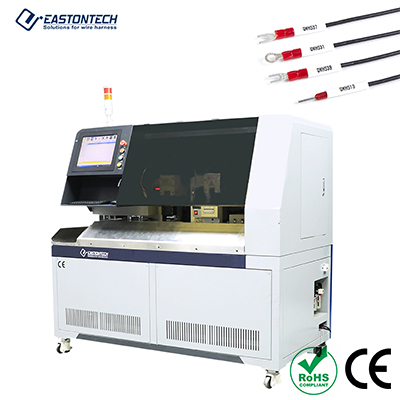

Wire cut strip crimp and tube marking insert machine EW-8995

Price of the selected optionon request
Delivery options

Description

Feature

● 0.45 square meters without mold replacement.

● Support dual line printing.

● The compatibility between the number tube and the wire is between 0.4mm,tightly connected.

●Industrial Computer

The processing data can be imported through Excel, which is fast and efficient, truly achieving zero errors, saving consumables and labor.

●Multi-function

Marking tubes,cutting wires,stripping wire,crimping terminals,insert making tube,all on one machine.

Specifications

Model
EW-8995
Wire range
0.5mm²-4.0mm²
Stripping length
0.1-15.0mm
Cutting length
260-9999mm
Crimping force
2T
Compressed air connection
0.5-0.7Mpa
Capacity
400-500pcs/h (depends on wire material)
Length accuracy
±(0.002*L)mm
Printing program
Standard printing
Additional information
Print 19 characters with a 30mm segment length and enable dual line printing
Number tube length
15-30mm
Number tube
Direction and position can be freely set (in accordance with wiring standards)
Detection
whether there are wires
Additional information 2
whether the wires are too tight
Additional information 3
whether the wires are tangled
Additional information 4
whether there is abnormal pressure peeling
Additional information 5
whether the air pressure drops,
Additional information 6
whether there are terminals
Additional information 7
whether the terminals are crimped
Peal
No
Power
600W
Power supply
110V/220V/50HZ/60HZ
Dimension
1850mm*1530mm*1657mm
Application for Wire cut strip crimp and tube marking insert machine EW-8995
