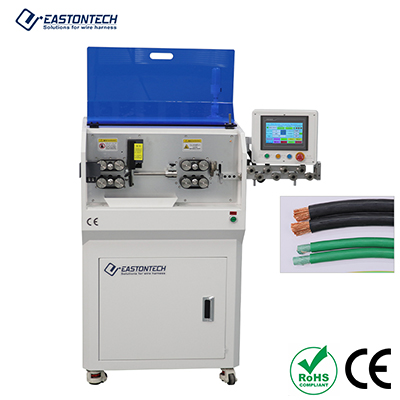

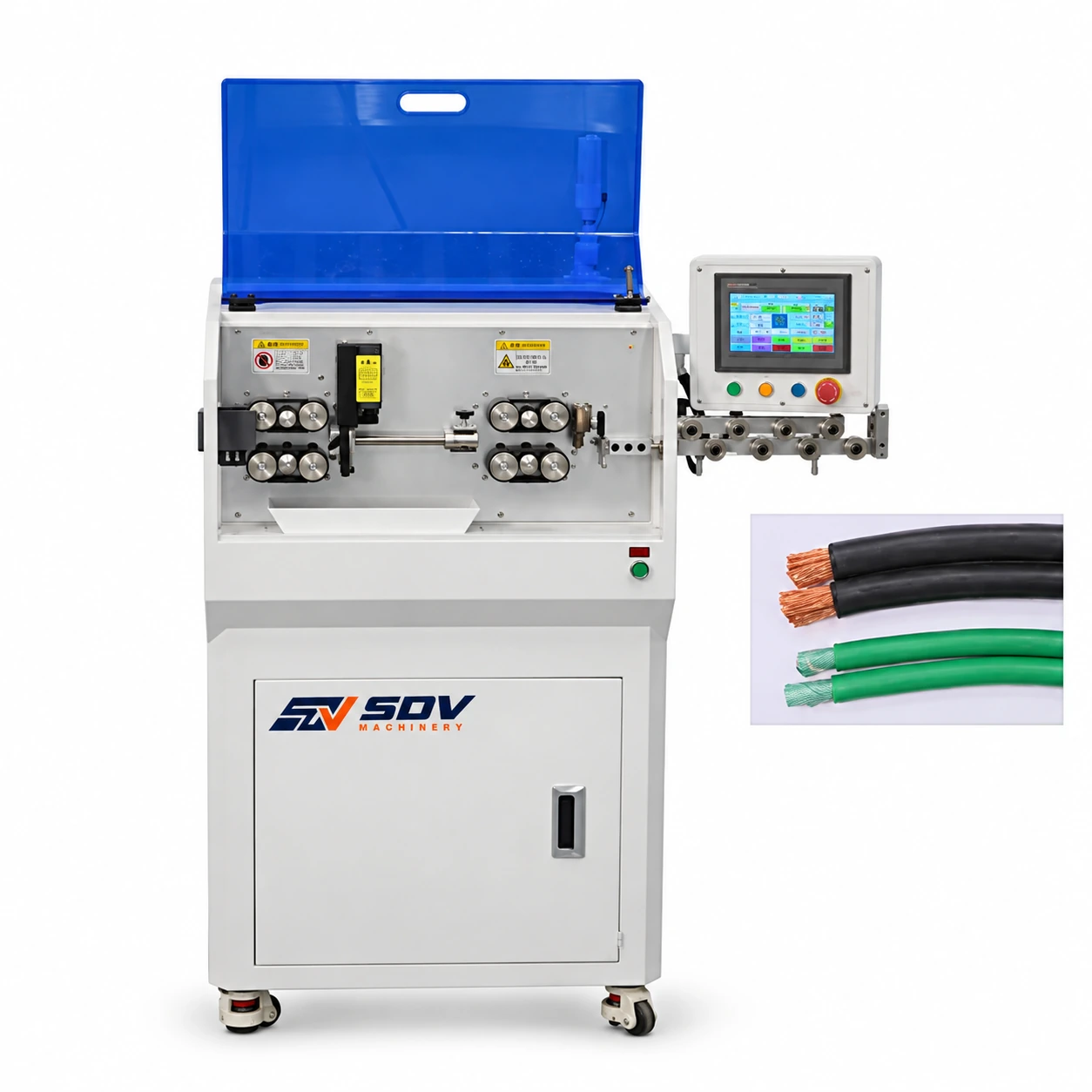

70 mm² Cable Cutting and Stripping Machine EW-05D+T

Price of the selected optionon request
Delivery options

Description

Feature

● This machine adopts 12 wheels drive, strong power, bilateral pressure wheels, to ensure that the center point of large and small wires is consistent; belt feeding system can ensure that the surface of the wire without damage is widely used in the products of power cables, sheathing wires, soft and hard wire processing.

● The pressing strength of the inlet and outlet wheels can be set directly in the program without manually adjusting the pressure of the wheels.

● color touch screen operator interface, the parameters intuitively easy to understand, only a simple training can quickly operate the machine; the machine also has a three-layer stripping program, can be divided into three layers of stripping, or stripping the length of the longest stripping up to three times stripping; to provide 100 groups of program memory function, can be stored in different processing parameters of the wire in a different number of the program.

● It can be added with center stripping, line splitting, scratching and coding machine.

Specifications

Model
EW-05D+T
Wire material
Wide range of industrial wires
Conductor cross-section
1.5-70 mm² (Sheathed wire O.D. 18mm)
Cutting length
0-999m
Cutting length tolerance
< 0.002 * L
Stripping length (side I)
0 - 400 mm
Stripping length (side II)
0 - 180 mm
Slitting function
Optional
Guide tube diameter
20 mm, 16mm, 12mm, 8mm
Driving mode
12-roller with belts driving
Display mode
7-inch color touch screen PLC
Memory capacity
100 programs
Blade meterial
High speed steel
Productivity
800 - 1200 pcs./h
Power supply
110, 220 V (50 - 60 Hz)
Power
800 W
Weight
145kg
Dimension
700 * 640 * 1100 mm
Application for 70 mm² Cable Cutting and Stripping Machine EW-05D+T
