Wire Processing and Electrical Installation Equipment

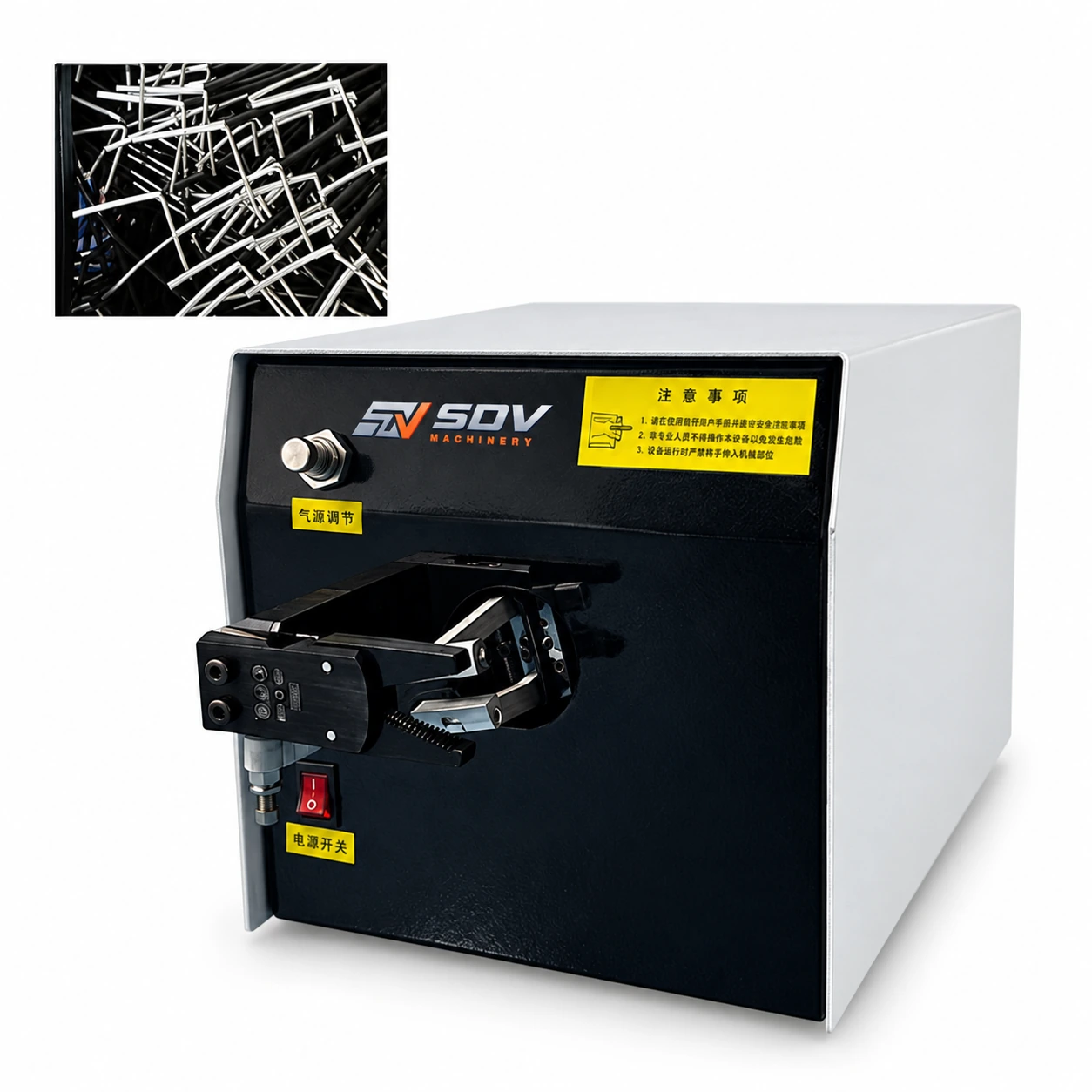

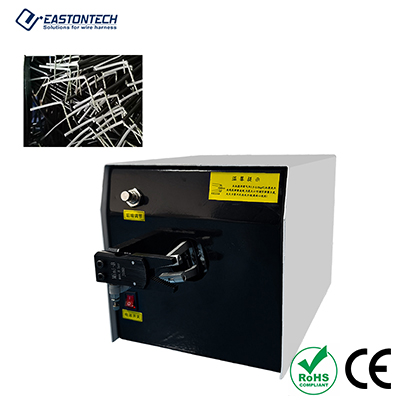

Cable Shield Braid Twisting Machine with positioning clamp EW-10WT-2

Price of the selected optionon request
Delivery options

Description

Feature

● The positioning clip is used to make the wire twisting effect more precise.

● The operation interface is clear and easy to understand.

Specifications

Model
EW-10WT-2
Air pressure
1.5-2.5kg/CM2
Motor power
10W Speed 1400 rpm
Twist length
5-80mm (customizable to 200mm)
Twist range
0.1-2 mm²
Power supply
220V/110V AC 50HZ
Dimensions
L340×W190×H210mm
Weight
11KGS
Pedal start
Yes
Application for Cable Shield Braid Twisting Machine with positioning clamp EW-10WT-2
