Wire Processing and Electrical Installation Equipment

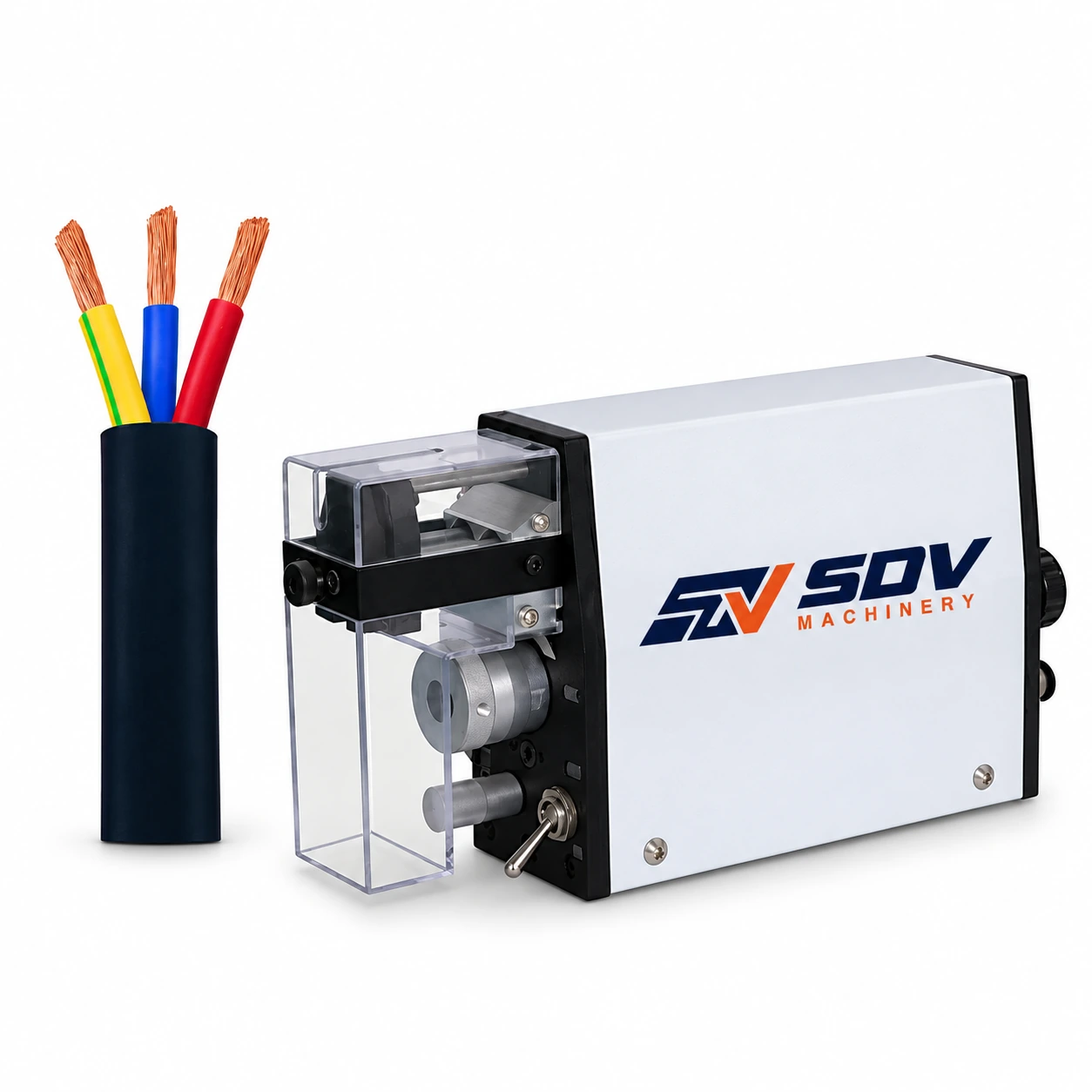

Pneumatic Cable Stripping Machine 0.03 – 4 mm² (AWG32 – AWG11) EW-10MT-1

Price of the selected optionon request
Delivery options

Description

Feature

● Extremely short cycle times,Strips very short cables.

● No blade change necessary.

● Pneumatic wire and cable stripping machine and the perfect solution for stripping discrete wires and small multi-conductor cables.

● Professional wire stripping machine,simple operation.

● Quality Assurance. Robust & reliable.

Specifications

Model
EW-10MT-1
Wire Size Range
0.03 – 4 mm² (32 – 11 AWG)
Max. Outer Cable Diameter
5.0 mm
Stripping Length Increments
Partial strip: 0.5 mm Full strip: 2 mm
Precision of Diameter Setting
0.01 mm
Max. Strip Length
20 mm
Cycle Time
approx. 0.4s
Dimensions (L x W x H)
265 x 70 x 135 mm
Weight
2.2KGS
Air Pressure
0.55Mpa-0.8Mpa
Application for Pneumatic Cable Stripping Machine 0.03 – 4 mm² (AWG32 – AWG11) EW-10MT-1
