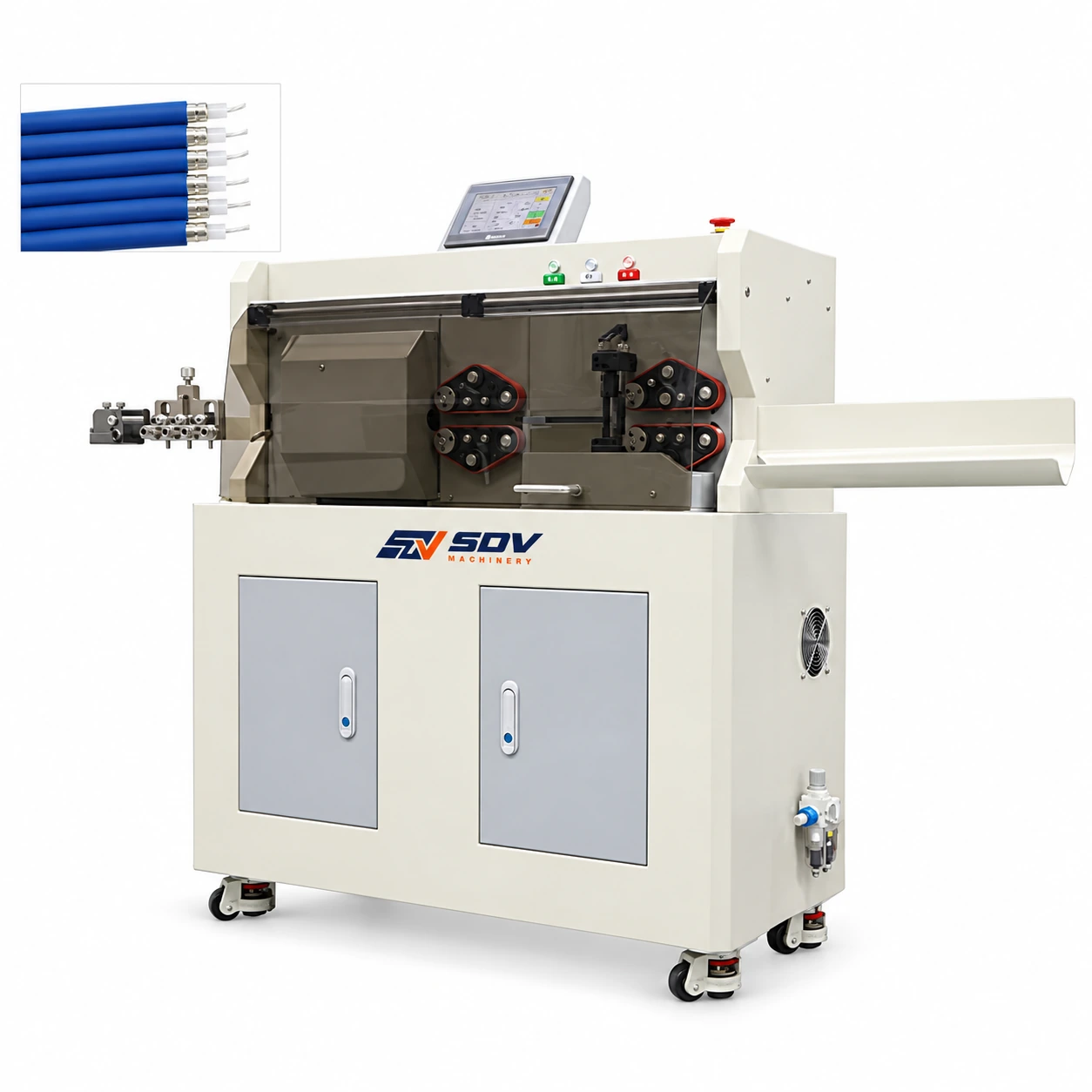

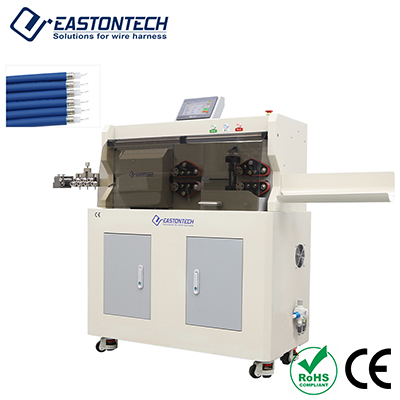

Automatic Coaxial Cable Cutting & stripping Machine(3-15mm) EW-06H-6

Price of the selected optionon request
Delivery options

Description

Feature

● Mainly used for single-layer or multi-layer processing of wire

● Precision rotating blade and switchable mobile blade group, combined with servo drive, achieve precise automatic length setting, rotary cutting, and peeling

● High precision, flat cutting surface, and good wire stripping effect

● It can store 99 types of wire stripping files

Specifications

Model
EW-06H-6
Applicable cable type
Coaxial cable, new energy cable and BV wire
Cable size
3 - 15 mm OD
Cutting length
50 - 99999 mm
Cutting depth increment
0.5 mm
Stripping length (side I)
0 - 220 mm
Stripping length (side II)
0 - 130 mm
Stripping length increment
0.3 mm
Max. Stripping layer
6
Driving mode
Servo motor / ball screw/Belt Wire Feeding
Display mode
153mm*85mm touch screen
Rotary blades
imported tungsten steel
Strip blades
imported high speed steel
Productivity
400 - 700 pcs./h
Storage capacity
99
Air pressure
0.4-0.6 Mpa
Power supply
110/220V (50/60 Hz)
Power
2.5 kW
Weight
213 kg
Dimension
1000*600*1350mm
Work environment
-5~45℃
