Feature

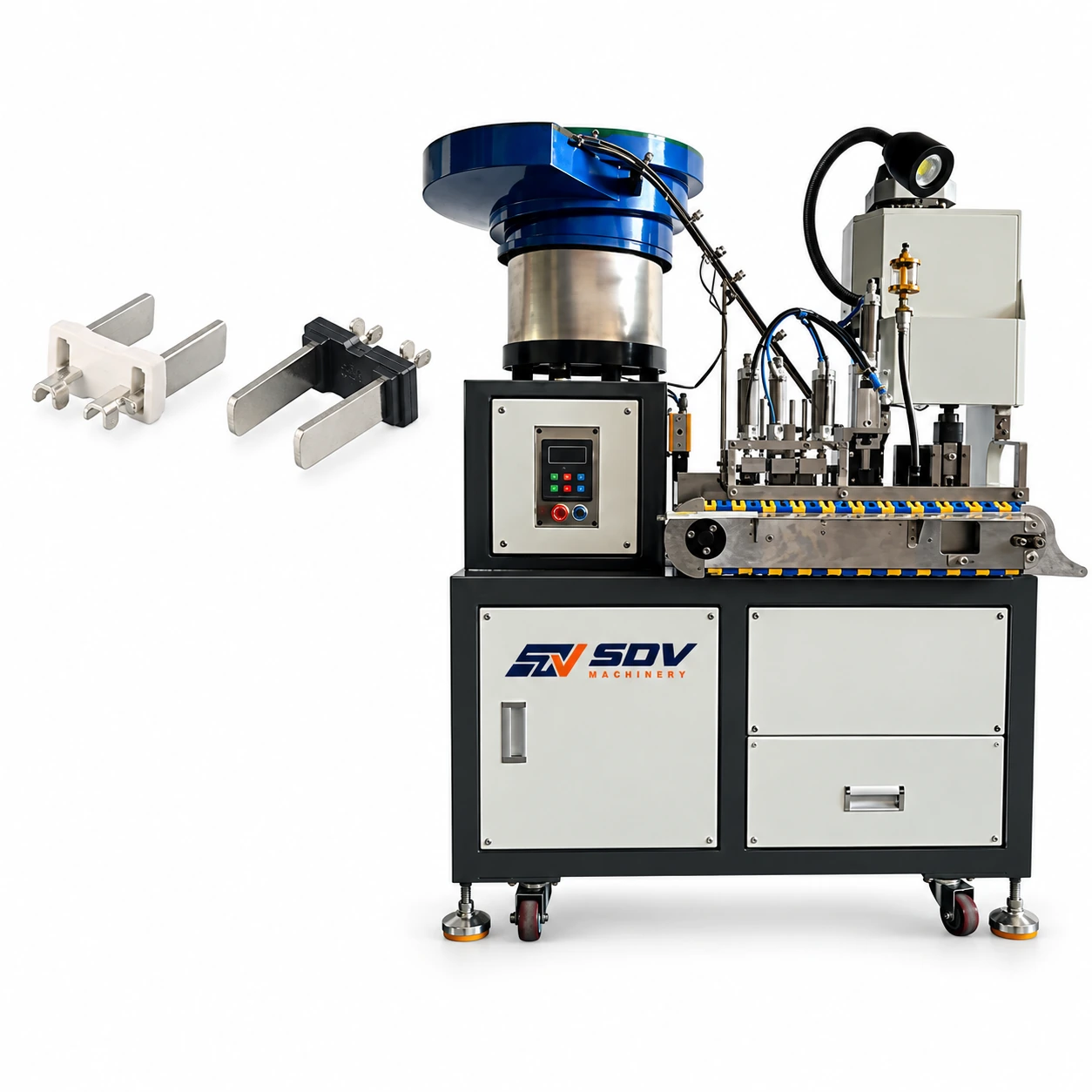

Integrated Strip, Auto-Feed, Crimp & Assembly — One Cycle
Wire stripping, automatic cable feeding, 40KN pin contact crimping, and plug body assembly are completed sequentially in one automated cycle without manual inter-stage handling. At 1,500–2,000 pcs/h this single machine replaces the 3–4 operator workstations required on conventional semi-automatic power cord lines, with automatic zero-return and repositioning between each cycle ensuring consistent assembly geometry.
40KN Impact Crimping Force for Certified Power Cord Applications
Pin crimping at 40KN (4T) impact force ensures full compression of the conductor barrel onto H03VVH2-F and H05VVH2-F conductor strands, delivering consistent contact resistance across the production run. The pneumatic actuation system (0.5–0.8MPa) provides repeatable force delivery cycle-to-cycle — a requirement for power plug assemblies requiring IEC 60884-1, UL 498, or PSE pull-force compliance during product certification.
Dual Voltage, Dual Frequency — Global Factory Deployment
The machine operates on AC110V or AC220V at both 50Hz and 60Hz without modification, making it directly deployable in manufacturing facilities across the United States (120V/60Hz), Japan (100V/60Hz), China (220V/50Hz), and Southeast Asia (220V/50Hz). This eliminates the transformer and frequency converter costs that single-voltage machines incur when exported to secondary market customers.
Application Range
Consumer electronics & charger power cord manufacturing
Phone chargers, laptop adapters, and desktop computer power supplies sold in Type A markets universally use H03VVH2-F or H05VVH2-F parallel twin cable. The EW-4555's 1,500–2,000 pcs/h throughput matches the volume requirements of electronics accessory manufacturers supplying the US, Chinese, and Japanese markets simultaneously.
Home appliance power cord production
Washing machines, air conditioners, rice cookers, and kitchen appliances for Type A markets require H05VVH2-F power cords terminated with flat-pin plugs. The 40KN crimping force ensures the pin-to-conductor joint meets the pull-force requirements of IEC 60884-1 and related national appliance safety standards.
Power strip & extension cord assembly
Extension cords and power strips for US and Chinese markets use identical H03/H05VVH2-F cable and Type A plug constructions. The fully automated cycle eliminates the high-repetition manual crimping that drives labour cost and ergonomic injury risk on conventional extension cord assembly lines.
Industrial & commercial equipment power leads
Office equipment, POS terminals, medical devices, and laboratory instruments sold in NEMA 1-15 markets use Type A detachable power cords where consistent plug assembly quality is critical for UL listing and CE compliance during product certification testing.
